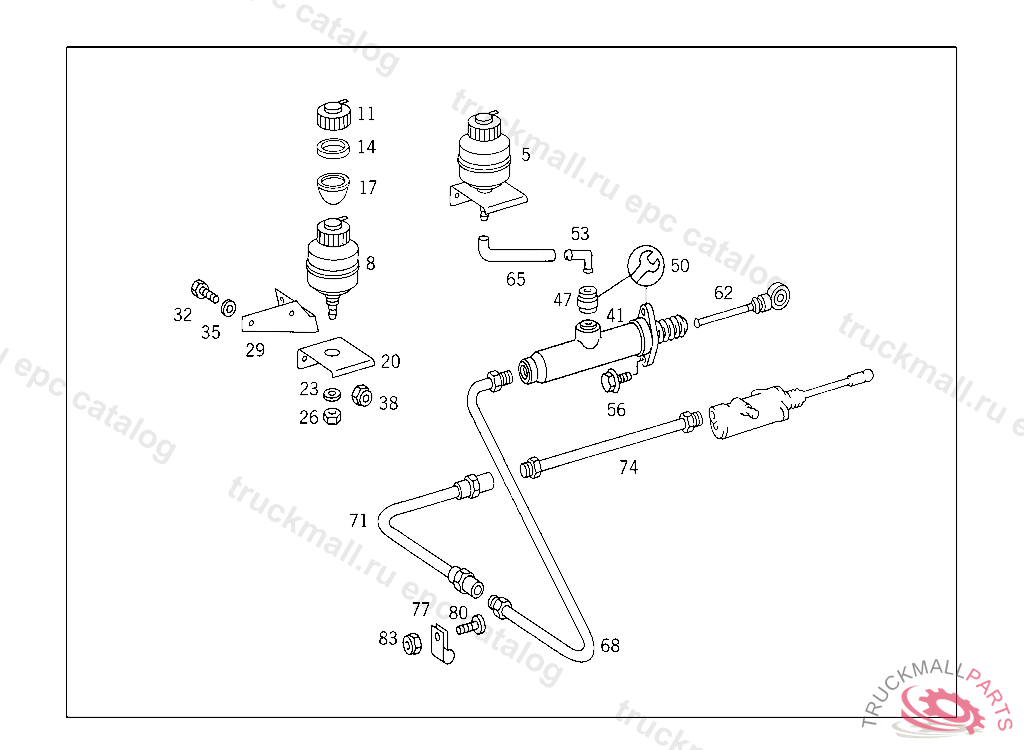

Поз.
Артикул
Описание
5
RESERVOIR (RESERVOIR)
8
RESERVOIR WITH LOCKING CAP
11
FILLER CAP
17
STRAINER
23
WASHER
26
NUT CONTROL ARM TO REAR AXLE
29
BRACKET (RESERVOIR)
32
SCREW RESERVOIR TO BRACKET M 6X1X12
38
NUT PUMP TO BRACKET
41
MASTER CYLINDER , Replaced By: A0012959706
47
PLUG
50
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
53
INTERMEDIATE PIECE , Replaced By: A0002950036
56
SCREW
62
ROD CLUTCH PEDAL
65
HOSE MASTER CYLINDER,OIL TANK,HYDRAULIC LINES
65
BRAKE HOSE , Replaced By: A3844287035
68
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
71
HOSE FROM LINE AT CLUCTH MASTER CYLINDER TO LINE AT CONNECTOR,B 972370
71
HOSE CLUTCH HOSE
71
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
74
LINE FROM HOSE TO CLUTCH SLAVE CYLINDER
74
LINE CLUTCH SLAVE CYLINDER,B 972370
77
CLAMP
77
CLAMP ,K 147121, Replaced By: N000000000319
80
SCREW CABLE TO ALTERNATOR
83
NUT PUMP TO BRACKET
83
NUT HYDRAULIC LINE TO CAB
999
WASHER , Replaced By: N009021005205
999
BALL SOCKET
999
ROD , NOT USED
999
LOCK
