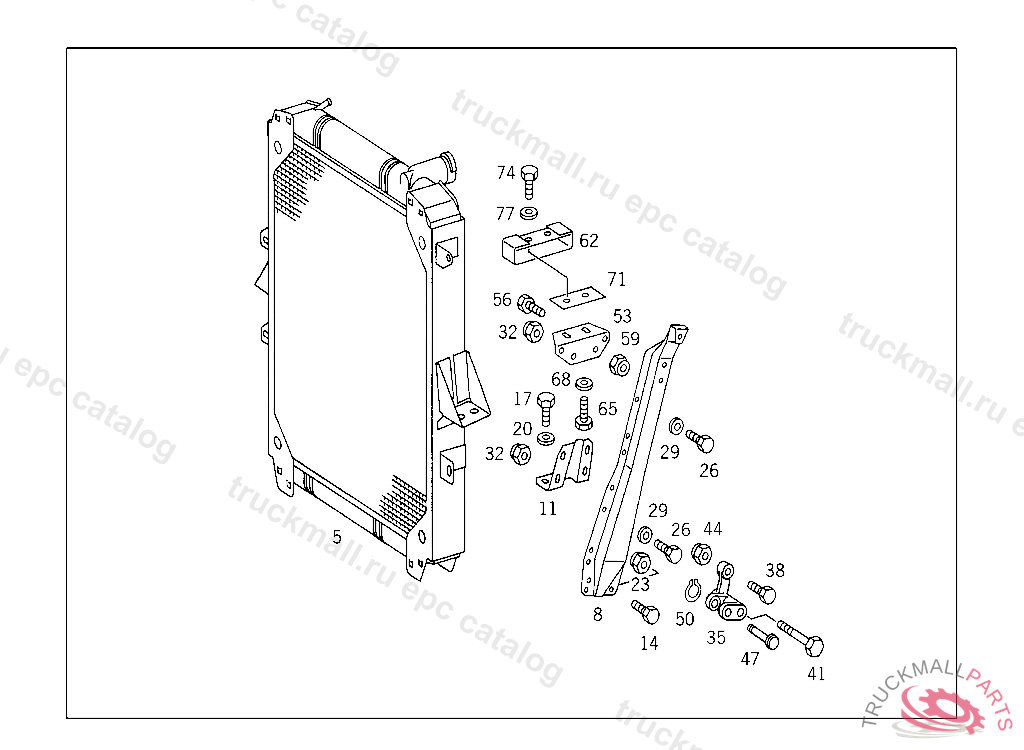

Поз.
Артикул
Описание
5
RADIATOR WATER
5
RADIATOR WATER
5
RADIATOR WATER
5
RADIATOR WATER
8
SUPPORT RADIATOR
11
STAY RIGHT
11
STAY RIGHT
11
STAY LEFT
11
STAY LEFT
14
SCREW BRACKET TO SIDE MEMBER
17
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
20
WASHER SUPPORT TO FRAME,D 127794
23
NUT BRACKET TO SIDE MEMBER
23
NUT BRACKET TO SIDE MEMBER
26
SCREW CROSS MEMBER TO SIDE MEMBERS
26
SCREW , Replaced By: N304017010040
29
WASHER GROUND CABLE
32
NUT BRACKET TO SIDE MEMBER,XB209706
35
BRACKET RIGHT,1D 006005
35
BRACKET LEFT,1D 006005
38
SCREW BRACKET AND SUPPORT TO SIDE MEMBER M 12X55,1D 006005
41
SCREW SPRING CLAMP TO SPRING LEAF NO.3, TO 682 320 72 02, M 12X110
44
NUT BRACKET TO SIDE MEMBER
47
PIN SHOCK ABSORBER TO BRACKET,1D 006005
50
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
53
BRACKET RADIATOR MOUNTING
56
SCREW CROSS MEMBER TO SIDE MEMBERS
56
SCREW , Replaced By: N304017010040
59
NUT BRACKET TO SIDE MEMBER,XB209706
62
RUBBER MOUNTING RADIATOR
62
RUBBER MOUNTING RADIATOR
65
SCREW CROSS MEMBER TO SIDE MEMBERS
68
WASHER GROUND CABLE
71
SHIM RUBBER MOUNTING TO BRACKET
74
SCREW COLD START SYSTEM TO BRACKET
77
WASHER GROUND CABLE
999
WASHER , Replaced By: N009021006208
999
SCREW CLAMP TO BRACKET
999
SEAL RING TOP AND BOTTOM, INSIDE TO 384 501 72 01,74 01,386 501 74 01
