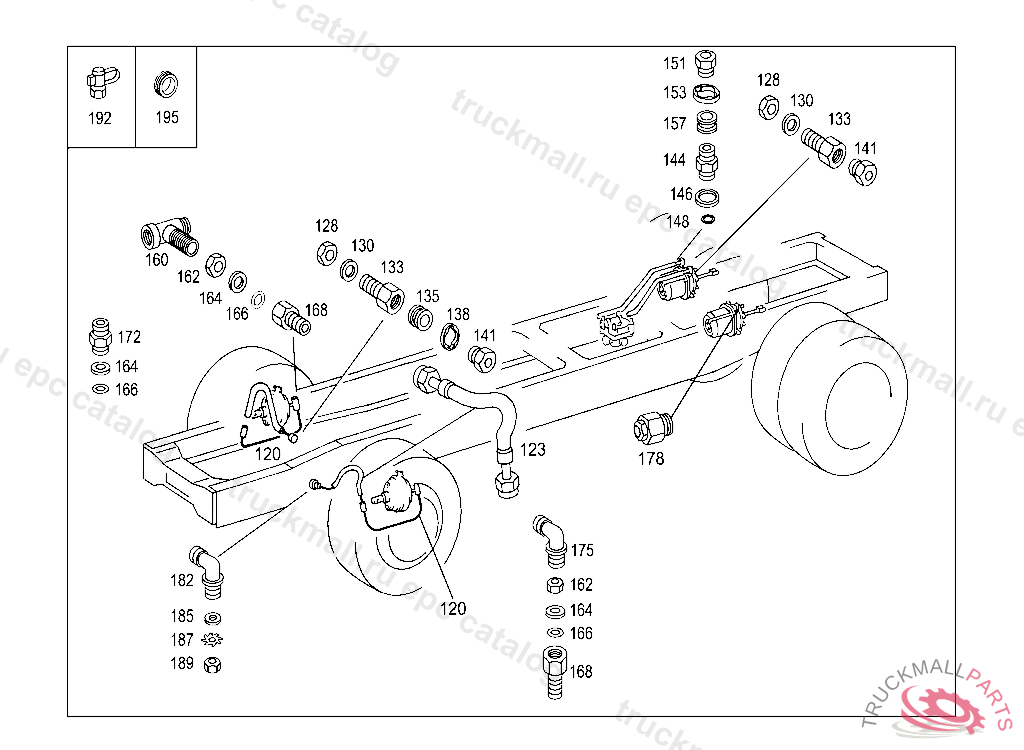

Поз.
Артикул
Описание
123
BRAKE HOSE AT TRISTOP CYLINDER
128
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
130
WASHER SUPPORT TO FRAME,D 127794
133
ADAPTER FITTING TEST CONNECTION
135
SEAL RING , Replaced By: A0009940747
138
LOCK , Replaced By: A0009945448
141
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
141
SNAP RING
144
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
146
THRUST RING LOCKING VALVE
148
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
151
SCREW. UNION SCREW LINE CONNECTION
153
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
157
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
160
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
162
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
162
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
164
THRUST RING CHECK VALVE TO AIR RESERVOIR
164
THRUST RING LOCKING VALVE
166
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
166
O-RING CHECK VALVE TO AIR RESERVOIR
168
FITTING 2/2-WAY VALVE TO BRACKET
168
ADAPTER FITTING LINE CONNECTION TO ENGINE
175
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
178
FITTING (COMBINATION CYLINDER),REAR AXLE
182
FITTING , Replaced By: A0009907871
182
ELBOW FITTING
185
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
187
TOOTHED WASHER SENDER UNIT TO BRACKET
189
NUT BRACKET TO SIDE MEMBER
192
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
192
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
192
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
192
TEST CONNECTION
195
GROMMET BATTERY CABLE TO SIDE MEMBER,LEFT
