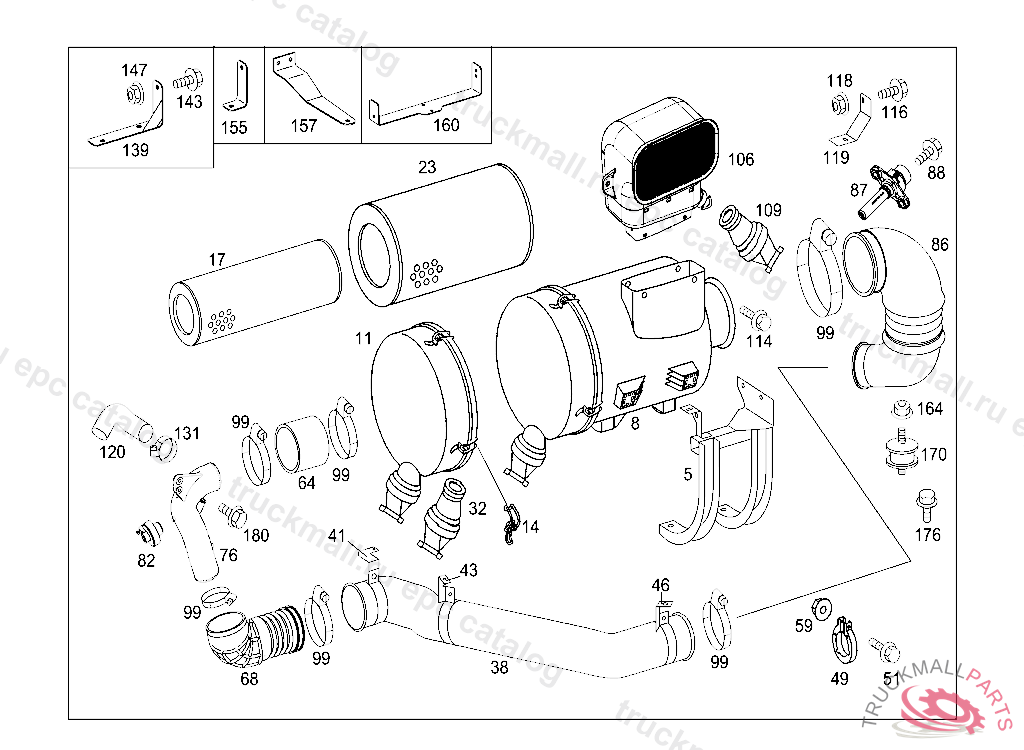

Поз.
Артикул
Описание
5
8
AIR CLEANER
8
AIR CLEANER"MANN" - MATERIAL PLASTICO,D 159023
11
COVERTO 376 090 47 01
14
FASTENERTO 376 090 96 01
17
FILTER ELEMENT SAFETY CARTRIDGE
23
FILTER ELEMENT
32
VALVE
38
41
43
46
49
CLAMP TAIL PIPE
51
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
64
HOSE HOSE TO RADIATOR,D 397002
68
HOSE
76
82
SWITCH (MAINTENANCE SWITCH)
86
99
CLAMP , Replaced By: A0059970690
99
CLAMP HOSE FASTENING 140-160 MM,K 583005
106
109
VALVETO 688 094 72 02, 73 02
114
SCREW BRACKET TO CAB REAR PANEL M 8X20
116
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
118
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
119
120
131
CLAMP25-40X13 MM
139
143
SCREW , Replaced By: N910143008002
143
SCREW BRACKET TO SIDE MEMBER M10X35
143
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
143
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
143
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
147
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
155
157
160
164
NUT HORN TO BRACKET M8
164
NUT , Replaced By: N913023010002
164
NUT BRACKET TO SIDE MEMBER M12X1.5
170
RUBBER BUFFER EXHAUST MUFFLER
176
SCREW , Replaced By: N910143008002
180
SCREW BRACKET TO CYLINDER CRANKCASE M 12X80
