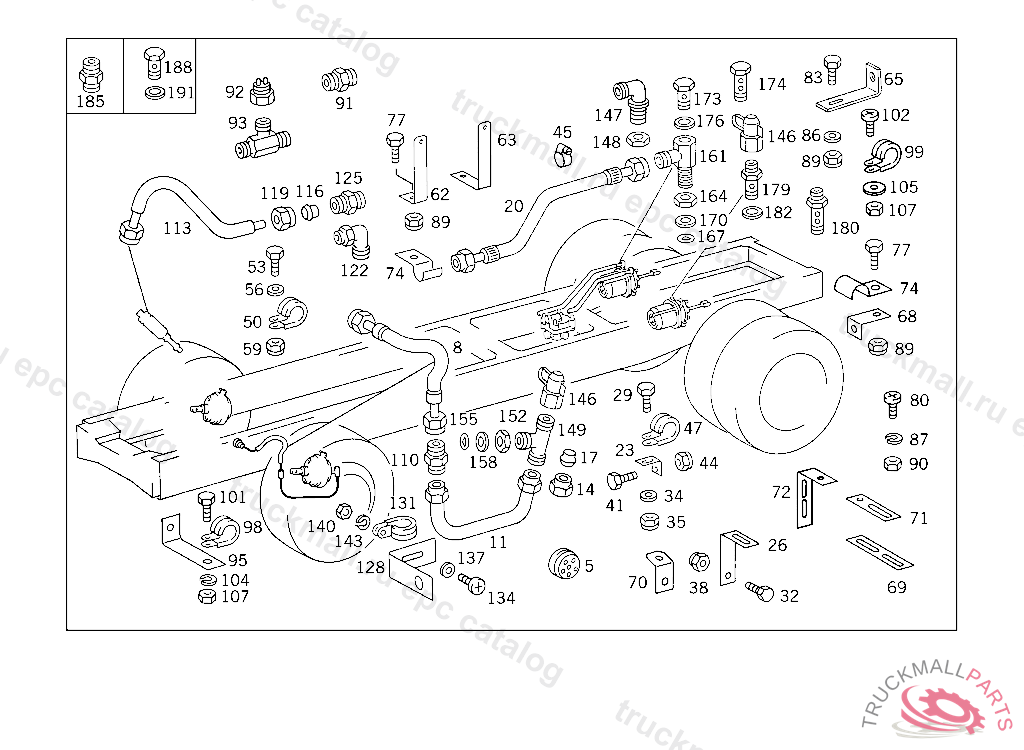

Поз.
Артикул
Описание
5
GROMMET
5
GROMMET , Replaced By: A3219970081
8
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
8
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
8
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
8
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
11
LINE LEFT FRONT WHEEL BRAKE CYLINDER 12X1 MM
11
LINE RIGHT FRONT WHEEL BRAKE CYLINDER 12X1 MM
14
UNION NUT LINE CONNECTION, Replaced By: N000000006239
17
GLAND , Replaced By: A0019901967
20
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
20
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
23
BRACKET , Replaced By: A3812950440
23
BRACKET , Replaced By: A3464295840
26
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
29
SCREW CLAMP TO BRACKET
32
SCREW BRACKET TO LEFT SIDE MEMBER
34
WASHER BRACKET TO INJECTION PUMP
35
NUT , Replaced By: N913004006001
38
NUT , Replaced By: N910113014001
41
SCREW LINES TO BRACKET
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
45
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
45
CLAMP HOSE TO FITTING AND TO OIL TANK
47
CLAMP LINE MOUNTING
47
CLAMP , Replaced By: A3829950701
50
CLAMP LINE MOUNTING
50
CLAMP , Replaced By: A3829950701
68
BRACKET BATTERY CABLE MOUNTING
71
BRACKET AT CROSS MEMBER
74
CLAMP , Replaced By: A6739950001
77
SCREW BRACKET TO BUMPER,LEFT M 10X25
77
SCREW BRACKET TO SIDE MEMBER
80
SCREW CONTROL UNIT
80
SCREW CONTROL UNIT
86
WASHER PLUG SOCKET TO BRACKET
86
WASHER PLUG SOCKET TO BRACKET
87
LOCK WASHER CABLE TO FUSE BOX
87
LOCK WASHER CABLE TO FUSE BOX
89
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
90
NUT
90
NUT
95
BRACKET LINE MOUNTING
95
BRACKET , Replaced By: A3454288540
98
CLAMP BRAKE HOSE BRACKET
98
CLAMP PEDAL BEARING BRACKET,1B 961216
98
CLAMP BATTERY CABLE TO BRACKET
99
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
101
SCREW CLAMP TO BRACKET
102
SCREW CONTROL UNIT
104
LOCK WASHER CABLE TO FUSE BOX
105
WASHER , Replaced By: N009021006208
107
NUT
110
CONNECTION FITTING
116
GLAND , Replaced By: A0019901667
119
UNION NUT
122
FITTING , Replaced By: A0019909871
125
CONNECTION FITTING ,TB108828
128
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
134
SCREW CONTROL UNIT
137
WASHER PLUG SOCKET TO BRACKET
140
NUT
143
LOCK WASHER CABLE TO FUSE BOX
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION
146
TEST CONNECTION
146
TEST CONNECTION
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
146
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
146
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
146
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
149
T-FITTING DIAPHRAGM CYLINDER,CONNECTION "1"
149
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
152
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
155
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
158
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
161
T-FITTING AIR RESERVOIR,CONNECTION: "31"
161
T-FITTING TRAILER CONTROL VALVE,CONNECTION: "1"
164
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
167
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
THRUST RING LOCKING VALVE
173
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
176
SEAL RINGTO 006 997 00 72
179
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
182
SEAL RINGTO 006 997 00 72
