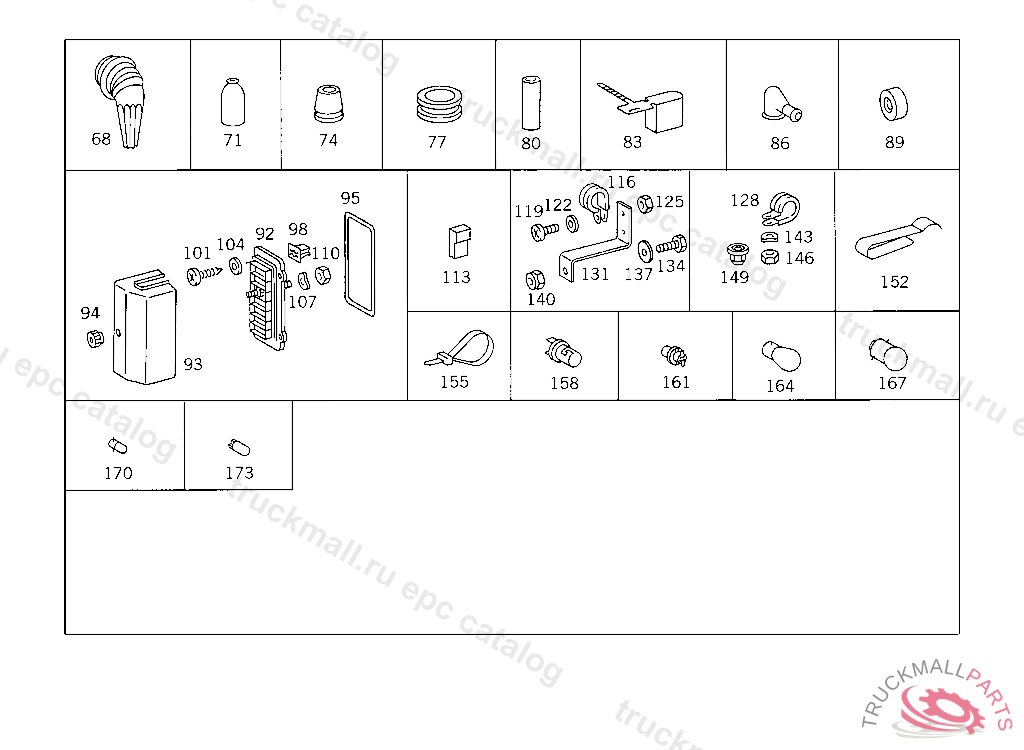

Поз.
Артикул
Описание
68
INSULATING HOSE BRACKET TO FIRE WALL,D 013019
71
GROMMET
74
GROMMET
77
GROMMET LINE MOUNTING 19/13 MM
77
GROMMET GROUND CABLE
77
GROMMET TAIL LAMP, DISCONTINUED,PART IS NO LONGER REQUIRED
80
GROMMET3.0 MM
80
GROMMET5.0 MM
80
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
83
BOOT ALTERNATOR
86
BOOT HEATER PLUGS
86
BOOT , Replaced By: A0005463335
89
WASHER BRACKET TO LEFT SIDE MEMBER
92
PLUG (PLUG HOUSING)
92
PLUG HOUSING. PLUG (PLUG HOUSING)
93
CAP MEASURING PLATE IN CAB
94
NUT
95
SEALING RING. SEAL RING PLUG HOUSING TO FIRE WALL
98
TREENAIL PLUG HOUSING TO FIRE WALL
101
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
104
WASHER FUSE TO FUSE BOX
107
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
110
NUT
113
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
113
BOOT PIN BUSHING
116
CLAMP CABLE HARNESS TO BRACKET
116
CLAMP CABLE HARNESS MOUNTING
116
CLAMP CABLE HARNESS MOUNTING 20/15
116
CLAMP CABLE HARNESS MOUNTING 20/15
116
CLAMP STAY TO BRACKET
116
CLAMP STAY TO BRACKET
116
CLAMP ENGINE AND FRAME
116
CLAMP LINE MOUNTING
116
CLAMP LINES TO BRACKET
116
CLAMP DELIVERY AND SUCTION LINES TO FRAME
116
CLAMP ELECTRIC CABLE TO ALTERNATOR 15/12
116
CLAMP ELECTRIC CABLE TO ALTERNATOR 15/12
116
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
119
SCREW , Replaced By: N000000001146
122
WASHER PLUG SOCKET TO BRACKET
128
CLAMP ELECTRIC CABLE TO FIRE WALL
128
CLAMP HOSE TO FLANGE AND TO VALVE
128
CLAMP LINES TO BRACKET
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
BRACKET PIPING
131
BRACKET PIPING
134
SCREW LINES TO BRACKET
134
SCREW , Replaced By: N304017010040
134
SCREW , Replaced By: N304017010040
137
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
137
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
140
NUT , Replaced By: N910113010000
140
NUT , Replaced By: N910113010000
143
SPRING WASHER CABLE TO ALTERNATOR
146
NUT BATTERY CASE
146
NUT
149
NUT COVERING TO CAB FIRE WALL
152
CLAMP ELECTRIC CABLE TO FRAME SIDE MEMBER
152
CLAMP ELECTRIC CABLE TO FRAME SIDE MEMBER
155
LOOM TIE160 MM
155
LOOM TIE LINE MOUNTING
155
LOOM TIE ELECTRIC CABLE MOUNTING
155
LOOM TIE , Replaced By: A3459977390
155
LOOM TIE
155
LOOM TIE ELECTRIC CABLE MOUNTING
155
LOOM TIE
158
LAMP SOCKET FRONT END HEATING
161
LAMP SOCKET FLAME STARTING SYSTEM
161
LAMP SOCKET DIFFERENTIAL LOCK TELL-TALE LAMP
164
BULB , Replaced By: N072601024192
167
BULB , Replaced By: N072601024704
170
BULB TELL-TALE LAMP
170
BULB2W
173
BULB , Replaced By: A3885447293
173
BULB HAZARD WARNING LIGHT SWITCH
173
BULB , Replaced By: A6885447093
999
LAMP SOCKET P.T.O. TELL-TALE LAMP 12V/1.2W
