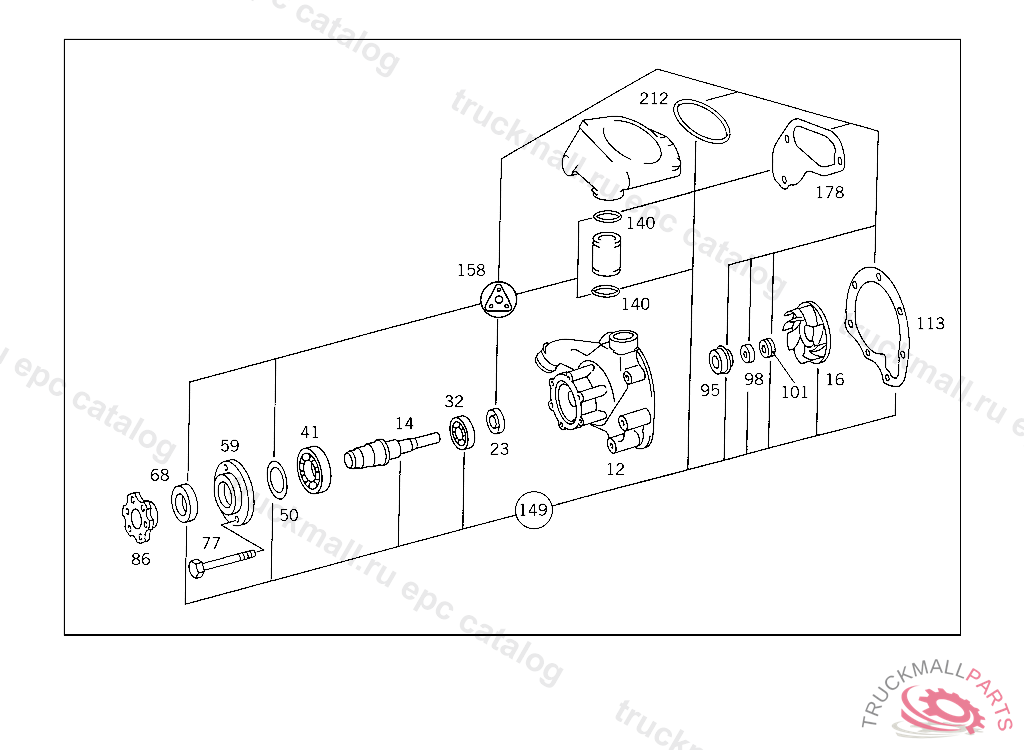

Поз.
Артикул
Описание
12
HOUSING
14
SHAFT
14
SHAFT , Replaced By: A3662010205
16
IMPELLER ,781819
23
SEAL RING
23
SEAL RING
23
SEAL RING
32
GROOVED BALL BEARING , FROM ENGINE 937666-999999 YEAR OF MANUFACTURE 1989-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
41
GROOVED BALL BEARING , FROM ENGINE 937666-999999 YEAR OF MANUFACTURE 1989-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
50
SEAL RING WATER PUMP
59
SEAL HOLDER
59
SEAL HOLDER
68
SEAL RING
68
SEAL RING
77
SCREW LEVER TO THROTTLE VALVE SHAFT
86
HUB
86
HUB
95
SEAL WITH THRUST RING AND BOOT
95
SEAL , Replaced By: A0002019919
95
SEAL , Replaced By: A0002015719
95
SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002018019
95
SEAL , Replaced By: A0002016719
95
SEAL , Replaced By: A0002019219
95
SEAL , Replaced By: A0012011719
95
SEAL , Replaced By: A0012011819
95
SEAL , Replaced By: A0012011919
95
SEAL , Replaced By: A0012011919
95
SEAL , Replaced By: A0012012619
98
THRUST RINGTO 000 201 66 19/72 19
101
BOOTTO 000 201 66 19,000 201 72 19
113
GASKET WATER PUMP TO CYLINDER CRANKCASE
113
GASKET , Replaced By: A3642010280
140
SEAL RING
149
IMPELLER , Replaced By: A3762000204
149
IMPELLER , Replaced By: A3442000004
149
IMPELLER PARTS KIT
158
GASKET KIT , Replaced By: A3762000301
158
GASKET KIT , Replaced By: A3642001801
158
GASKET KIT WATER PUMP
178
GASKET THERMOSTAT HOUSING TO CYLINDER HEAD
178
GASKET , Replaced By: A3662030280
212
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
212
SEAL RING , Replaced By: A0249972848
212
SEAL RING AT WATER PUMP
999
LINE AIR COMPRESSOR COOLING WATER OUTLET
999
LINE COOLING WATER INLET FOR AIR COMPRESSOR
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
SEAL RING SOLENOID VALVE A 18X24
999
SEAL RING LINE CONNECTION
999
HOSE BREATHER LINE
999
HOLLOW SCREW
999
HOLLOW SCREW OIL LINE TO TRANSMISSION
999
CLAMP HOSE TO FITTING AND TO OIL TANK
