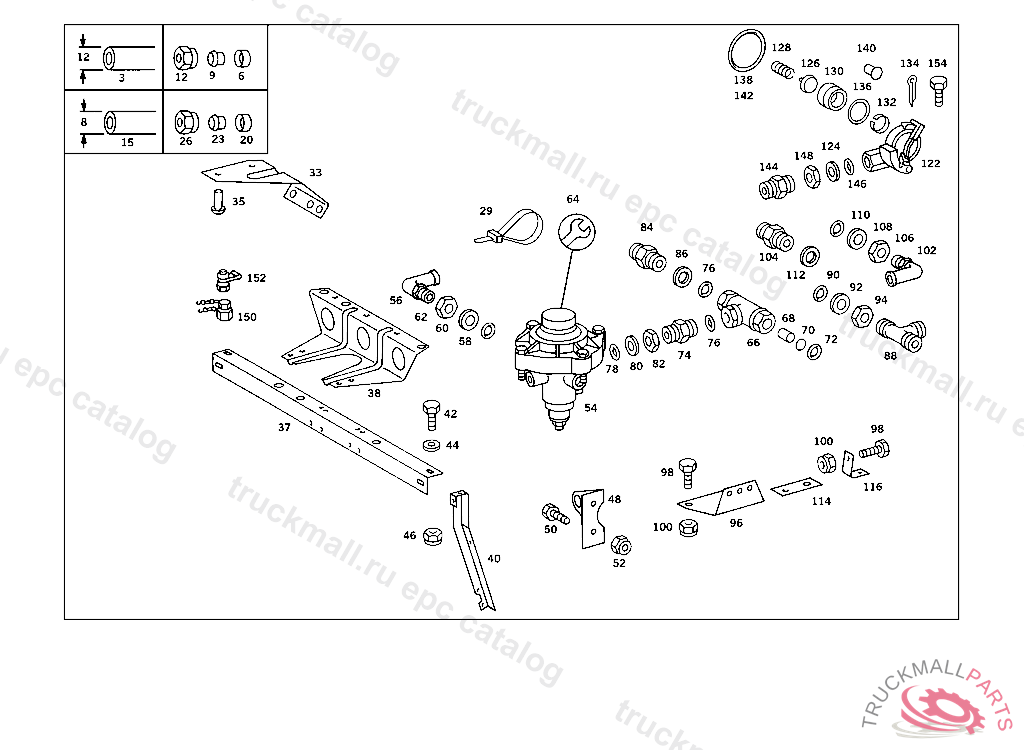

Поз.
Артикул
Описание
3
HOSE , Replaced By: A0009872827
3
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
6
BUSHING , Replaced By: N915062009000
6
SLEEVE LINE CONNECTION
9
GLAND , Replaced By: A0019901967
9
SEAL CONE LINE CONNECTION
12
UNION NUT LINE CONNECTION
12
UNION NUT LINE CONNECTION, Replaced By: N000000006239
12
UNION NUT , Replaced By: N915017012100
15
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
SLEEVE LINE CONNECTION
20
SLEEVE , Replaced By: N915062006000
23
GLAND LINE CONNECTION
26
UNION NUT , Replaced By: N915017008100
26
UNION NUT LINE CONNECTION
29
LOOM TIE LINE MOUNTING
29
LOOM TIE LINE MOUNTING 280 MM
33
BRACKET , Replaced By: A3874292140
33
BRACKET AT FRAME
35
RIVET BRACKET TO FRAME
35
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
37
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
37
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
38
SUPPORT , Replaced By: A3874320916
38
SUPPORT , Replaced By: A3874321616
38
SUPPORT BRAKE LINE COUPLINGS
38
SUPPORT , Replaced By: A6214320116
40
ANGLE , Replaced By: A6214320017
40
ANGLE , Replaced By: A6214320117
40
ANGLE RIGHT
40
ANGLE LEFT
42
SCREW , Replaced By: N304017008021
42
SCREW PIPE CLAMP
42
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
44
WASHER , Replaced By: N000125008443
44
WASHER EXHAUST MUFFLER TO STRAP
46
NUT , Replaced By: N910113010000
46
NUT STRAP TO BRACKET
46
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
46
NUT , Replaced By: N913004008001
48
BRACKET (REAR CROSS MEMBER)
50
SCREW BRACKET TO CROSS CONNECTION STRUT
50
SCREW , Replaced By: N304017008034
52
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
52
NUT , Replaced By: N913004008001
54
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
56
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
56
FITTING ,4 667210
58
O-RING CHECK VALVE TO AIR RESERVOIR
60
THRUST RING CHECK VALVE TO AIR RESERVOIR
60
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
62
NUT CHECK VALVE TO AIR RESERVOIR
64
REPAIR KIT , Replaced By: A0014306160
64
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
66
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
66
VALVE TWO-WAY VOSS
68
VALVE BODYTO 002 429 95 44
70
BALLTO 003 429 22 44
72
GASKETTO 003 429 22 44
74
FITTING SHUTTLE VALVE,CONNECTION: "20"
74
FITTING , Replaced By: A0019972372
76
SEAL RING LINE CONNECTION
78
O-RING CHECK VALVE TO AIR RESERVOIR
80
THRUST RING CHECK VALVE TO AIR RESERVOIR
80
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
82
NUT CHECK VALVE TO AIR RESERVOIR
84
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
84
FITTING , Replaced By: A0009970171
86
SEAL RING LINE CONNECTION
88
T-FITTING CONNECTION: 12, 10/20 FROM CHASSIS 4 270414,50/60 FROM CHASSIS 4 270290
90
O-RING CHECK VALVE TO AIR RESERVOIR
92
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
92
THRUST RING CHECK VALVE TO AIR RESERVOIR
94
NUT CHECK VALVE TO AIR RESERVOIR
96
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300610
96
BRACKET
96
BRACKET
96
BRACKET , Replaced By: A3934311340
98
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
98
SCREW PIPE CLAMP
98
SCREW , Replaced By: N304017008027
98
SCREW , Replaced By: N304017008021
100
NUT , Replaced By: N910113010000
100
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
100
NUT , Replaced By: N913004008001
100
NUT STRAP TO BRACKET
102
FITTING ,4 667210
104
FITTING DELIVERY LINE TO PUMP
106
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
108
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
SEAL RING
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
114
SHIM BRACKET TO FRAME
114
BRACKET , Replaced By: A3353170884
116
BRACKET FUEL LINE TO BELL HOUSING
116
BRACKET , Replaced By: A6454310740
122
BRAKE LINE COUPLING AT REAR CROSS MENBER
122
BRAKE LINE COUPLING AT REAR CROSS MENBER
122
BRAKE LINE COUPLING , Replaced By: A0004297530
122
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
THRUST RING CHECK VALVE TO AIR RESERVOIR
124
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
126
VALVE DISCTO 000 429 48 30
128
SPRINGTO 000 429 16 30
130
GASKETTO 000 429 16 30
132
SNAP RINGTO 000 429 16 30
134
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
136
SEAL RINGTO 000 429 16 30
138
SEAL RINGTO 000 429 16 30
140
PIN
142
SEAL RINGTO 000 429 75 30
144
FITTING SHUTTLE VALVE
144
FITTING , Replaced By: A0029971372
146
SEAL RING LINE CONNECTION
148
NUT BRACKET TO SIDE MEMBER
150
TEST CONNECTION BULKHEAD FITTING
150
TEST CONNECTION , Replaced By: A0004313031
152
PLUG
154
SCREW PIPE CLAMP
154
SCREW , Replaced By: N304017008021
999
VALVE CONE , Replaced By: A0004290391
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
REPAIR KITKNORR
999
PISTONVOSS
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
REPAIR KITWABCO
999
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
999
FITTING , Replaced By: A0009907771
999
NUT END PIECE TO EXHAUST PIPE
