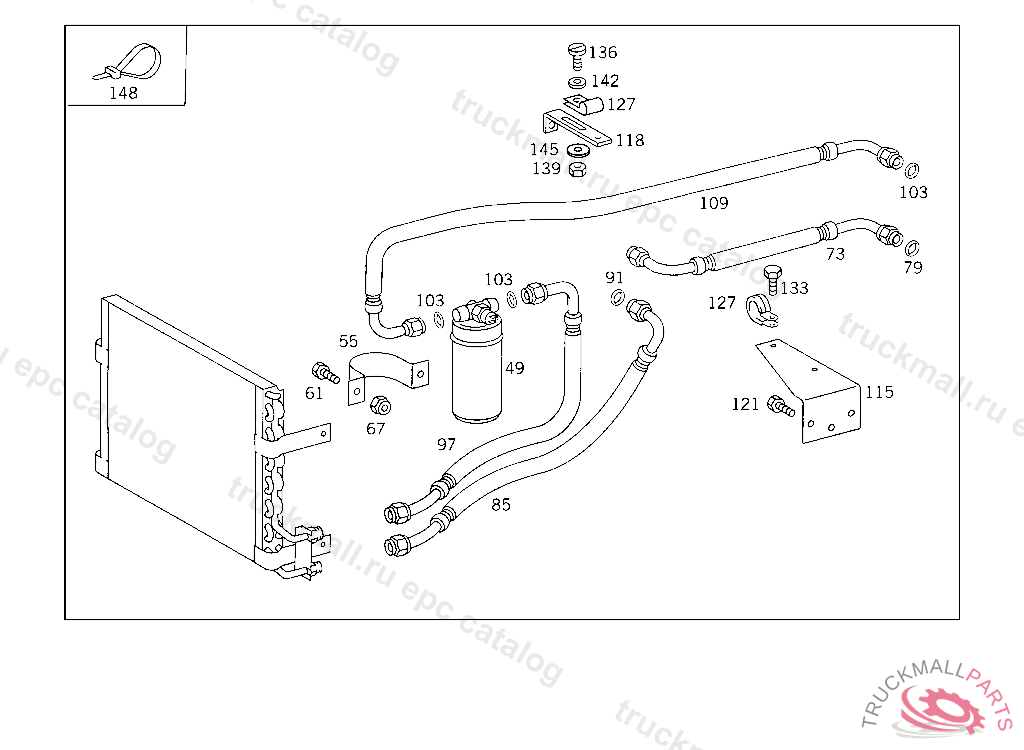

Поз.
Артикул
Описание
49
DEHYDRATOR
55
CLAMP AT DEHYDRATOR
61
SCREW BRACKET TO AIR CLEANER CONSOLE
67
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
HOSE FROM COMPRESSOR TO EVAPORATOR
79
SEAL RING FROM COMPRESSOR TO EVAPORATOR
85
HOSE FROM COMPRESSOR TO CONDENSER
91
SEAL RING FROM COMPRESSOR TO CONDENSER
97
HOSE FROM CONDENSER TO DEHYDRATOR
103
SEAL RING FROM CONDENSER TO DEHYDRATOR
109
HOSE FROM DEHYDRATOR TO EVAPORATOR
115
BRACKET HOSE TO BASE FRAME BRACKET
118
BRACKET , Replaced By: A3184280240
118
BRACKET FUEL LINE
121
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
127
CLAMP CABLE HARNESS MOUNTING
127
CLAMP BRAKE HOSE BRACKET
127
CLAMP DELIVERY AND SUCTION LINES TO FRAME
133
SCREW CLAMP TO BRACKET
136
SCREW FUSE BOX TO APPARATUS PLATE
139
NUT PUMP TO BRACKET
139
NUT
142
WASHER PLUG SOCKET TO BRACKET
145
WASHER , Replaced By: N009021006208
148
LOOM TIE ELECTRIC CABLE MOUNTING
148
LOOM TIE LINE MOUNTING
148
LOOM TIE , Replaced By: A3459977390
