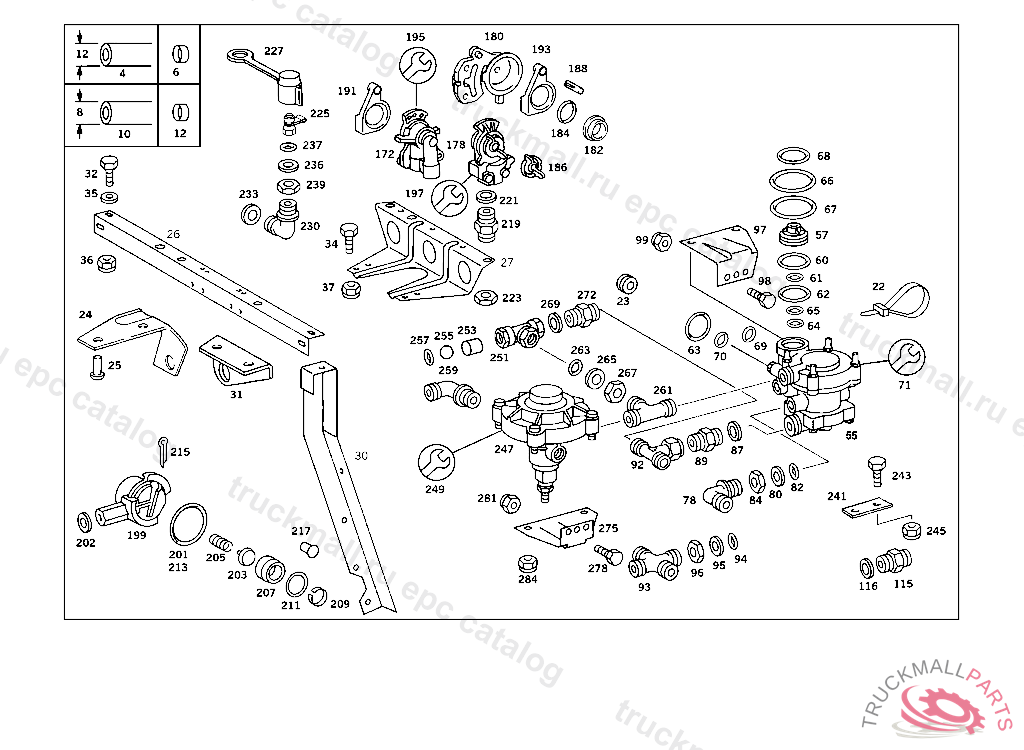

Поз.
Артикул
Описание
4
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
4
HOSE , Replaced By: A0009872827
6
SLEEVE LINE CONNECTION
6
BUSHING , Replaced By: N915062009000
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
12
SLEEVE LINE CONNECTION
12
SLEEVE , Replaced By: N915062006000
22
LOOM TIE LINE MOUNTING
22
LOOM TIE LINE MOUNTING 280 MM
23
GROMMET
24
BRACKET AT FRAME
24
BRACKET AT FRAME
24
BRACKET , Replaced By: A3874292040
24
BRACKET , Replaced By: A3874292140
25
RIVET BRACKET TO FRAME
25
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
26
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
26
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
27
SUPPORT , Replaced By: A6214320116
27
SUPPORT , Replaced By: A3874321616
27
SUPPORT , Replaced By: A3874320916
27
SUPPORT BRAKE LINE COUPLINGS
30
ANGLE RIGHT
30
ANGLE LEFT
30
ANGLE , Replaced By: A6214320117
30
ANGLE , Replaced By: A6214320017
31
BRACKET (REAR CROSS MEMBER)
31
BRACKET (REAR CROSS MEMBER)
32
SCREW PIPE CLAMP
32
SCREW , Replaced By: N304017008021
34
SCREW , Replaced By: N304017008034
34
SCREW BRACKET TO CROSS CONNECTION STRUT
34
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
35
WASHER EXHAUST MUFFLER TO STRAP
35
WASHER , Replaced By: N000125008443
36
NUT , Replaced By: N913004008001
36
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
37
NUT STRAP TO BRACKET
37
NUT , Replaced By: N910113010000
55
BRAKE VALVE , IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING, Replaced By: A0024314005
55
BRAKE VALVE , Replaced By: A0024314805
55
BRAKE VALVE , Replaced By: A0024314905
55
BRAKE VALVE (TRAILER CONTROL VALVE) WABCO,4 412021 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
55
BRAKE VALVE (TRAILER CONTROL VALVE) KNORR, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
55
BRAKE VALVEGRAU, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
55
BRAKE VALVE (TRAILER CONTROL VALVE) GRAU,4 412021
55
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0034313405
55
BRAKE VALVE (TRAILER CONTROL VALVE) BOSCH,4 412021 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
55
BRAKE VALVE (TRAILER CONTROL VALVE) KNORR,4 412021
55
BRAKE VALVEWABCO, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
57
VALVE SEATTO GRAU
57
VALVE SEATTO 001 431 74 05,GRAU 355 029 001
60
GASKET34X2X6 MM,GRAU
60
SEAL RING64.77X2.62,TO GRAU
61
SEAL RING18X2.5,TO GRAU
62
SEAL RING44.2X3,TO GRAU
63
SEAL RING30X2,TO GRAU
64
SEAL RING7X1.5,TO GRAU
65
SEAL RING22.3X2.4 MM,GRAU
65
SEAL RING21.3X2.4 TO 001 431 74 05,
66
SEAL RING90X3,TO GRAU
67
SEAL RING100X3,TO GRAU
68
SEAL RING39.2X3 TO 001 431 74 05,
68
SEAL RINGTO GRAU
69
SEAL RING9X1.5,TO GRAU
70
SEAL RING23.47X2.62,TO GRAU
71
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
71
REPAIR KITTO KNORR
71
REPAIR KIT VALVE SEAT KNORR
71
REPAIR KITTO WABCO
71
GASKET KIT SEAL RING TO 001 431 67 05,BOSCH 061 214
71
REPAIR KIT VALVE DISC TO 001 431 67 05,BOSCH 061 214
71
REPAIR KITTO 001 431 67 05, BOSCH 061 010
71
REPAIR KITTO GRAU
71
REPAIR KIT , Replaced By: A0024301860
71
REPAIR KIT , Replaced By: A0004301109
71
REPAIR KIT , Replaced By: A0014304760
78
ELBOW FITTING
80
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
82
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
84
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
87
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
FITTING , Replaced By: A0029979572
89
FITTING RELAY VALVE,CONNECTION: "40",5 359430
92
T-FITTING
93
CROSS FITTING
94
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
95
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
96
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
97
BRACKET ,4 667210
97
BRACKET
97
BRACKET TRAILER CONTROL VALVE
97
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3894300010
97
BRACKET , Replaced By: A3894300110
97
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300710
98
SCREW , Replaced By: N304017008021
98
SCREW , Replaced By: N304017008027
98
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
98
SCREW PIPE CLAMP
99
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
99
NUT , Replaced By: N913004008001
115
FITTING DELIVERY LINE TO PUMP
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
172
BRAKE LINE COUPLING SUPPLY, RED
172
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
172
BRAKE LINE COUPLING SUPPLY, RED
172
BRAKE LINE COUPLING SUPPLY, RED
172
BRAKE LINE COUPLING SUPPLY, RED
172
BRAKE LINE COUPLING , Replaced By: A0004297830
178
BRAKE LINE COUPLING , Replaced By: A0004297930
178
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
178
BRAKE LINE COUPLING BRAKE,YELLOW KNORR
178
BRAKE LINE COUPLING BRAKE,YELLOW GRAU
178
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
180
COVERTO 000 429 49 30
182
BRAKE LINE COUPLINGTO 000 429 38 30
182
SEAL RING , Replaced By: A0004296930
184
SEAL RINGTO 000 429 38 30
186
COVERTO 000 429 51 30,4 434235
188
GROOVED PINTO 000 429 51 30,4 434235
191
COVER SUPPLY, RED "WABCO"
193
COVER"WABCO", NOT USED
195
REPAIR KIT , TO 000 429 49 304 434235
195
REPAIR KITTO 000 429 63 30
195
REPAIR KITTO 000 429 78 30,4 434236
195
REPAIR KITTO 000 429 37 30
197
REPAIR KIT"KNORR"
199
BRAKE LINE COUPLING AT REAR CROSS MENBER
199
BRAKE LINE COUPLING AT REAR CROSS MENBER
199
BRAKE LINE COUPLING AT REAR CROSS MENBER
199
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
199
BRAKE LINE COUPLING , Replaced By: A0004297530
201
SEAL RINGTO 000 429 75 30
202
THRUST RING CHECK VALVE TO AIR RESERVOIR
202
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
203
VALVE DISCTO 000 429 48 30
205
SPRINGTO 000 429 16 30
207
GASKETTO 000 429 16 30
209
SNAP RINGTO 000 429 16 30
211
SEAL RINGTO 000 429 16 30
213
SEAL RINGTO 000 429 16 30
215
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
217
PIN
219
FITTING BRAKE LINE COUPLING TO BRACKET
219
FITTING , Replaced By: A0029971372
219
FITTING SHUTTLE VALVE
221
SEAL RING LINE CONNECTION
221
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
223
NUT BRACKET TO SIDE MEMBER
225
TEST CONNECTION
225
TEST CONNECTION BULKHEAD FITTING
225
TEST CONNECTION , Replaced By: A0004313031
225
TEST CONNECTION , Replaced By: A0004312931
227
PLUG
230
FITTING ,4 667210
230
FITTING DELIVERY LINE TO PUMP
233
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
236
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
237
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
237
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
239
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
241
SHIM BRACKET TO FRAME
241
BRACKET FUEL LINE TO BELL HOUSING
241
BRACKET , Replaced By: A6454310740
241
BRACKET , Replaced By: A3353170884
243
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
245
NUT END PIECE TO EXHAUST PIPE
247
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
249
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
249
REPAIR KIT , Replaced By: A0014306160
251
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
251
VALVE TWO-WAY VOSS
253
VALVE BODYTO 002 429 95 44
255
BALLTO 003 429 22 44
257
GASKETTO 003 429 22 44
259
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
259
FITTING , Replaced By: A0009907771
261
T-FITTING ,4 412020
261
T-FITTING
263
O-RING CHECK VALVE TO AIR RESERVOIR
265
THRUST RING CHECK VALVE TO AIR RESERVOIR
265
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
267
NUT CHECK VALVE TO AIR RESERVOIR
269
SEAL RING LINE CONNECTION
272
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
272
FITTING , Replaced By: A0009970171
275
BRACKET , Replaced By: A3934311340
275
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300610
275
BRACKET
275
BRACKET
275
BRACKET
278
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
278
SCREW PIPE CLAMP
278
SCREW , Replaced By: N304017008021
278
SCREW , Replaced By: N304017008027
281
NUT , Replaced By: N913004008001
281
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
284
NUT STRAP TO BRACKET
284
NUT , Replaced By: N910113010000
999
PLUG TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
