Поз.
Артикул
Описание

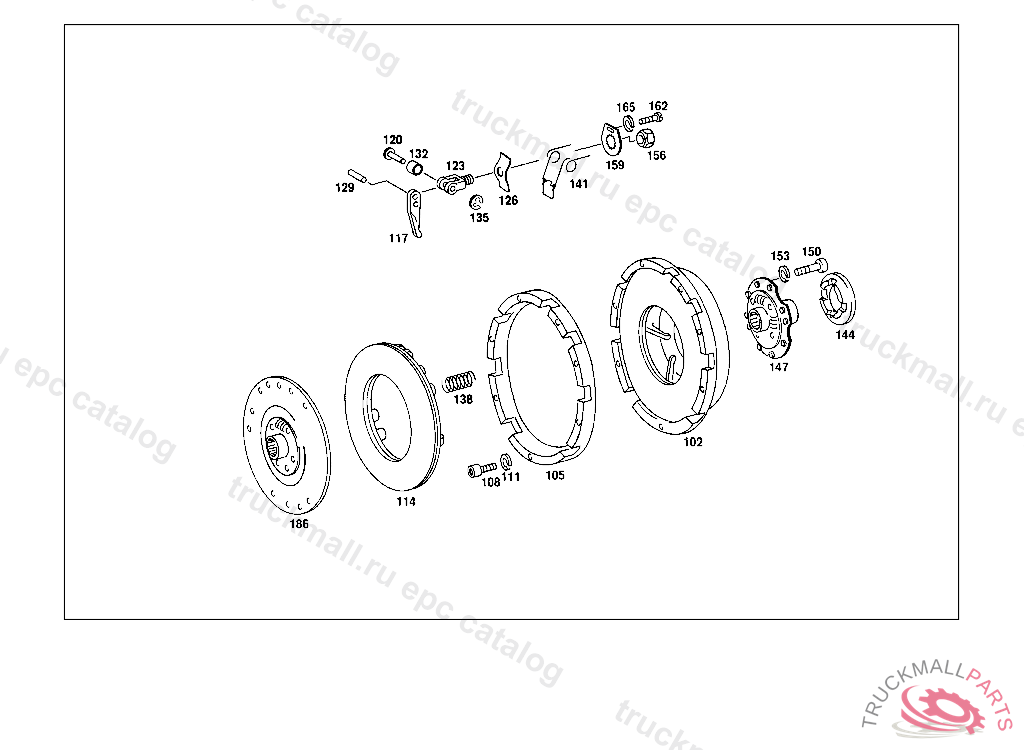

102
CLUTCH PRESSURE PLATE
102
CLUTCH PRESSURE PLATE , Replaced By: A0012508404
105
SPACER RING
108
SCREW
111
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
114
PRESSURE PLATE
117
RELEASE LEVER CLUTCH ACTUATION
120
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
123
BRACKET RELEASE LEVER
126
LEAF SPRING FOR BRACKETS
129
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
129
SPINDLE , Replaced By: A0002520616
132
BUSHING RELEASE LEVER
135
LOCK PLATE RELEASE LEVER TO SHAFT
138
PRESSURE SPRING
138
PRESSURE SPRING
141
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
141
CLAMP , Replaced By: A0002523227
141
CLAMP RELEASE FLANGE TO RELEASE LEVER
141
SPRING RELEASE LEVER
144
FLANGE CLUTCH RELEASE
147
TORS. VIBRATION ABSORBER
150
HEXALOBULAR BOLT. SCREWM 8X45
150
SCREW , Replaced By: N000000001448
153
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
156
NUT , Replaced By: A0002523072
156
NUT FOR BRACKETS
159
LOCK FOR BRACKETS
162
SCREW
162
SCREW , Replaced By: N000085005106
165
LOCK WASHER , Replaced By: N912004005103
165
LOCK WASHER
186
CLUTCH DISC
186
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
RELEASE BEARING CLUTCH ACTUATION
999
PLUG , Replaced By: A0002510183
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
HOUSING CLUTCH PRESSURE PLATE, FROM IDENT NO. 650281 EXCEPTO SEE FOOTNOTE 9
999
HOUSING
999
VALVE , Replaced By: A0002608157
999
VALVE , Replaced By: A0012602457
999
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
BUSHING , Replaced By: N915062002000
999
ROD END CLUTCH ACTUATION
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SWITCH , Replaced By: A0025458114
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING LEVER TO RELEASE SHAFT,5 285575
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH PRESSURE PLATE CLUTCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH DISC
999
CLUTCH DISC ASBESTOS-FREE LINING
999
CLUTCH DISC , Replaced By: A0072501303
999
CLUTCH DISC ASBESTOS-FREE LINING
999
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
999
PIN CLUTCH ACTUATION
999
LEVER CLUTCH ACTUATION,4 601610
999
WASHER AS REQUIRED 0.80 MM
999
WASHER AS REQUIRED 1.20 MM
999
WASHER AS REQUIRED 1.3 MM
999
SPRING RELEASE BEARING TO RELEASE LEVER
999
SCREW SHIFTING ROD TO TRANSMISSION
999
SEAL RING BOTTOM
999
SPACER RING BRACKET TO REAR AXLE HOUSING,5 244591
999
SPACER WASHER RELEASE SHAFT,BOTTOM
999
WASHER CONSOLE TO FRAME
999
SHIFTING ROD REAR
999
LINE , Replaced By: A3812901614
999
JOINT SHIFTING ROD TO TRANSMISSION
999
SUPPORTING ARM BELL HOUSING,4 753305
999
PLUG BELL HOUSING
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
999
WASHER , Replaced By: A6202540176
999
VALVE (SHIFT LEVER VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
999
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
999
BRACKET , Replaced By: A3072950840
999
BRACKET HYDRAULIC HOSE TO TRANSMISSION CASE TOP COVER,4 483474
999
BRACKET HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER,4 653180
999
BRACKET
999
HOSE RELEASE COLLAR LUBRICATION 220 MM
999
ENGINE SUPPORT REAR LEFT,4 743986
999
ENGINE SUPPORT REAR RIGHT,4 743986
999
SHIFTING ROD REAR,4 817018
999
BRACKET SOLENOID VALVE,4 411810
999
BRACKET LINE MOUNTING,4 411811
999
SHIFTING ROD REAR
999
BRACKET , NOT USED
999
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
999
HOUSING ,5 285575, Replaced By: A6202501105, +001A6202500155
999
PLUG , Replaced By: A0002510283
999
ENGINE SUPPORT LEFT REAR,4 743986
999
ENGINE SUPPORT RIGHT REAR,4 743986
999
ENGINE SUPPORT LEFT REAR
999
ENGINE SUPPORT RIGHT REAR
999
RELEASE LEVER CLUTCH ACTUATION
999
SHIFTING ROD REAR,4 8557044 921176
999
SHIFTING ROD REAR
999
HANDLE , Replaced By: A6202680142, +001A6202680157
999
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
BOOT SHIFTING ROD
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
LINE , Replaced By: A3812901514
999
CAP RELEASE BEARING LUBRICATION
999
GREASE NIPPLE RELEASE COLLAR LUBRICATION
