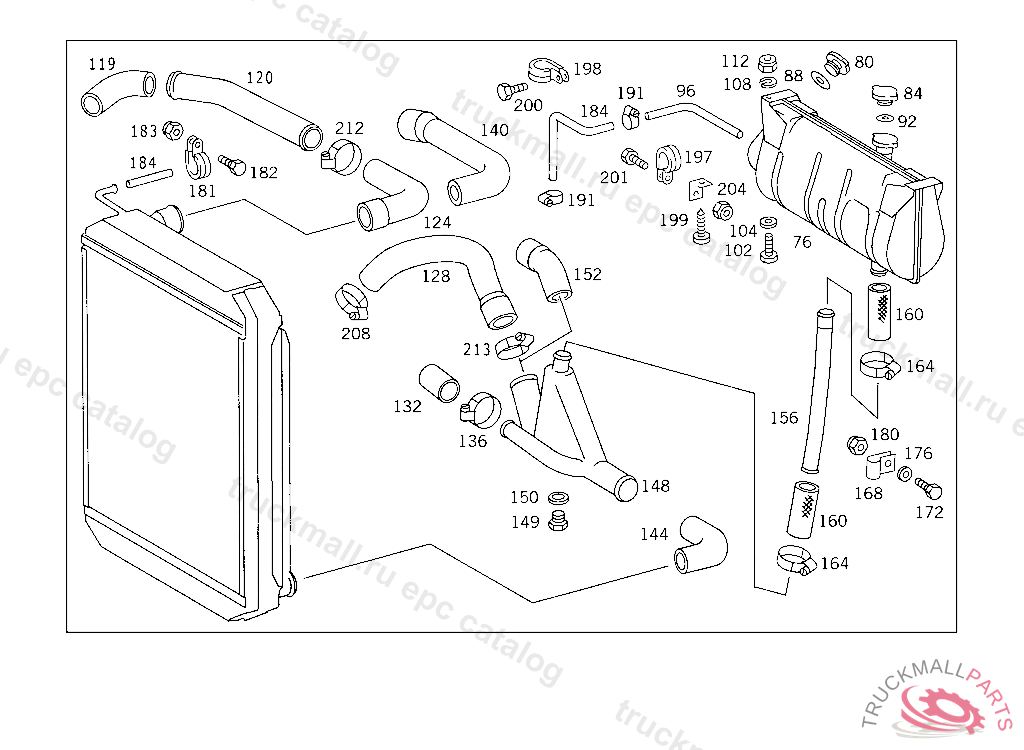

Поз.
Артикул
Описание
76
TANK EXPANSION TANK
80
RADIATOR CAP LATERAL
80
RADIATOR CAP FILLER NECK
80
RADIATOR CAP FILLER NECK
84
RADIATOR CAPTO 335 500 12 03
88
GASKET O.D., 52 MM
92
GASKET O.D., 37 MM
96
DRAIN PIPE
102
SCREW BRACKET TO CROSS CONNECTION STRUT
102
SCREW CLAMP TO BRACKET AND TO PIPE
104
WASHER EXHAUST MUFFLER TO STRAP
108
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
112
NUT , Replaced By: N913004008001
132
HOSE
136
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
140
HOSE FROM THERMOSTAT TO RADIATOR
144
HOSE FROM RADIATOR TO BUBBLE SEPARATOR
148
SEPARATOR (BUBBLE SEPARATOR), NOT USED
148
SEPARATOR , Replaced By: A3965000569
149
SCREW PLUG WATER DRAIN
150
SEAL RING FUEL LINE TO FEED PUMP
152
HOSE FROM BUBBLE SEPARATOR TO WATER PUMP
156
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO EXPANSION TANK TO 300 500 09 49
156
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO EXPANSION TANK TO 300 500 01 49
160
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
164
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
168
CLAMP SAFETY VALVE AT BRACKET
172
SCREW LICENSE PLATE TO BRACKET
176
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
180
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
184
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
191
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
197
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
197
CLAMP DELIVERY AND SUCTION LINES TO FRAME
197
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
198
CLAMP LINE MOUNTING
199
SHEET METAL SCREW BRACKET TO FLOOR PLATE
199
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
200
SCREW PUMP TO BRACKET
201
SCREW CAB FLOOR COVERING M 6X25
204
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
208
CLAMP HOSE FASTENING 50-70X13 MM
212
CLAMP HOSE TO RETARDER 60-80X13 MM
213
CLAMP HOSE 70-90X13 MM
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
