Поз.
Артикул
Описание

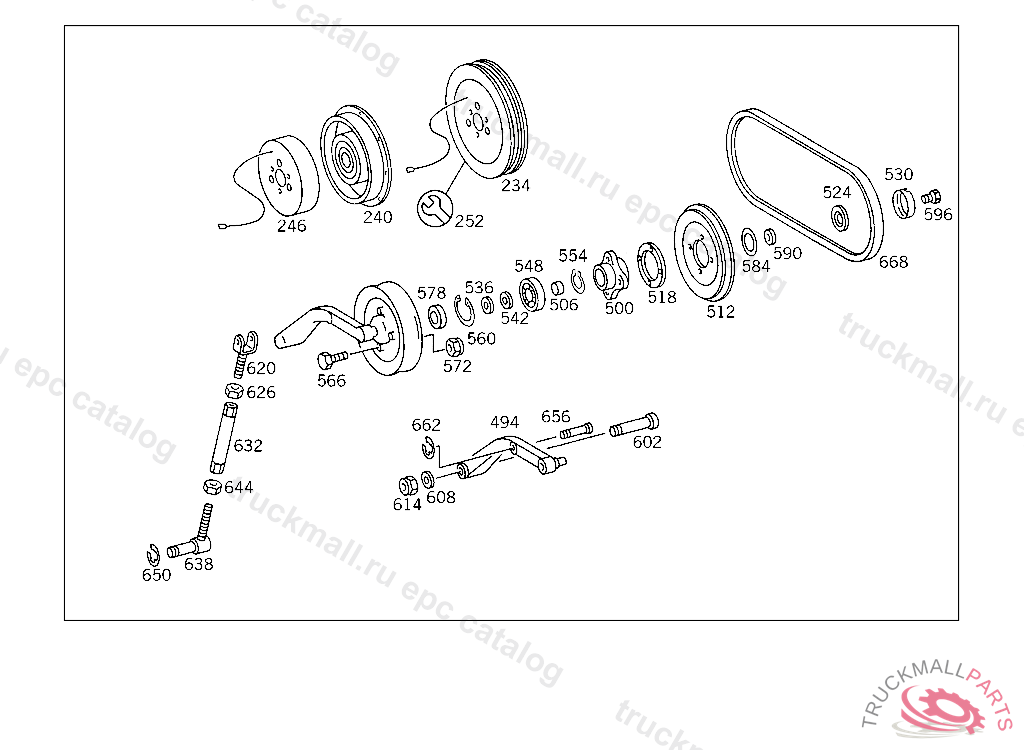

234
COUPLING COMPLETE
240
COUPLING
246
SOLENOID CLUTCH ACTUATION
252
REPAIR KIT CLUTCH
494
LEVER TIGHTENER PULLEY, FROM IDENT NO.035609 EXCEPT FOR 035610,035643,035659,035698,035709,036728,036213
500
HUB
506
SPACER TUBE
512
PULLEY TIGHTENER PULLEY
518
SPACER RING TIGHTENER PULLEY
524
EXPANSION PLUG
524
EXPANSION PLUG
530
NUT TIGHTENER PULLEY
536
SPACER WASHER BELT TIGHTENER 1.00 MM
542
SPACER WASHER BELT TIGHTENER 0.50 MM
542
SPACER WASHER BELT TIGHTENER 0.20 MM
548
GROOVED BALL BEARING
554
LOCK RING
560
LOCK RING52X2 MM
566
SCREW , Replaced By: N304017008018
566
SCREW SUPPORT TO FENDER
572
NUT , Replaced By: N913004008001
578
SEAL RING
584
SEAL RING BATTERY MASTER SWITCH
590
SEAL RING PNEUMATIC VALVE
590
SEAL RING , Replaced By: N007603010110
596
SCREW PLUG 4/2-WAY VALVE
602
PIN TIGHTENER PULLEY TO BEARING BRACKET, FROM IDENT NO.035609 EXCEPT FOR 035610,035643,035659,035698,035709,036728,036213
608
WASHER SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
614
NUT BRACKET TO SIDE MEMBER
620
UNIVERSAL JOINT BELT TIGHTENER,030114
626
NUT , Replaced By: N308675014001
626
NUT JOINT TO BRACKET
632
TURNBUCKLE
638
UNIVERSAL JOINT BELT TIGHTENER
644
NUT JOINT TO BRACKET
644
NUT , Replaced By: N308675014001
650
LOCK PLATE JOINT TO BEARING BRACKET, FOR USE WITH MERCEDES-BENZ BODY UP TO IDENT N.041328, FOR VEHICLES LESS MERCEDES-BENZ BODY UP TO IDENT N.041294
656
PIN CLAMPING BRACKET TO SUPPORT,030114
662
LOCK PLATE LEVER TO STRUT
668
NARROW V-BELT , 10/20 5 331281 50/60 6 900296
999
MAGNET (MAGNET COIL),POWER CONTROL, FROM IDENT NO.007644 (FROM COMPRESSOR J 5500)
999
SCREW SPACER RING TO FLANGE
999
MOUNTING PLATE FRONT
999
MOUNTING PLATE REAR
999
SCREW , Replaced By: A0009843429
