Поз.
Артикул
Описание

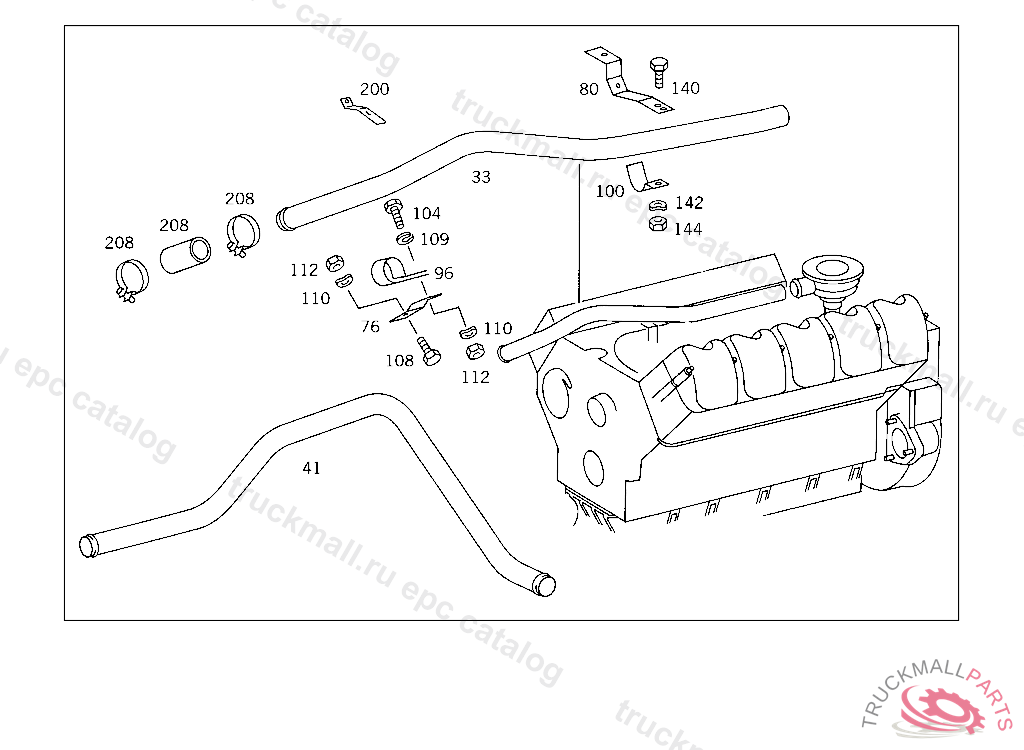

33
PIPE CYLINDER CRANKCASE BREATHING
41
PIPE (INTERMEDIATE PIPE)
76
BRACKET INTERMEDIATE PIPE TO TRANSVERSE INTAKE PIPE
80
BRACKET INTERMEDIATE PIPE TO TRANSVERSE INTAKE PIPE
80
BRACKET INTERMEDIATE PIPE TO TRANSVERSE INTAKE PIPE
96
CLAMP INTERMEDIATE PIPE TO TRANSVERSE INTAKE PIPE
100
CLAMP REAR
104
SCREW BRACKET TO CROSS CONNECTION STRUT
104
SCREW CLAMP TO BRACKET AND TO PIPE
104
SCREW , Replaced By: N304017008034
108
SCREW , Replaced By: N304017008034
108
SCREW BRACKET TO CROSS CONNECTION STRUT
109
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
110
SPRING WASHER , Replaced By: N000137008212
110
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
112
NUT , Replaced By: N304032008006
112
NUT
140
SCREW CLAMP TO BRACKET AND TO PIPE
142
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
142
SPRING WASHER , Replaced By: N000137008212
144
NUT , Replaced By: N304032008006
144
NUT
200
BRACKET INTERMEDIATE PIPE TO TRANSVERSE INTAKE PIPE
200
BRACKET LINE TO OIL PUMP
208
CLAMP , Replaced By: N000000000670
999
CLAMP , Replaced By: N916016025201
999
CLAMP , Replaced By: N916016032201
999
CLAMP , Replaced By: N916016032200
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017025000
999
LOOM TIE , Replaced By: A0019974390
999
BRACKET
999
PIPE BEND ENGINE BREATHING
999
PIPE ENGINE BREATHING
999
HOSE , Replaced By: A3909970682
999
HOSE340 MM
999
HOSE , Replaced By: A4010180732
999
HOSE , Replaced By: A3520181882
999
HOSE
999
HOSE , Replaced By: A4030181782
999
CONNECTOR , Replaced By: A4030180509
999
CONNECTOR , Replaced By: A4030180509
999
BRACKET MOLDED HOSE TO INTAKE MANIFOLD,064694
999
BRACKET MOLDED HOSE TO INTAKE MANIFOLD,064694
999
BRACKET , Replaced By: A4030184340, +001A0019974290
999
BREATHER PIPE , Replaced By: A4030180612
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE MOLDED HOSE
999
HOSE , Replaced By: A4255280482
999
HOSE , Replaced By: A3520182182
999
PIPE (INTERMEDIATE PIPE)
999
PIPE (INTERMEDIATE PIPE)
999
HOSE MOLDED HOSE
999
PIPE (INTERMEDIATE PIPE)
999
HOSE , Replaced By: A4020180382
999
BRACKET BREATHER LINES
999
LINE
999
HOSE BREATHER LINE TO OIL SEPARATOR
999
PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 005390, Replaced By: A4240100155
999
HOSE MOLDED HOSE
999
BREATHER PIPE
999
PIPE , Replaced By: A4070181145
999
BRACKET INTERMEDIATE PIPE TO OIL SEPARATOR
999
BRACKET , Replaced By: A3525462243
999
BREATHER PIPE
999
INTAKE PIPE
999
INTAKE PIPE
999
HOSE , Replaced By: A4210180282
999
HOSE MOLDED HOSE
999
BREATHER PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 442.950-480148, Replaced By: A4420180212
999
FITTING AT AIR COMPRESSOR
999
PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4240100555
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4240180382
999
HOSE HOSE TO OIL FILLER PIPE AND TO PIPE SOCKET ON OIL PAN 135 MM, ORDER BY THE METER
999
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4270180412
999
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4270180512
999
BREATHER PIPE , Replaced By: A4290180112
999
HOSE 18-MM-DIA. LINE
999
SCREW FITTING , Replaced By: A4039971172
999
CLAMP PUMP TO BRACKET
