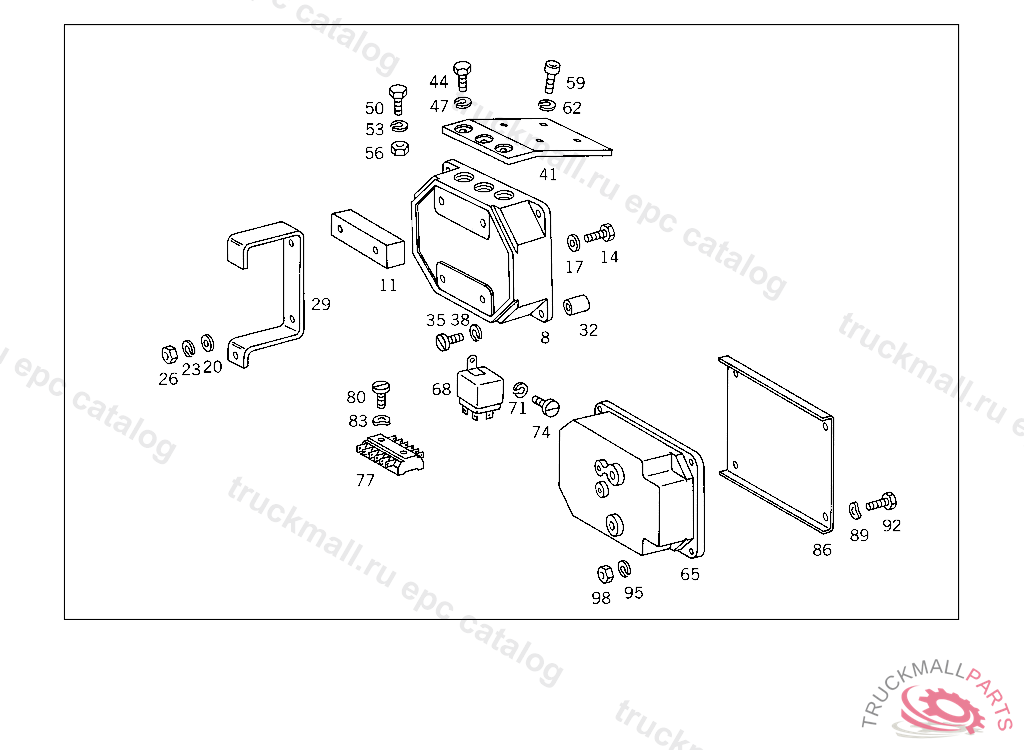

Поз.
Артикул
Описание
8
JUNCTION BOX
8
JUNCTION BOX
11
SHIM
14
SCREW VALVE TO BRACKET
14
SCREW BRACKET TO CROSS CONNECTION STRUT
14
SCREW VALVE TO BRACKET, Replaced By: N304014008002
14
SCREW , Replaced By: N304017008034
17
WASHER
20
WASHER , Replaced By: N000125008443
20
WASHER EXHAUST MUFFLER TO STRAP
23
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
26
NUT
26
NUT , Replaced By: N304032008006
29
ANGLE
32
SPACER TUBE
35
SCREW
38
LOCK WASHER
41
BRACKET
44
SCREW ENGINE SUPPORT TO CYLINDER CRANKCASE
47
WASHER
50
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
53
LOCK WASHER FITTING TO BRACKET
56
NUT STRAP TO SUPPORT,5 149419
59
SCREW
62
LOCK WASHER PARKING BRAKE
65
JUNCTION BOX
68
RELAY , Replaced By: A0025420919
71
SPRING WASHER ALTERNATOR CONNECTION D+
74
SCREW
77
CABLE CONNECTOR 6-POLE
80
SPRING WASHER
83
SCREW CABLE CONNECTOR
86
CAP
89
SPRING WASHER LICENSE PLATE TO BRACKET
92
SCREW BRAKE LINE MOUNTING
95
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
98
NUT BRACKET TO SUPPORT AND TO END PIECE
999
CABLE GUIDE
999
CABLE CONNECTOR CABLE HARNESS MOUNTING
999
CABLE CONNECTOR CABLE HARNESS MOUNTING
999
PART NAME MISSING
999
GLAND SCREW CONNECTION CABLE HARNESS MOUNTING
999
GLAND SCREW CONNECTION
999
JUNCTION BOX
999
LOCK
999
SCREW
999
CABLE GUIDE BIPOLAR
999
CABLE GUIDE
999
PART NAME MISSING. CAP CABLE HARNESS MOUNTING
999
PART NAME MISSING. CAP CABLE HARNESS MOUNTING
999
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
