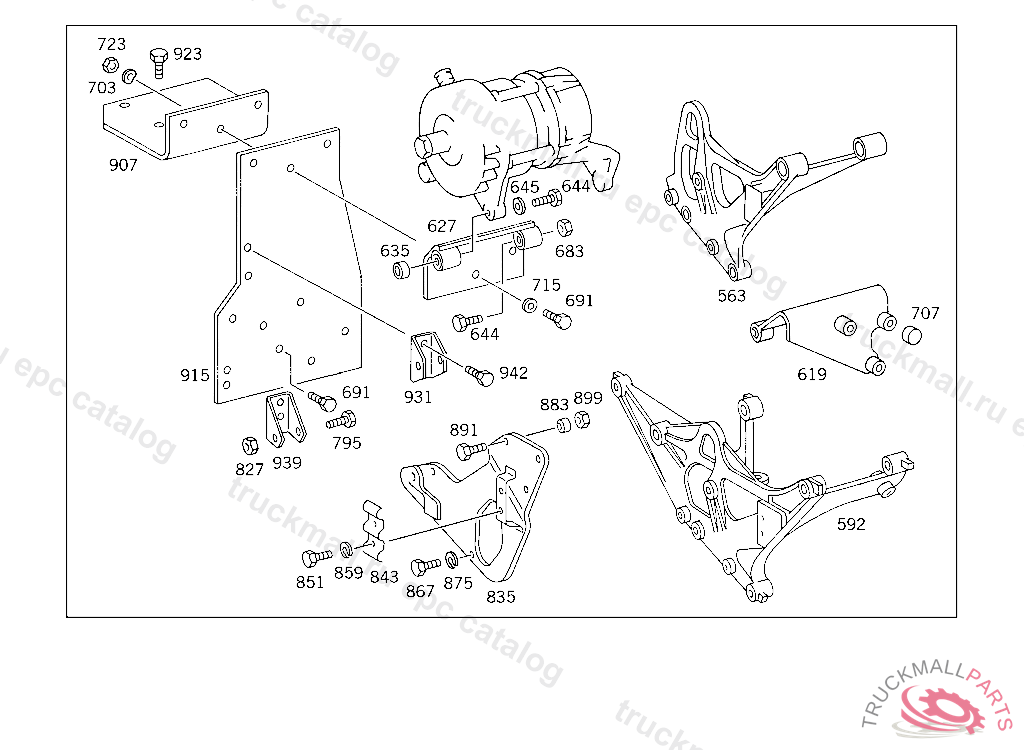

Поз.
Артикул
Описание
563
SUPPORT ALTERNATOR
563
SUPPORT ALTERNATOR
592
SUPPORT , 401-403 263871 421-423 114639 ORDER ADDITIONALLY IN CASE OFV-6 ENGINE: FUEL LINE 421 070 07 32/09 32/13 32,422 070 34 32 V-6A ENGINE: FUEL LINE 421 070 08 32/10 32/12 32/14 32V-8 ENGINE: FUEL LINE 422 070 31 32/32 32/34 32/35 32 V-10 ENGINE: FUEL LINE 403 070 66 32/67 32/68 32,422 070 34 32, Replaced By: A4221501470, +001A0059974292, +002N000125010518, +001N000931010110, +002N000931010355, +002N000933010228, +001N000933020020
592
SUPPORT , 401-403 263872 421-423 114640 FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 511601, Replaced By: A4421500570
592
SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421501970
619
SUPPORT ALTERNATOR
619
SUPPORT ALTERNATOR
627
SUPPORT ALTERNATOR
635
BUSHING
635
BUSHING
635
BUSHING
635
BUSHING
635
SPACER TUBE
635
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
644
SCREW ALTERNATOR MOUNTING
644
SCREW BRACKET TO CONSOLE
644
SCREW , Replaced By: N304014010015
644
SCREW , Replaced By: N304014010015
644
SCREW , Replaced By: N308676012031
644
SCREW , Replaced By: N000961012208
644
SCREW , Replaced By: N308676012011
644
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
644
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
644
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
644
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
644
SCREW
644
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
644
SCREW ALTERNATOR TO SUPPORT
644
SCREW DUMPER SHAFT,5 515436
644
SCREW BRACKET TO FRAME SIDE MEMBER
645
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
683
NUT DRAG LINK END TO DRAG LINK,5 055225
683
NUT CLAMPING BOLT TO ALTERNATOR TO 352 155 01 72
683
NUT END PIECE TO EXHAUST PIPE
683
PART NAME MISSING ALTERNATOR TO SUPPORT
683
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
683
NUT , Replaced By: N910113010000
683
NUT BRACKET TO SIDE MEMBER M12X1.5
683
NUT STRAP TO BRACKET
691
SCREW STRUT TO CROSS MEMBER M 10X25
691
SCREW BRACKET TO FRAME SIDE MEMBER
691
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
691
SCREW , Replaced By: N304017010035
691
SCREW , Replaced By: N304017010047
691
SCREW , Replaced By: N304017012020
691
SCREW , Replaced By: N304017014011
691
SCREW BRACKET TO FRAME SIDE MEMBER M 14X25,5 724020
691
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
691
SCREW BRACKET TO TIMING CASE
691
SCREW BRACKET TO SIDE MEMBER
691
SCREW PLATE TO FRAME M 10X45
691
SCREW END PIECE TO EXHAUST PIPE M 10X25
691
SCREW SUPPORT TO CYLINDER CRANKCASE
691
SCREW STRAP TO BRACKET
691
SCREW SUPPORT TO CYLINDER CRANKCASE
691
SCREW
691
SCREW AUXILIARY FRAME MOUNTING
691
SCREW REAR EXHAUST PIPE TO MUFFLER
691
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
691
SCREW BRACKET TO LEFT SIDE MEMBER
691
SCREW CONSOLE TO SIDE MEMBER
691
HEXAGON HEAD BOLT TRAY AT TRANSMISSION M12X45
691
SCREW BRACKET TO TELESCOPIC TUBE,K 131522
691
SCREW CONNECTOR TO REAR SHIFTING ROD
691
SCREW LEFT BEARING BRACKET TO CASE
691
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
691
SCREW END PIECE TO EXHAUST PIPE M 12X30
691
SCREW BRACKET IN CYLINDER CRANKCASE
691
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
691
SCREW , Replaced By: N304017014011
703
SPRING WASHER STEERING COLUMN BRACKET TO CAB
703
SPRING WASHER BRACKET TO TIMING CASE
707
SPACER TUBE BATTERY POLE CONNECTION
707
WASHER TIGHTENER PULLEY TO BRACKET ON ENGINE
707
SPACER TUBE , Replaced By: A3569901040
715
WASHER , Replaced By: N000433010510
715
WASHER RADIATOR TO RUBBER MOUNTING
715
WASHER
715
WASHER VIBRATION ABSORBER TO BRACKET
723
NUT BRACKET TO SIDE MEMBER
723
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
723
NUT , Replaced By: N913023010002
795
SCREW PLATE TO FRAME M 10X45
795
SCREW STEERING SUPPORT TO FRAME M 10X75
795
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
795
SCREW STRAP TO BRACKET
795
SCREW MANUAL PUMP TO BRACKET AND TO PLATE M 10X40
795
SCREW
795
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
795
SCREW , Replaced By: N304017010055
795
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
795
SCREW CLUTCH OPERATION,4 282707
795
SCREW BRACKET TO SIDE MEMBER M10X38
795
SCREW REAR EXHAUST PIPE TO MUFFLER
795
SCREW BRACKET TO FRAME SIDE MEMBER
795
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
795
SCREW PIPE ELBOW TO BRACKET M 10X50
795
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
795
SCREW BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT M 10X40,4 338291
795
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
795
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
795
SCREW BRACKET TO SIDE MEMBER M10X35
795
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
795
SCREW , Replaced By: N308676012011
795
SCREW , Replaced By: N304017010053
795
SCREW , Replaced By: N304017010051
795
SCREW , Replaced By: N308676012031
795
SCREW , Replaced By: N304017012002
795
SCREW , Replaced By: N304017010050
795
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
795
SCREW CROSS MEMBER TO FRAME
795
SCREW , Replaced By: N910105010017
795
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
795
SCREW COOLING WATER HOSE TO ENGINE M 10X45
827
NUT R.H. THREAD
827
NUT BRACKET TO SIDE MEMBER
827
NUT , Replaced By: N304035012002
827
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
827
NUT
827
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
827
NUT , Replaced By: N913023010002
827
NUT , Replaced By: N304032010002
835
BRACKET ALTERNATOR MOUNTING PLATE, 401-403 263871 421-423 114639
835
BRACKET , Replaced By: A4031501873, +001A4031502272
843
CLAMP FUEL LINE TO SUPPORT
843
CLAMP LINE MOUNTING
843
CLAMP FUEL LINE, 741959
851
SCREW CAB FLOOR COVERING M 6X25
851
SCREW , Replaced By: N000000001479
851
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
859
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
867
SCREW , Replaced By: N304017010040
867
SCREW , Replaced By: N910105010009
867
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
875
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
883
SPACER TUBE BATTERY POLE CONNECTION
891
SCREW BRACKET TO FRAME SIDE MEMBER
899
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
899
NUT , Replaced By: N913023010002
907
SUPPORT ALTERNATOR
915
SUPPORT ALTERNATOR
923
SCREW BRACKET TO SIDE MEMBER
923
SCREW , Replaced By: N304017014011
931
BRACKET CLAMPING BOLT
939
BRACKET CLAMPING BOLT
942
SCREW STRUT TO CROSS MEMBER M 10X25
999
WASHER
999
GASKET , Replaced By: A4071540280
999
PIPE SOCKET , Replaced By: A4031540365
999
PIPE SOCKET , Replaced By: A4071540165
999
DIODE , Replaced By: A0005487918
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0015481118
999
SCREW , Replaced By: A0009908221
999
SCREW , Replaced By: A0009908321
999
SCREW , Replaced By: A0009907921
999
DIODE , Replaced By: A0015481518
999
SCREW , Replaced By: A0009907121
999
SCREW , Replaced By: A0019902120
999
SCREW , Replaced By: A0009907621
999
REGULATOR AND CUT-OUT , Replaced By: A0021545506
999
REGULATOR AND CUT-OUT , Replaced By: A0021546806
999
BALL BEARING
999
BALL BEARING , Replaced By: A0059812225
999
ALTERNATOR , NOT USED
999
ALTERNATOR , Replaced By: A0081547802
999
BRACKET COOLING WATER LINE TO ENGINE
999
CLAMPING BOLT , Replaced By: A4031500572
999
WASHER , Replaced By: A3149900940
999
SUPPORT
