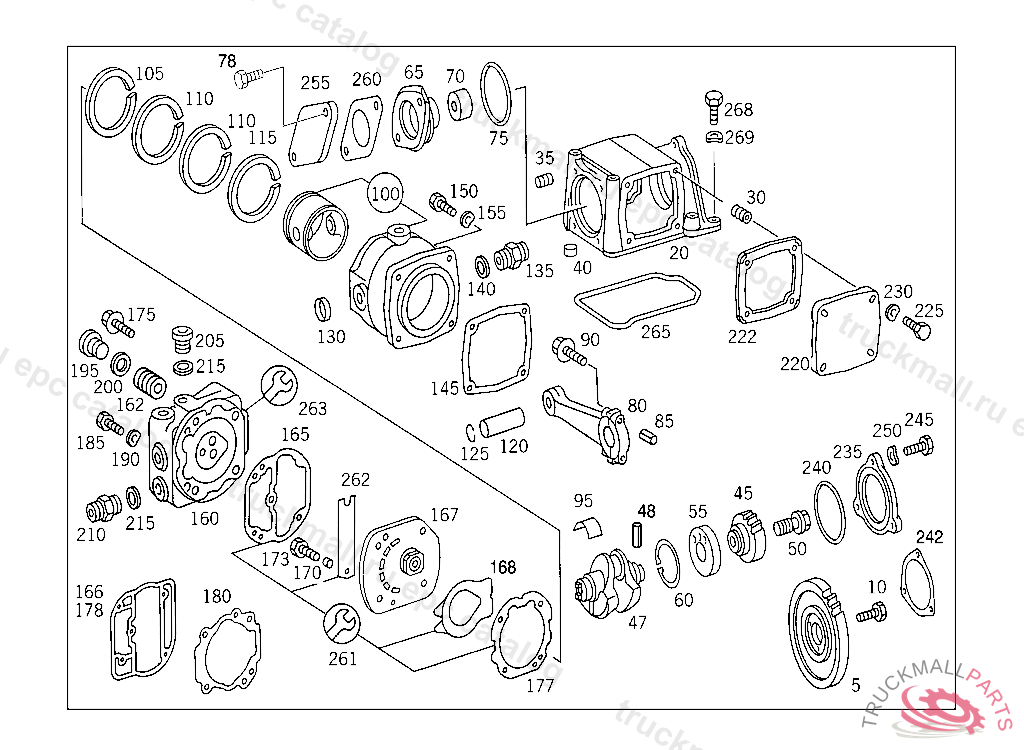

Поз.
Артикул
Описание
5
GEAR DRIVE GEAR ON CAMSHAFT
10
SCREW CONNECTOR TO REAR SHIFTING ROD
10
SCREW BRACKET TO CONSOLE
10
SCREW , Replaced By: N304017010043
20
HOUSING , Replaced By: A4071300610, +001A4031301045
20
HOUSING , Replaced By: A4471310215, +001A4471310121, +001A4471310280, +002N000931008210
20
HOUSING , Replaced By: A4071300610
20
HOUSING
30
THREADED INSERT
30
THREADED INSERT
35
THREADED INSERT ,5 462573
40
SPACER TUBE
45
DRIVE GEAR ON AIR COMPRESSOR CRANKSHAFT
45
DRIVE GEAR ON AIR COMPRESSOR CRANKSHAFT
45
DRIVE GEAR , Replaced By: A4071321005
47
CRANKSHAFT , Replaced By: A4031310716
47
CRANKSHAFT , 401-403,421-423,440-443,445,446888000 407,427,447062251, Replaced By: A4031311216, +001A4071300445, +001A0001321410
47
CRANKSHAFT , Replaced By: A4031300214
47
CRANKSHAFT
48
CLAMPING SLEEVETO 001 430 66 81,001 430 67 818KNORR
50
SCREW DRIVE GEAR TO CRANKSHAFT
55
SELF-ALGN.ROLLER BEARING DRIVE GEAR TO CRANKSHAFT
55
SELF-ALGN.ROLLER BEARING , Replaced By: A0009810535
55
CYLINDR. ROLLER BEARING , Replaced By: A0079813001
55
CYLINDR. ROLLER BEARING , Replaced By: A0029819301
55
CYLINDR. ROLLER BEARING AIR COMPRESSOR BEARING
55
GROOVED BALL BEARING , Replaced By: A0079813001
60
LOCK BEARING FLANGE IN TIMING CASE & AIR COMPRESSOR HOUSING,RESP.
65
FLANGE AIR COMPRESSOR BEARING FLANGE,000951
65
FLANGE AIR COMPRESSOR,424.900-000-012333
65
FLANGE
70
BUSHING , Replaced By: A0001314250
70
BUSHING LONG 19 MM, 003192
70
BUSHING
75
SEAL RINGTO 388 476 71 69
75
SEAL RING , Replaced By: A0149976148
78
SCREW BRACKET TO SIDE MEMBER M10X35
80
CONNECTING ROD , LESS CONNECTING ROD BEARING SHELLS - BEARING SHELLS NO LONGERREQUIRED
80
CONNECTING ROD , Replaced By: A4031301816
80
CONNECTING ROD , Replaced By: A4031302816
80
CONNECTING ROD
85
CLAMPING SLEEVE
90
SCREW , Replaced By: A4039900210
90
SCREW THERMOSTAT HOUSING TO WATER PUMP M 8X38
95
BEARING SHELL UPPER AND LOWER HALVES
100
CYLINDER LINER WITH PISTON
100
CYLINDER LINER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 264430, Replaced By: A4021300608
105
PISTON RING , Replaced By: A0001318611
105
PISTON RING , Replaced By: A0001316411
105
PISTON RING GROOVES I AND II
110
PISTON RING GROOVES I AND II
110
PISTON RING GROOVE III
110
PISTON RING , Replaced By: A0001316511
110
PISTON RING , Replaced By: A0001318611
115
PISTON RING , Replaced By: A0001316611
115
PISTON RING GROOVE IV
120
PISTON PINTO 403 130 05 17
120
PISTON PIN ,264430
125
SNAP RING
130
EXPANSION PLUG P.T.O. HOUSING
135
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
135
SCREW FITTING , Replaced By: A4039971172
140
SEAL RING FROM FUEL TANK TO FUEL TANK
145
GASKET OIL FILTER TO CYLINDER CRANKCASE
145
GASKET OIL FILTER TO CYLINDER CRANKCASE
145
GASKET , Replaced By: A4421310080
145
GASKET , Replaced By: A4421312080
145
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
150
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
155
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
155
WASHER EXHAUST MUFFLER TO STRAP
160
CYLINDER HEAD WITH DISC VALVE, 407 030936 427 002637 447.901/200 030936 447.905/906/908/910/911/912/951 001443
160
CYLINDER HEAD WITH DISC VALVE BOSCH
160
CYLINDER HEAD WITH DISC VALVE KNORR
160
CYLINDER HEAD
160
CYLINDER HEAD , Replaced By: A0001304119
165
GASKET , Replaced By: A4421310780
165
GASKET , TO 001 131 54 01
165
GASKETTO 000 130 20 19,403 130 08 19
166
GASKET
166
GASKET , Replaced By: A0011317380
167
VALVETO 000 130 20 19,403 130 00 19/08 19
168
VALVE DISC (PRESSURE DISC) TO 004 131 01 01
168
VALVE DISCTO 002 131 36 01
170
SPACER RING PRESSURE DISC TO INTERMEDIATE PLATE TO 000 130 24 19/25 19/26 19
173
SCREW PRESSURE DISC TO INTERMEDIATE PLATE M 6X20
175
SCREWTO 376 131 74 01
177
GASKETWABCO
177
GASKET , Replaced By: A4421310980
180
GASKETTO 000 130 20 19,403 130 00 19/08 19
185
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X80
185
HEXAGON HEAD BOLT. SCREW , Replaced By: N910143008016
190
SPRING WASHER , Replaced By: N000137008212
190
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
195
SCREW PLUG OIL COOLER,5 360280
195
SCREW PLUG , Replaced By: A0009973532
200
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
205
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
205
SCREW PLUG , Replaced By: N000908022011
210
ADAPTER FITTING COOLING WATER LINE
215
SEAL RING LINE CONNECTION
220
CAP TO PLUG AIR COMPRESSOR OPENING,128243
220
CAP , Replaced By: A4031310921
220
CAP , Replaced By: A4031311021
220
CAP , Replaced By: A4421310021
222
GASKET
222
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
222
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
222
GASKET OIL FILTER TO CYLINDER CRANKCASE
222
GASKET OIL FILTER TO CYLINDER CRANKCASE
225
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
225
SCREW CLUTCH TO FLYWHEEL,760271
230
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
230
SPRING WASHER , Replaced By: N000137008212
235
CAP COVER TO AIR COMPRESSOR HOUSING,048083048474
235
CAP COVER TO AIR COMPRESSOR HOUSING
240
SEAL RING COVER TO AIR COMPRESSOR HOUSING
242
GASKET COVER TO AIR COMPRESSOR HOUSING
245
SCREW STOP TO BATTERY CASE
250
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
250
SPRING WASHER , Replaced By: N000137008212
261
REPAIR KIT , Replaced By: A4021300220
261
REPAIR KIT , Replaced By: A4021300020
261
REPAIR KIT (DISC VALVE)
262
VALVE DISCTO 002 131 36 01
263
REPAIR KIT AIR COMPRESSOR CYLINDER HEAD TO 000 130 24 19/25 19/26 19
263
VALVE AIR COMPRESSOR CYLINDER HEAD TO 000 130 24 19/25 19/26 19
263
REPAIR KIT , Replaced By: A4021300320
263
REPAIR KIT , Replaced By: A4021300120
263
REPAIR KIT , Replaced By: A0001307620
265
GASKET , Replaced By: A4071310580
265
GASKET
268
SCREW BRACKET TO EXHAUST PIPE BRACKET
268
SCREW FAN TO CRANKSHAFT PULLEY
268
SCREW , Replaced By: N304017008024
268
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
269
SPRING WASHER , Replaced By: N000137008212
269
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
VALVE , ORDER 402 130 01 20 REPAIR KIT
999
VALVE DISC , Replaced By: A0001314631
999
SEALANT , Replaced By: A0019892920
999
HOUSING
999
DRIVE GEAR
