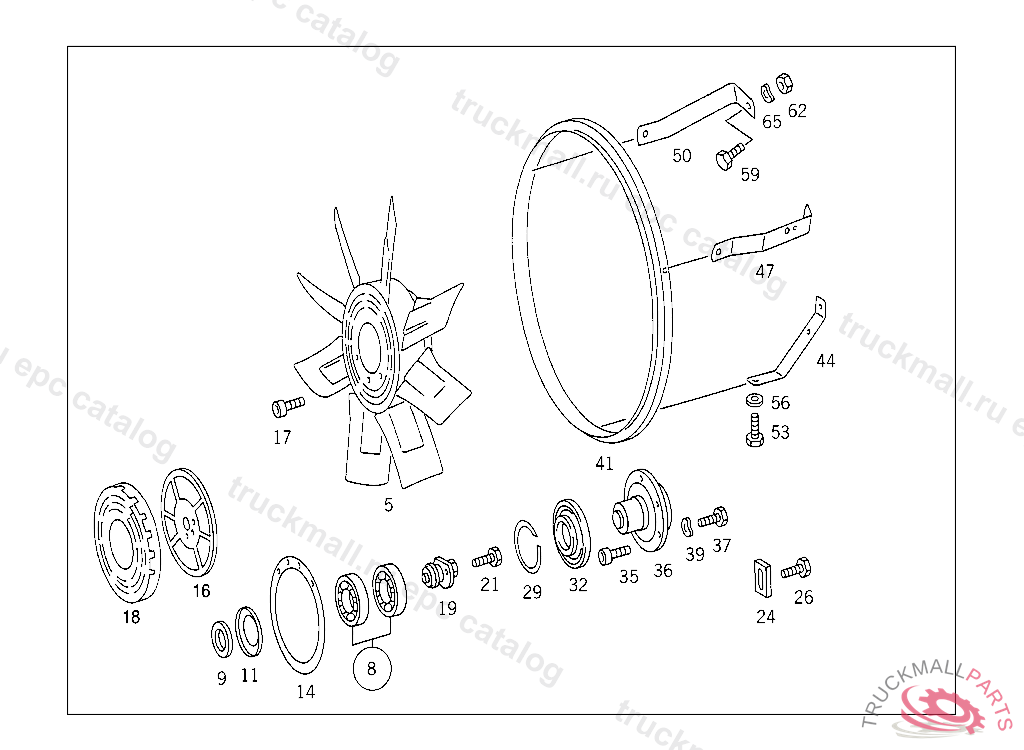

Поз.
Артикул
Описание
5
FAN 8-BLADE,WITH FLEXIBLE FAN HUB
8
BALL BEARING
8
ANGULAR CONTACT BEARINGTO 001 205 95 06
9
SPACER RING
11
SEAL RING
14
GASKET
14
GASKET FRONT COVER
16
PRIMARY CUPTO 001 205 40 06
17
SCREW OIL PIPE TO SLEEVE VALVE
19
CLAMPING PIECE (SLIDE)
21
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
24
GUIDE
26
SCREW
29
LOCK AS REQUIRED 2.2 MM
29
LOCK AS REQUIRED 2.1 MM
29
LOCK AS REQUIRED 2.0 MM
29
LOCK AS REQUIRED 2.3 MM
32
SEAL RING
35
SCREW
36
FLANGETO 001 205 95 06
37
SCREW CABLE HARNESS MOUNTING
37
SCREW , Replaced By: N304017008023
39
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
39
SPRING WASHER , Replaced By: N000137008212
41
AIR BAFFLE RADIATOR
44
BRACKET LEFT,035058
44
BRACKET LEFT,035059
47
BRACKET LEFT
50
BRACKET RIGHT
53
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
53
SCREW , Replaced By: N304017010028
56
WASHER RADIATOR TO RUBBER MOUNTING
59
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
62
NUT BRACKET TO SUPPORT AND TO END PIECE
65
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
BALL BEARING , Replaced By: A0019816027
999
FANTO 001 205 99 06
999
FANTO 001 205 48 06/51 06
999
FAN , Replaced By: A0012059906
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 64 CCM,TO 002 205 01 06
999
COVERTO 001 205 48 06/51 06
999
FLANGE
999
GASKET , Replaced By: A0002060580
