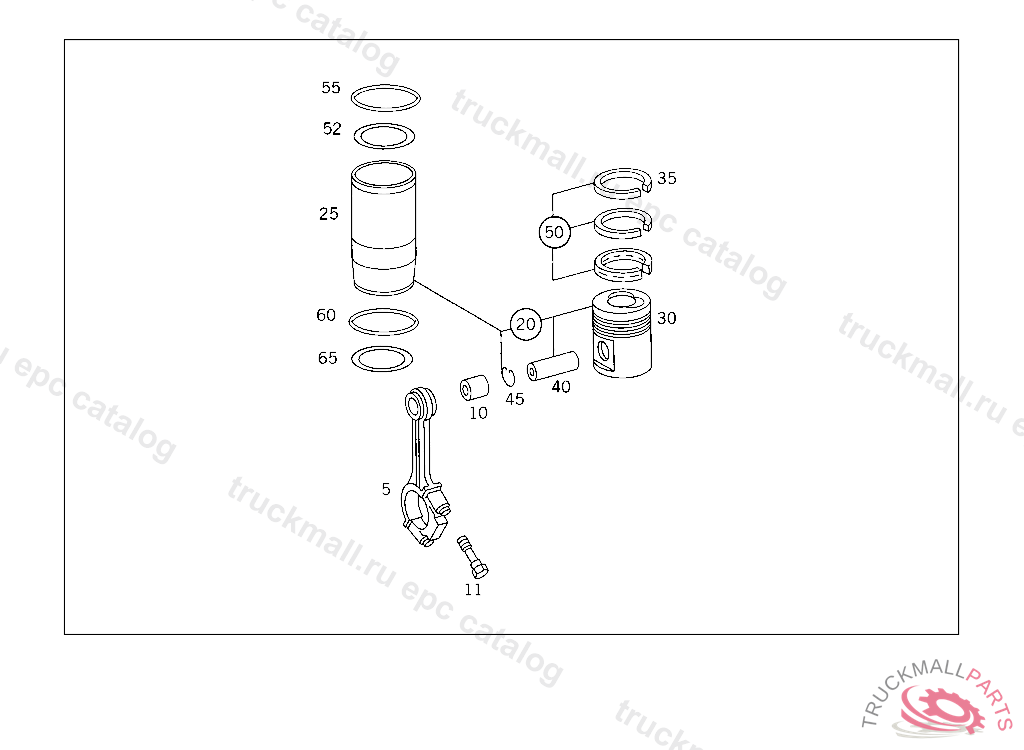

Поз.
Артикул
Описание
5
CONNECTING ROD
5
CONNECTING ROD
5
CONNECTING ROD , Replaced By: A4470300420
5
CONNECTING ROD , Replaced By: A4470300820
5
CONNECTING ROD
10
PISTON PIN BUSHINGTO 407 030 07 20, 447 030 04 20
10
PISTON PIN BUSHING ,070547 TO BE ADAPTED DURING ASSEMBLY
11
SCREW , ONLY REPLACEABLE BY PAIRS, Replaced By: A4420380071
11
SCREW CONNECTING ROD COVER TO CONNECTING ROD
20
PISTON , Replaced By: A4470300137
20
PISTON ,039041, Replaced By: A4470300337, +001A4420110059
20
PISTON WITH CYLINDER LINER
25
CYLINDER LINER ,039041, Replaced By: A4470110210, +001A4420110059
25
CYLINDER LINER ACCORDING TO FITTING SIZE C 127.995
30
PISTON ACCORDING TO FITTING SIZE C
35
PISTON RING GROOVE I
35
PISTON RING , Replaced By: A4220370716
35
PISTON RING , Replaced By: A4420370216
40
PISTON PIN ,004220
45
SNAP RING
50
PISTON RING PARTS KIT
50
PISTON RING , Replaced By: A4220300124
50
PISTON RING , Replaced By: A4220300024
52
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.15 MM
55
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP, GROOVE: II
55
SEAL RING , Replaced By: A0159979048
55
SEAL RING , Replaced By: A0259978448
60
SEAL RING , Replaced By: A0159979148
60
SEAL RING , Replaced By: A0259978548
60
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, BOTTOM III, IV
65
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.50 MM
65
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.50 MM
65
SUPPORTING RING FOR REPAIR PURPOSES ONLY 0.80 MM
65
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.00 MM
65
SEAL RING , Replaced By: A4420110259
