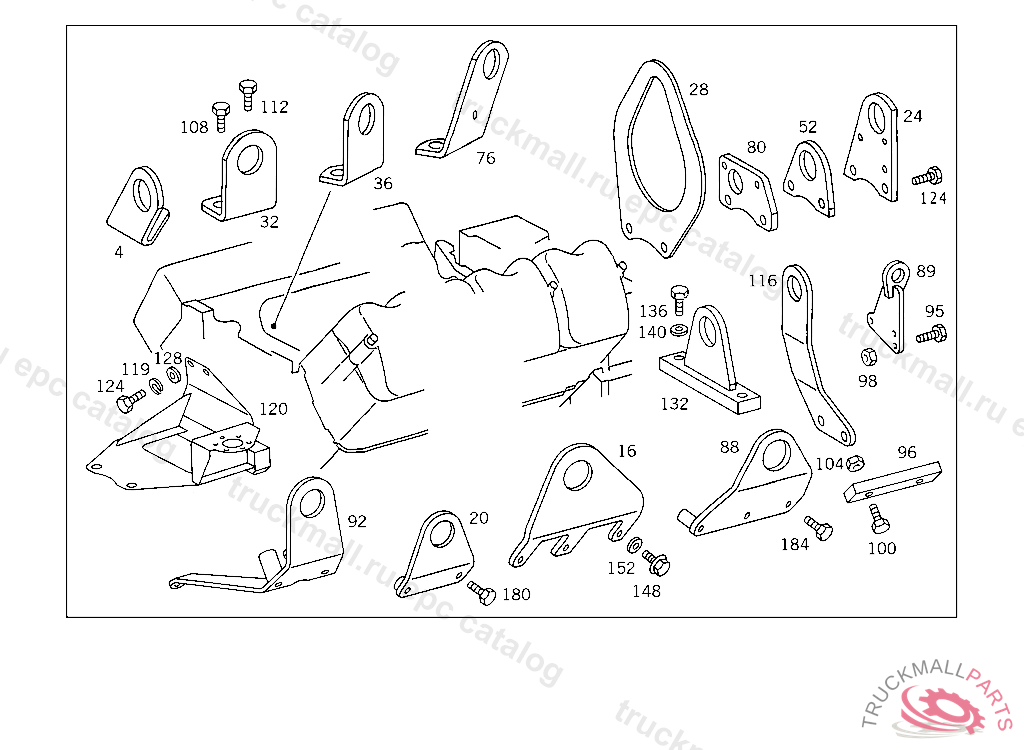

Поз.
Артикул
Описание
4
SUSPENSION EYE FRONT, NOT USED
4
SUSPENSION EYE FRONT
4
SUSPENSION EYE FRONT
16
SUSPENSION EYE
20
SUSPENSION EYE FRONT
20
SUSPENSION EYE REAR
24
SUSPENSION EYE REAR SUSPENSION EYE TO TIMING CASE
24
SUSPENSION EYE BRACKET TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
24
SUSPENSION EYE REAR,002102
28
SUSPENSION EYE REAR
28
SUSPENSION EYE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 203285, Replaced By: A4232230341
32
SUSPENSION EYE FRONT
32
SUSPENSION EYE FRONT,960990
36
SUSPENSION EYE FRONT
52
SUSPENSION EYE REAR
52
SUSPENSION EYE REAR
52
SUSPENSION EYE REAR
76
SUSPENSION EYE FRONT
76
SUSPENSION EYE FRONT
76
SUSPENSION EYE
76
SUSPENSION EYE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4412230641
80
SUSPENSION EYE
88
SUSPENSION EYE FRONT LEFT,160339
88
SUSPENSION EYE FRONT
88
SUSPENSION EYE FRONT
88
SUSPENSION EYE FRONT,160340
88
SUSPENSION EYE FRONT LEFT
88
SUSPENSION EYE FRONT RIGHT,160339
88
SUSPENSION EYE EXHAUST MANIFOLD
88
SUSPENSION EYE FRONT RIGHT
89
SUSPENSION EYE REAR
89
SUSPENSION EYE REAR
89
SUSPENSION EYE REAR, SIMPLE PART-PLEASE HAVE SHOP MADE
92
SUSPENSION EYE FRONT RIGHT
92
SUSPENSION EYE FRONT LEFT
95
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
96
CLAMPING RAIL AT SUSPENSION EYE
98
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
100
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
104
NUT ANGLE TO FRAME
108
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE M 20X40
108
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE M 20X45
112
SCREW BRACKET TO SIDE MEMBER
112
SCREW , Replaced By: A0019908204
112
SCREW SUPPORT TO CROSS MEMBER M 10X28
112
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
112
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
112
SCREW , Replaced By: N304017010002
112
SCREW , Replaced By: N910105010009
116
SUSPENSION EYE REAR
116
SUSPENSION EYE REAR
116
SUSPENSION EYE REAR
116
SUSPENSION EYE REAR
119
LOCK WASHERROCKINGER TYP 59 G140,59 G150
120
SUPPORT SUSPENSION EYE TO TIMING CASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
124
SCREW BRACKET TO ENGINE
124
SCREW BRACKET TO TIMING CASE
124
SCREW SUPPORTING ARM TO HOUSING M 16X35
124
SCREW BRACKET WITH FUEL FILTER TO ENGINE
124
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
124
HEXAGON HEAD BOLT SUPPORTING ARM TO TIMING CASE M 16X40
124
HEXAGON HEAD BOLT , Replaced By: A0029902704
124
SCREW , Replaced By: N308676012013
124
SCREW , Replaced By: N000933016082
124
SCREW , Replaced By: N304017016004
128
WASHER , Replaced By: N000125017016
128
WASHER BRACKET TO FRAME
128
WASHER
132
SUSPENSION EYE ENGINE SUSPENSION EYE,REAR, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
136
HEXAGON HEAD BOLT SUPPORTING ARM TO TIMING CASE M 16X40
136
SCREW BRACKET WITH FUEL FILTER TO ENGINE
140
WASHER BRACKET TO FRAME
140
WASHER , Replaced By: N000125017016
148
SCREW , Replaced By: A4579901301
148
SCREW , Replaced By: A4479906104
148
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE
152
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
180
SCREW FRONT RIGHT
180
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE
180
SCREW SUSPENSION EYE TO CYLINDER HEAD
180
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
180
SCREW , Replaced By: A4579902001
180
SCREW , Replaced By: A4579901301
180
SCREW , Replaced By: A4479906104
184
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
184
SCREW SHUT-OFF COCK TO BRACKET
184
SCREW FRONT SUSPENSION EYE TO CYLINDER CRANKCASE
184
SCREW , Replaced By: A4579902001
184
SCREW , Replaced By: A4579901301
184
SCREW , Replaced By: A4479906104
184
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
999
SCREWM 10X20
999
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4049905119
999
SUSPENSION EYE FRONT
999
LIFTING DEVICE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4242200241
999
LIFTING DEVICE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 010398, Replaced By: A4442200241
999
WASHER , Replaced By: N007349010003
999
LIFTING DEVICE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 575129, Replaced By: A4432200041
999
LIFTING DEVICE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4232200341
999
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD,407.901 027659
999
SUSPENSION EYE , Replaced By: A4222230141
999
SCREW , Replaced By: A4479905304
999
SCREW FRONT SUSPENSION EYE TO CYLINDER HEAD
999
SCREW , Replaced By: A4049905119
999
SCREW , Replaced By: A4479905204
999
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD,407.901 027658
999
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD
999
WASHER , Replaced By: A4239900040
