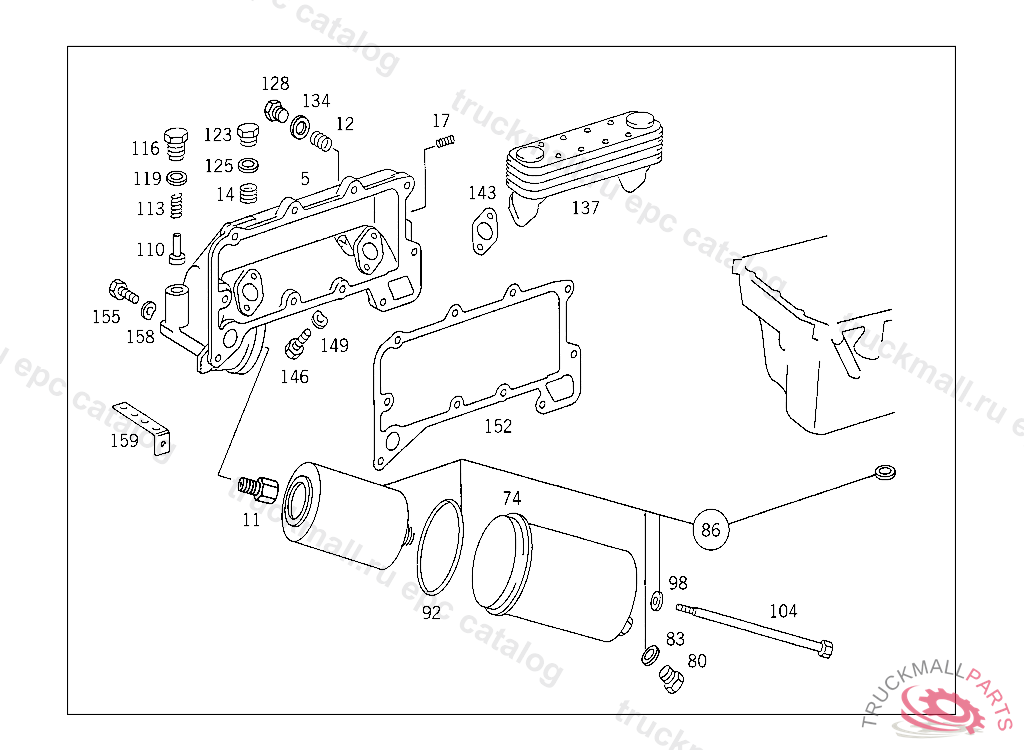

Поз.
Артикул
Описание
5
COVER OIL FILTER, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
THREADED UNION OIL FILTER
12
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
14
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
17
THREADED INSERT
74
FILTER BOWL , UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
80
SCREW PLUG SHIFTING SHAFT DETENT
86
FILTER ELEMENT WITH GASKETS
92
SEAL RING FILTER BOWL TO FILTER HEAD
98
SEAL RING FUEL LINE TO FEED PUMP
104
SCREW OIL FILTER HOUSING TO OIL FILTER HEAD, UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
110
VALVE
113
SPRING BY-PASS VALVE
116
SCREW PLUG
119
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
123
SCREW PLUG
125
SEAL RING OIL DRAIN 26X34 MM
128
SCREW PLUG , Replaced By: N007604014110
128
SCREW PLUG FUEL TANK
134
SEALING RING. SEAL RING ENGINE BREATHING
137
OIL COOLER ,121800907 845891
137
OIL COOLER
137
OIL COOLER , ORDER NUMBER: 001 188 88 01/33
137
OIL COOLER , ORDER NUMBER: 001 188 89 01/33
137
OIL COOLER ,907 845891
143
SEAL. GASKET , Replaced By: A3661880880
146
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
146
SCREW CABLE HARNESS MOUNTING
146
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
149
SPRING WASHER , Replaced By: N000137008212
149
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
152
GASKET , Replaced By: A4421880280
152
GASKET , Replaced By: A4421880580
152
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
155
SCREW , Replaced By: N304017010047
155
SCREW CONNECTOR TO REAR SHIFTING ROD
155
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
158
SPRING WASHER STEERING COLUMN BRACKET TO CAB
