Mercedes N304017010043 - БОЛТ М10

OM 442 LA 446.938 FROM PRODUCTION 01/2004

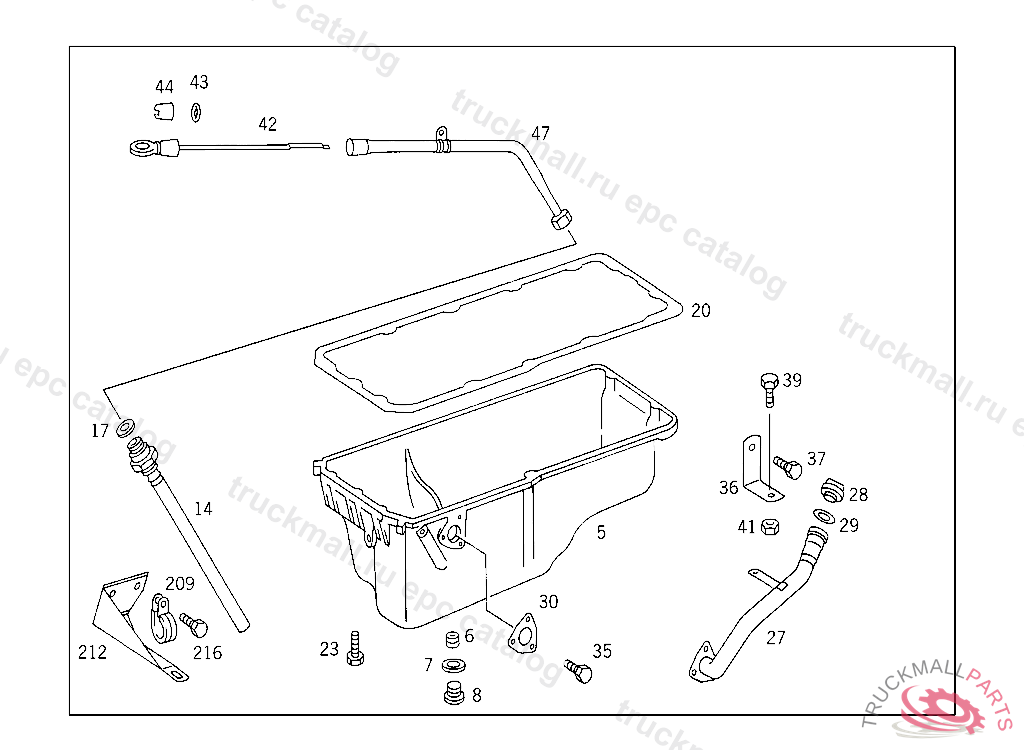

01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY

Поз.
Артикул
Описание
5
A4420105713
OIL PAN
6
N900421026000
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
7
A4039970032
SCREW PLUG
8
N007603026109
SEAL RING OIL DRAIN 26X34 MM
14
A4421800152
SUCTION PIPE OIL SCAVENGING
17
A4220140076
WASHER SUCTION PIPE TO OIL PAN
20
A4420141122
GASKET OIL PAN TO CYLINDER CRANKCASE
23
N910105008014
SCREW CLAMP ON BRACKET
23
A0059904004
SCREW CONTROL ARM TO CENTRAL BEARING
27
A4420100864
OIL FILLER NECK
28
A0000180702
CAP OIL REFILLING
29
A1020180380
GASKET
30
A4420180080
GASKET OIL FILLER NECK
35
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
36
A4420183240
BRACKET OIL FILLER PIPE TO CYLINDER CRANKCASE
37
N910105010006
SCREWM 10X20
37
N304017010043
SCREW BRACKET TO CONSOLE
39
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
41
N913023008002
NUT ENGINE MOUNTING M8
42
A4420100672
OIL DIPSTICK
43
A0149974148
SEAL RING
44
A3660180106
CAP
47
A4420101966
GUIDE TUBE
209
N916016014201
CLAMP COOLING WATER LINE TO FIRE WALL
212
A4420183040
BRACKET OIL DIPSTICK GUIDE TUBE TO BRACKET
216
N304017010040
SCREW STRUT TO CROSS MEMBER M 10X25
999
A4239970172
FITTING OIL SCAVENGING
999
A0004358382
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
