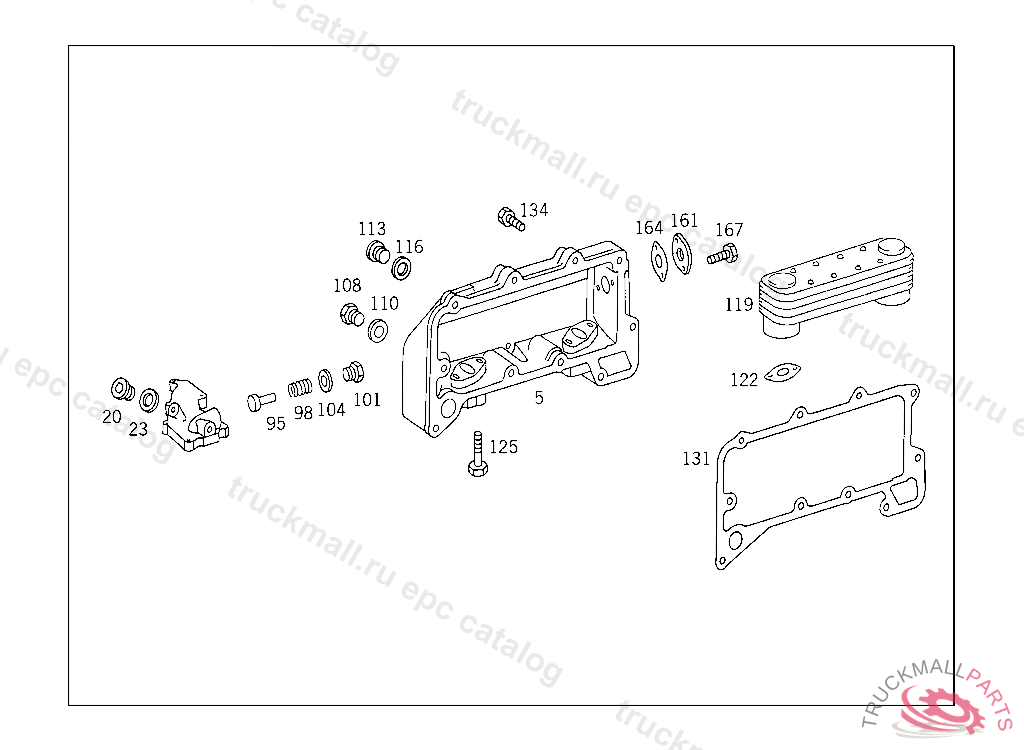

Поз.
Артикул
Описание
5
HOUSING OIL COOLER, ORDER ADDITIONALLY: N 000908 030002 U. N 0076030030400
20
SCREW PLUG
23
SCREW TO PLUG THE OIL PASSAGES
95
VALVE
98
SPRING BY-PASS VALVE
101
SCREW PLUG
104
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
108
SCREW PLUG
110
SEAL RING
113
SCREW PLUG, FILLING OIL DRAIN
116
SEALING RING
119
OIL COOLER
119
OIL COOLER
122
SEAL. GASKET , Replaced By: A3661880880
125
SCREW LOCKING BOLT M8X65,V 208920
131
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
134
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
134
SCREW SHIFTING ROD TO SHIFT LEVER
161
FLANGE (BLIND FLANGE)
164
GASKET HEATING PIPE TO ENGINE
167
SCREW BRACKET TO SIDE MEMBER M8X20
