Поз.
Артикул
Описание

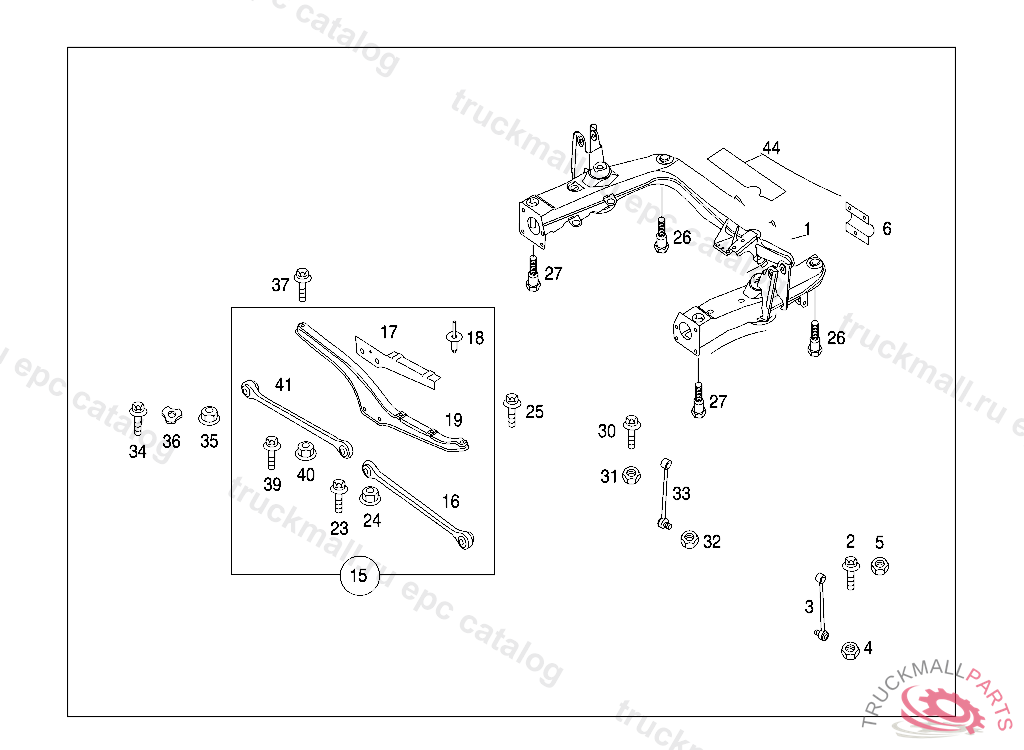

1
FRAME-TYPE INT. SUPPORT
1
FRAME-TYPE INT. SUPPORT
1
FRAME-TYPE INT. SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20020701, Replaced By: Q0012983V002000000
1
FRAME-TYPE INT. SUPPORT , 19991115, Replaced By: Q0005502V003000000
1
FRAME-TYPE INT. SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 19991115, Replaced By: Q0005502V004000000
1
FRAME-TYPE INT. SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20000911, Replaced By: Q0005502V005000000
1
FRAME-TYPE INT. SUPPORT , Replaced By: Q0007446V003000000
2
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
3
HANGER STABILISER REAR AX
4
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
4
NUT M10 -10
4
NUT
5
NUT M8 -10
6
COVER INTEGRAL CARRIER RH
15
CROSSMEMBER REAR AXLE COM , H 03875319990406
15
CROSSMEMBER REAR AXLE COM , H 03875319990406 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. H 10000319991115, Replaced By: Q0001766V019000000
15
CROSSMEMBER REAR AXLE COM , H 03875219990406
16
CONTROL ARM
17
SHIELD CROSSMEMBER REAR A
18
BLIND RIVET 4.8 X16
19
CROSSMEMBER REAR AXLE COM
23
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
23
SCREW TORX M7 X 23
24
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
24
NUT M10 -10
25
TORX SCREW M6 X 20 - 8.8TORX M10 X 40 S - 10.9, Replaced By: N910105010011
25
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
26
SPECIAL SCREW WITH SHANK , Replaced By: Q0007891V002000000
26
SPECIAL SCREW WITH SHANK , Replaced By: Q0007891V003000000
26
SPECIAL SCREW WITH SHANK , Replaced By: Q0007891V004000000
26
SPECIAL SCREW WITH SHANK
27
SPECIAL SCREW WITH SHANK , Replaced By: Q0007892V002000000
27
SPECIAL SCREW WITH SHANK , Replaced By: Q0007892V003000000
27
SPECIAL SCREW WITH SHANK , Replaced By: Q0007892V004000000
27
SPECIAL SCREW WITH SHANK
27
BOLT
30
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
31
NUT M8 -10
32
NUT
32
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
32
NUT M10 -10
33
HANGER STABILISER REAR AX
34
HEXALOBULAR BOLT TO LEFT STEERING KNUCKLE, FRONT AXLE
34
SCREW TORX M7 X 23
35
NUT BRACKET TO SIDE MEMBER M12X1.5
36
FUSE
37
TORX SCREW M6 X 20 - 8.8TORX M10 X 40 S - 10.9, Replaced By: N910105010011
37
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
39
SCREW TORX M7 X 23
39
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
40
NUT M10 -10
40
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
CONTROL ARM
44
SCUFF PROTECTION FOIL I-B
44
SCUFF PROTECTION FOIL I-B
44
SCUFF PROTECTION FOIL I-B , Replaced By: Q0006396V002000000
