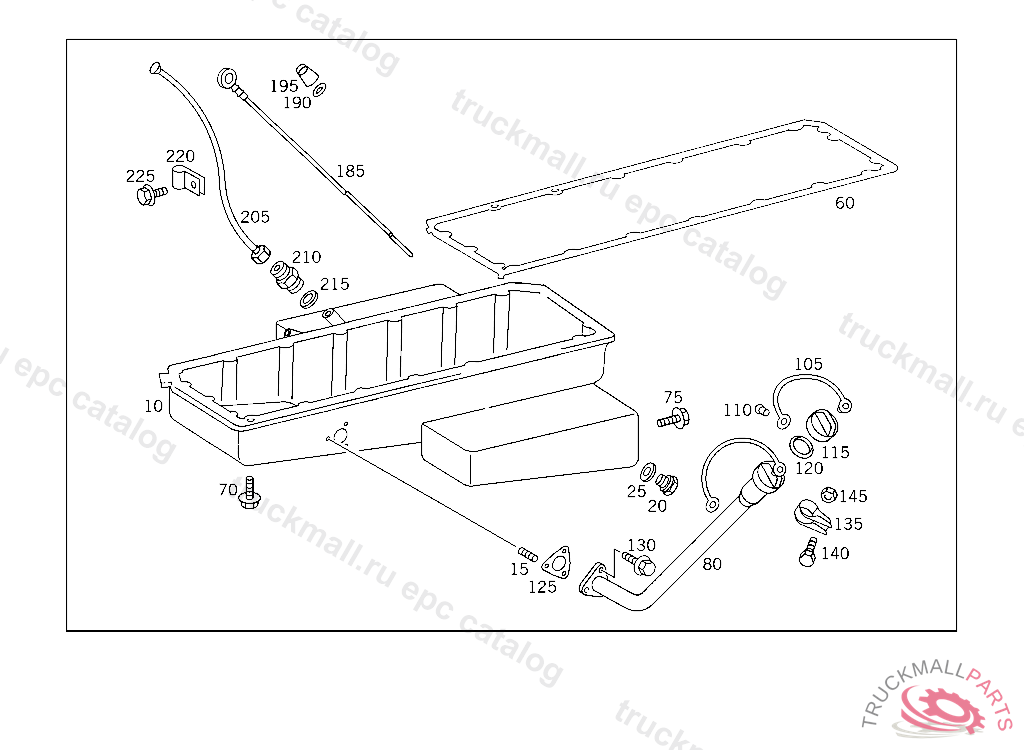

Поз.
Артикул
Описание
10
OIL PAN
15
THREADED INSERT
20
SCREW PLUG
25
SEAL RING OIL DRAIN 26X34 MM
60
GASKET OIL PAN TO CYLINDER CRANKCASE
70
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE M8X130
70
SCREW CLAMP ON BRACKET
75
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
80
OIL FILLER NECK
105
BRACKET (OIL FILLER PIPE),D 200054
110
RIVET ,800701
115
COVER OIL FILLER NECK,D 200054
120
GASKET COVER TO FITTING
120
GASKET , Replaced By: A1020180080
125
GASKET OIL FILLER NECK
130
SCREW STOP TO BATTERY CASE
135
BRACKET BREATHER PIPE
140
SCREW CABLE HARNESS MOUNTING
145
NUTM8X20
185
OIL DIPSTICK
190
SEAL RING
195
CAP
205
GUIDE TUBE OIL DIPSTICK
210
FITTING , Replaced By: N915013008002
215
SEAL RING FROM FUEL TANK TO FUEL TANK
220
CLAMP GUIDE TUBE TO OIL FILLER PIPE
225
SCREW PUMP TO BRACKET
999
OIL SEPARATOR
999
OIL SEPARATOR AT CYLINDER HEAD COVER
999
HOSE , NOT USED
999
CLAMP25-40X13 MM
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
