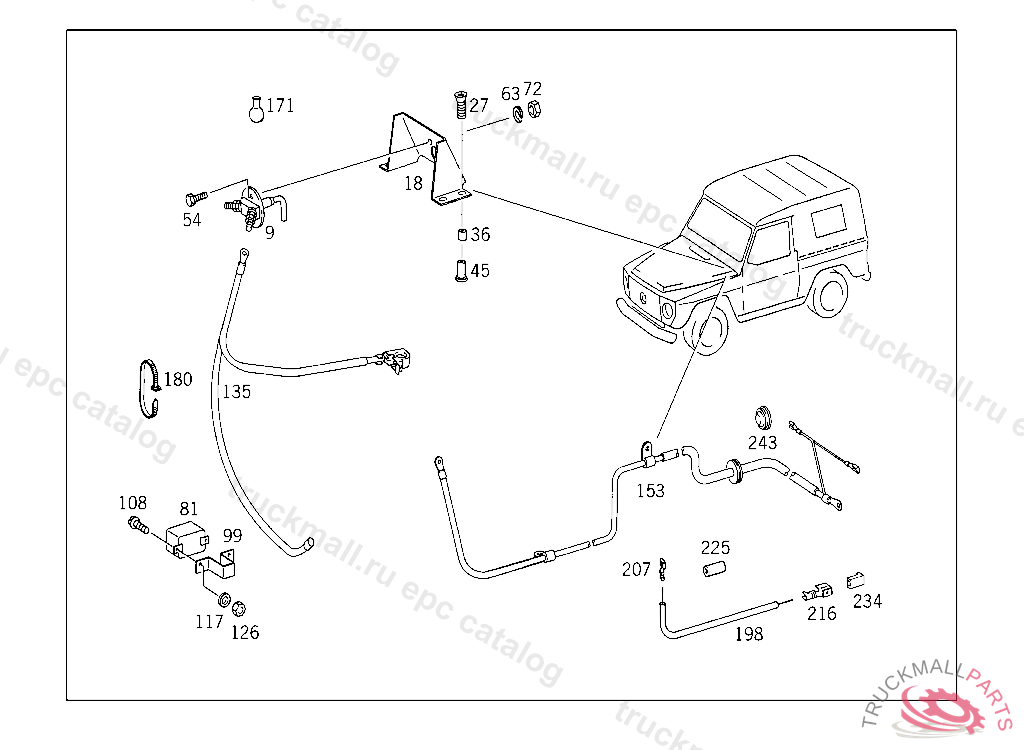

Поз.
Артикул
Описание
9
SWITCH (BATTERY MASTER SWITCH)
18
BRACKET BATTERY MASTER SWITCH, NOT USED
27
SCREW
36
SLEEVE BRACKET MOUNTING, NOT USED
45
RIVETED NUT BRACKET MOUNTING, NOT USED
54
SCREW COVER PLATE TO COVER PLATE M 6 X 12
54
SCREW , Replaced By: N304017006018
63
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
72
NUT BALL PIVOT TO LEVER
81
RELAY
81
RELAY
99
BRACKET
108
SCREW
117
WASHER , Replaced By: N000433005304
117
WASHER BOOT TO CAB FLOOR
126
NUT TACHOGRAPH TO BRACKET
135
GROUND STRAP FROM BATTERY TO BATTERY MASTER SWITCH, NOT USED
135
GROUND STRAP FROM BATTERY TO MASTER SWITCH
135
GROUND STRAP , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 037334, Replaced By: A4615400741
153
GROUND STRAP , Replaced By: A4605401341
153
GROUND STRAP BODY 24 V
171
BOOT BATTERY MASTER SWITCH
180
LOOM TIE LINE MOUNTING 280 MM
198
ELECTRIC CABLE
207
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
207
PIN BUSHING RADIO SET
216
PLUG DISTRIBUTOR2.50 MM2
225
GROMMET
234
PIN BUSHING HOUSING UNIPOLAR
243
GROMMET
999
KEY , Replaced By: A0005451635
999
KEY
999
BRACKET
999
LOOM TIE , Replaced By: A0019978390
999
PIN BUSHING , Replaced By: A0015451326
999
GROUND STRAP FROM BATTERY TO BATTERY MASTER SWITCH
999
BRACKET
999
BRACKET
999
SCREW , Replaced By: N304017006018
