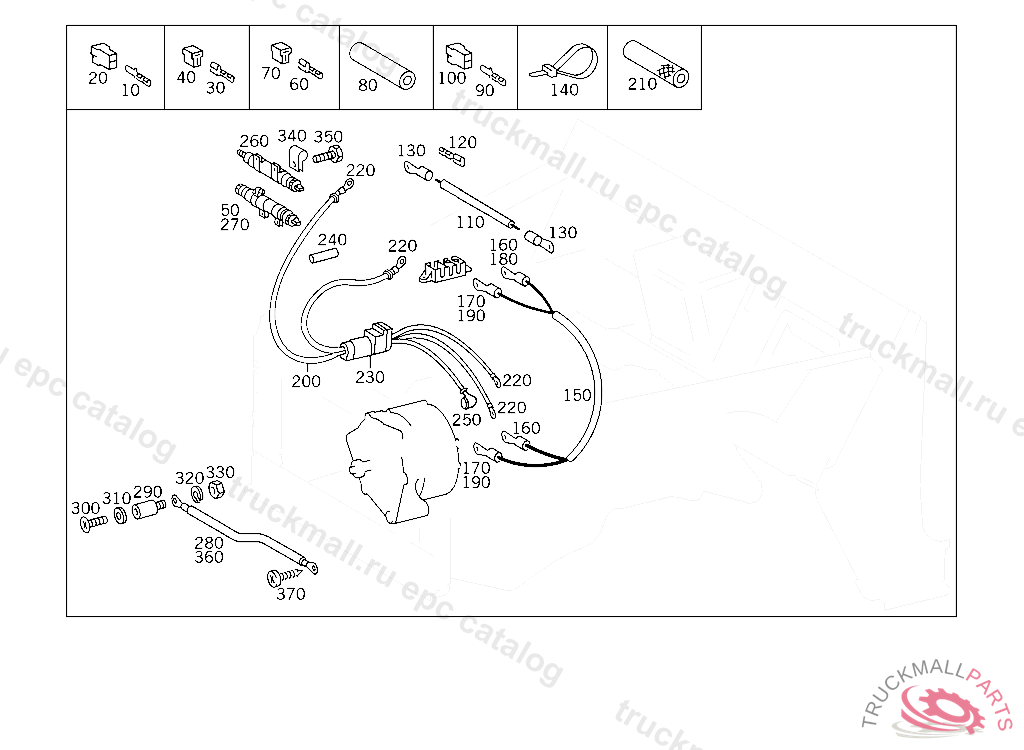

Поз.
Артикул
Описание
10
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
10
PLUG , Replaced By: A0015458628
20
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
30
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
30
PIN BUSHING , Replaced By: A0075458226
40
PIN BUSHING HOUSING BIPOLAR
50
CONDENSER
60
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
60
PIN BUSHING , Replaced By: A0075458226
70
PIN BUSHING HOUSING BIPOLAR
80
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
90
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
90
PLUG , Replaced By: A0015458628
100
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
110
ELECTRIC CABLE (GROUND CABLE)
120
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
130
CABLE SHOE. CABLE LUGA 5-6
130
CABLE SHOEA 6-2,5
140
LOOM TIE LINE MOUNTING 280 MM
150
CABLE HARNESS FROM ALTERNATOR TO CABLE CONNECTOR
160
CABLE SHOEA 6-6
170
CABLE SHOE. CABLE LUGH2.11/12, A4-2.5 TO 0045424420 / 4520
180
GROMMET3.0 MM
190
GROMMET1.75 MM
200
CABLE HARNESS THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION
210
SCREENING METAL BRAID THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION 440 MM
220
CABLE SHOEA 6-6
220
CABLE SHOE. CABLE LUGH2.11/12, A4-2.5 TO 0045424420 / 4520
220
CABLE LUG. CABLE SHOE6-16
230
GROMMET
240
GROMMET1.75 MM
250
BOOT HEATER PLUGS
250
BOOT , Replaced By: A0005463335
260
CONDENSER , Replaced By: A0008210474
260
INTERFERENCE SUPPRESSOR SUPPRESSOR FILTER
270
CONDENSER ALTERNATOR
280
GROUND STRAP FROM IGNITION COIL TO CYLINDER HEAD, 200 A 086780 280,283 F 013043
280
GROUND STRAP , Replaced By: A1155400241
290
RUBBER BUFFER THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION
300
SCREW CENTRAL PILLAR,BOTTOM
310
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
320
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
330
NUT BALL PIVOT TO LEVER
340
CLAMP FEED LINE TO THERMOSTAT
350
SCREW PUMP TO BRACKET
350
SCREW , Replaced By: N304017006016
360
GROUND CABLE. GROUND STRAP , Replaced By: A1165401941
360
GROUND STRAP VENTILATION CASE
360
GROUND STRAP IGNITION COIL
360
GROUND STRAP FROM IGNITION COIL TO CYLINDER HEAD, 200 A 086780 280,283 F 013043
370
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
999
GROMMET FROM ALTERNATOR TO CABLE CONNECTOR
999
CABLE HARNESS SUPPRESSOR FILTER
999
BRACKET ALTERNATOR AIR INTAKE HOSE TO CONSOLE
