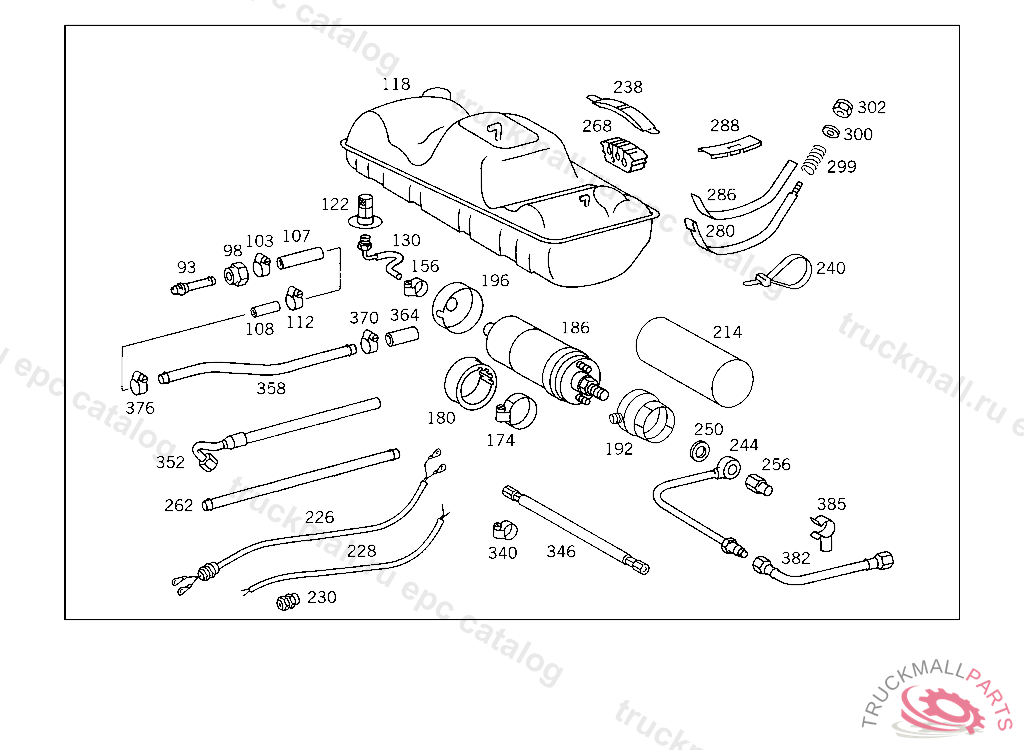

Поз.
Артикул
Описание
93
CONNECTOR FUEL LINE
98
UNION NUT RETURN
103
CLAMP LINE CONNECTION
107
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
108
HOSE (VENT VALVE), 055662 903941
112
CLAMP LINE CONNECTION
118
FUEL TANK
122
FUEL STRAINER
130
FUEL HOSE
156
HOSE CLAMP LINE MOUNTING
156
CLAMP , Replaced By: A0059970190
174
CLAMP , Replaced By: A2109970690
174
LOOM TIE MAJOR,C 241287 FROM IDENT. NO. C 241286 TO C 258983 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO C 241286 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. C 241287
180
RUBBER RING FUEL PUMP
186
FUEL PUMP USE: A 4614700094
186
AUXILIARY PUMP FUEL TANK
192
HOUSING FUEL FEED PUMP
196
CAP FUEL FEED PUMP
214
INSULATING HOSE FUEL FEED PUMP
226
CABLE HARNESS ELECTRIC
228
GROUND CABLE1530 MM
230
SCREW CONNECTION
238
BRACKET FUEL LINE TO FUEL TANK
238
BRACKET , Replaced By: A4634710941
240
LOOM TIE LINE MOUNTING 280 MM
244
LINE FUEL PUMP AND TANK
244
LINE , Replaced By: A4634701864
250
SEAL RING , Replaced By: N007603012102
250
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
256
NUT
262
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
268
DAMPING STRIP AT TANK
280
STRAP FUEL TANK MOUNTING
280
STRAP , Replaced By: A4614700140
286
SHIM345X35 MM
286
GASKET LEFT FUEL TANK
288
GASKET FRONT LEFT TO A 461 470 01 04
288
GASKET RIGHT
299
SPRING , 120 023429 123 010750 126 011171 130 017637
300
WASHER EXHAUST MUFFLER TO STRAP
300
WASHER , Replaced By: N000125008443
302
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
340
CLAMP ,906514
346
HOSE BETWEEN FUEL LINE AND FUEL PUMP 280 MM
352
LINE FUEL LINE TO ENGINE
358
LINE ENGINE RETURN LINE
364
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
370
CLAMP
376
CLAMP LINE CONNECTION
376
HOSE CLAMP HOSE FASTENING 9/13MM
382
HOSE
385
CLAMP ELECTRIC CABLE TO BRAKE HOSE
999
SCREW , Replaced By: N304017005011
999
SEAL RING FITTING TO AXLE HOUSING
999
SEAL RING LINE CONNECTION
999
SCREW COVER PLATE TO BRACKET
999
RIVET BRACKET TO CAB, 055661 903740
999
LOCK WASHER STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET
999
NUT SENDER UNIT
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
SCREW FILLER NECK M 6X16
999
NUT EXHAUST BRAKE VALVE, CONNECTION: "20"
999
HOLLOW SCREW HEATING CONNECTION
999
CLAMP LINE MOUNTING
999
CLAMP LINE CONNECTION
999
CLAMP , Replaced By: A0059970190
999
CLAMP , Replaced By: A0069972790
999
CLAMP , Replaced By: A0069970890
999
HOSE LEAK LINE, ORDER BY THE METER
999
HOSE ADDITIONAL FUEL TANK, ORDER BY THE METER
999
CLAMP CHECK VALVE,K 169122
999
SCREW
999
WASHER , Replaced By: N000125008443
999
CYLINDRICAL PIN DIFFERENTIAL LOCK
999
HOSE FUEL HOSE TO FUEL PUMP 120 MM, ORDER BY THE METER
999
CLAMP , Replaced By: A0005465143
999
BRACKET PUMP,FILTER & FUEL ACCUMULATOR TO BRACKET
999
HOSE BETWEEN BREATHER PIPE AND FUEL TANK
999
BREATHER AT FRAME ABOVE FUEL TAK
999
BREATHER PIPE , Replaced By: A0004291001
999
FILLER NECK
999
FILLER NECK
999
FILLER CAP
999
FILLER NECK
999
FILLER CAP
999
FILLER CAP
999
FILLER NECK
999
COVERING HEAT INSULATION FUEL TANK TO A 461 470 00 04
999
BRACKET FILLER NECK TO BODY, NOT USED
999
FUEL STRAINER
999
FUEL TANK PARTS KIT, CONVERSION TO PLASTIC FUEL TANK POSSIBLE WITH MANUFACTURER'S CONFIRMATION ORDER ADDITIONALLY: A 463 476 24 26
999
BUFFER BRACKET TO FRAME
999
RING FILLER CAP
999
LINE , Replaced By: A0004290801
999
LINE FROM FUEL PUMP II TO FUEL FILTER II
999
LINE , Replaced By: A0004290801
999
HOSE BETWEEN BREATHER AND GRAVITIY VALVE
999
HOSE FROM FUEL FILTER I TO FUEL PUMP II
999
HOSE FROM FUEL FILTER II TO FUEL ACCUMULATOR
999
HOSE BETWEEN BREATHER PIPE AND FILLER NECK, 059608(WHC: WDB) 904079(WHC: VAG)
999
HOSE FROM FILTER TO THERMOSTAT 140 MM
999
HOSE DE-AERATION,055662
999
LINE , Replaced By: A0004290801
999
HOSE FROM FILTER TO INJECTION PUMP 185 MM
999
HOSE FUEL LINE LEADING TO FILTER 50 MM
999
DAMPING STRIP AT FRAME ABOVE FUEL TAK
999
SHIM RIGHT FUEL TANK, 059608(WHC: WDB) 904079(WHC: VAG)
999
SHIM LEFT TO A 461 470 00 04
999
PROTECTIVE PLATE AT TANK, 059607(WHC: WDB) 904078(WHC: VAG)
999
EXTENSION , Replaced By: A4604730509
999
EXTENSION CONNECTION OF FUEL TANKS
999
BRACKET
999
BRACKET
999
SEAL RING
999
SCREW PLUG , Replaced By: A1104700486
999
SEAL RING
999
BRACKET AT VALVE
999
FUEL TANK , CONVERSION TO PLASTIC FUEL TANK POSSIBLE WITH MANUFACTURER'S CONFIRMATION
999
FUEL TANK , Replaced By: A4604701201
999
BRACKET FUEL FILTER TO FUEL ACCUMULATOR
999
STRAP
999
FUEL FILLER CAP. FILLER CAP LESS BREATHING, LESS KEYS, LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
999
FUEL TANK , Replaced By: A4604700701
999
FILLER CAP
999
CHAIN
999
FUEL STRAINER
999
DAMPING STRIP40.5X18X18 MM
999
BRACKET FUEL PUMP AND FUEL FILTER
999
BOOT , 059608(WHC: WDB) 904079(WHC: VAG)
999
GROMMET FOR PASSAGE OF LINE
999
HOSE TO ELEMENT AT FRONT SEAT
999
FUEL HOSE FROM FUEL FILTER TO FUEL ACCUMULATOR, 107.024 025530 107.044 053366 116.032,033 089514
999
LOOM TIE , Replaced By: A1149970590
999
GROMMET
999
SEAL RING
999
FUEL STRAINER
999
HOSE FUEL PUMP
999
HOSE FROM RETURN LINE TO FUEL TANK, 059608(WHC: WDB) 904079(WHC: VAG)
999
SEAL RING FUEL STRAINER SCREEN SEALING
999
LOOM TIE LINE MOUNTING
999
CLAMP BOOT TO STEERING,V 207570
999
LOOM TIE FLEXIBLE SHAFT
999
FUEL PUMP , ONLY FOR R.S.A.
999
FUEL PUMP , Replaced By: A0030915301
999
FUEL FILTER
999
FUEL FILTER
999
FUEL FILTER
999
VALVE COMBINATION VALVE,906515
999
LINE12 MM, ORDER BY THE METER4 691315
999
INSULATION
999
VALVE
