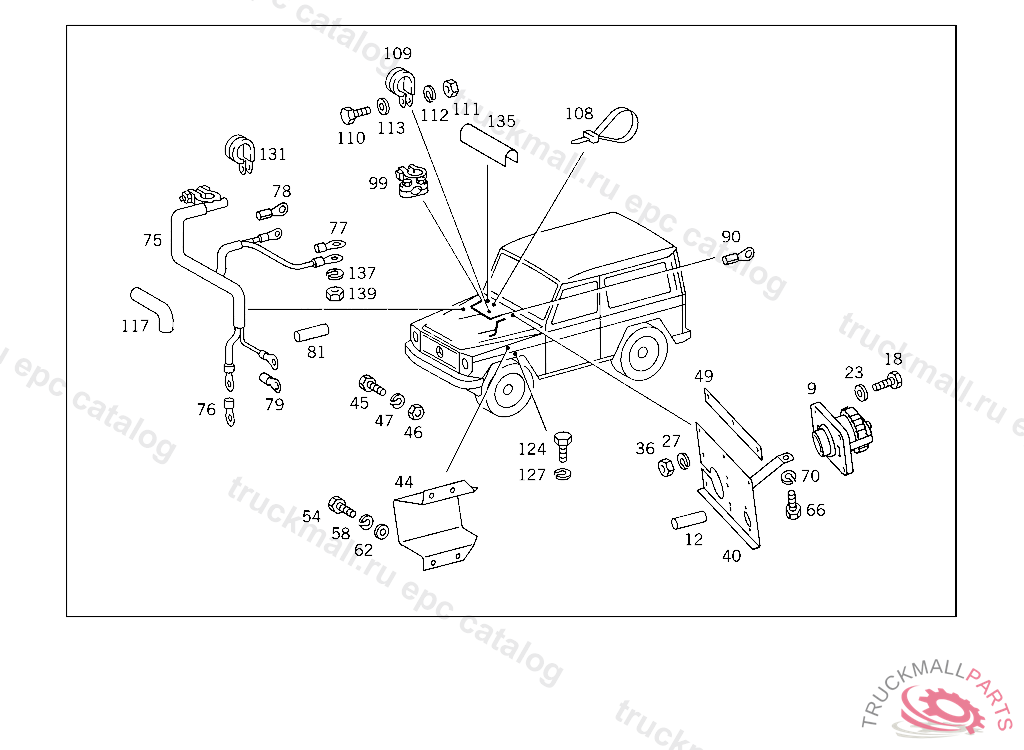

Поз.
Артикул
Описание
9
PLUG SOCKET BIPOLAR
9
PLUG SOCKET JUMP-START
12
GROMMET , Replaced By: A0009970781
12
GROMMET LINE MOUNTING 10.0 MM
18
SCREW CAB FLOOR COVERING M 6X25
18
SCREW LICENSE PLATE TO BRACKET
18
SCREW COVER PLATE TO BRACKET
18
SCREW , Replaced By: N304017006020
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
27
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
36
NUT BALL PIVOT TO LEVER
40
BRACKET PLUG SOCKET
44
BRACKET
45
SCREW POS. POLE
46
NUT POS. POLE
47
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
49
BRACKET BATTERY MASTER SWITCH
54
SCREW COVER PLATE TO COVER PLATE M 6 X 12
54
SCREW , Replaced By: N304017006018
58
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
66
SCREW COVER PLATE TO BRACKET
70
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
75
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
75
POS.CABLE , Replaced By: N922004035000, +001N072332009100
75
ELECTRIC CABLE , Replaced By: N922004035202
75
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
76
CABLE SHOE. CABLE LUGH2.11/12, A4-2.5 TO 0045424420 / 4520
77
CABLE SHOEA 6-2,5
78
CABLE SHOE CABLE HARNESS CONNECTION/SCREW-CONNECTION
79
CABLE SHOE BATTERY CABLE
81
GROMMET3.0 MM
81
GROMMET
81
GROMMET1.75 MM
90
CABLE SHOE
90
CABLE SHOE NEG. CABLE
99
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
99
SCREW TERMINAL BATTERY POS.POLE
108
LOOM TIE LINE MOUNTING 280 MM
108
LOOM TIE
108
LOOM TIE FLEXIBLE SHAFT
108
LOOM TIE , Replaced By: A1149970590
109
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
110
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
111
NUT BALL PIVOT TO LEVER
112
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
113
WASHER COMPRESSED AIR LINE TO BRACKET
113
WASHER , Replaced By: N009021006208
117
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
124
SCREW , Replaced By: N304017006034
124
SCREW COVER PLATE TO COVER PLATE M 6 X 10
127
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
131
CLAMP PIPE ON FAN SHROUD
131
CLAMP , Replaced By: N916016010211
131
CLAMP , Replaced By: N000000001045
131
CLAMP CABLE HARNESS MOUNTING
135
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
137
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
139
NUT BALL PIVOT TO LEVER
999
BOOT BATTERY MASTER SWITCH
999
PLUG SOCKET , Replaced By: N072594035100, +001A4609975281, +001N046211010106, +002N922004035102
999
POS.CABLE , Replaced By: N922004035000, +001A0005468430, +001N046234008004
999
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
