Mercedes N000084004151 - Болт

290 GDT 461.327 FROM CHASSIS 144791

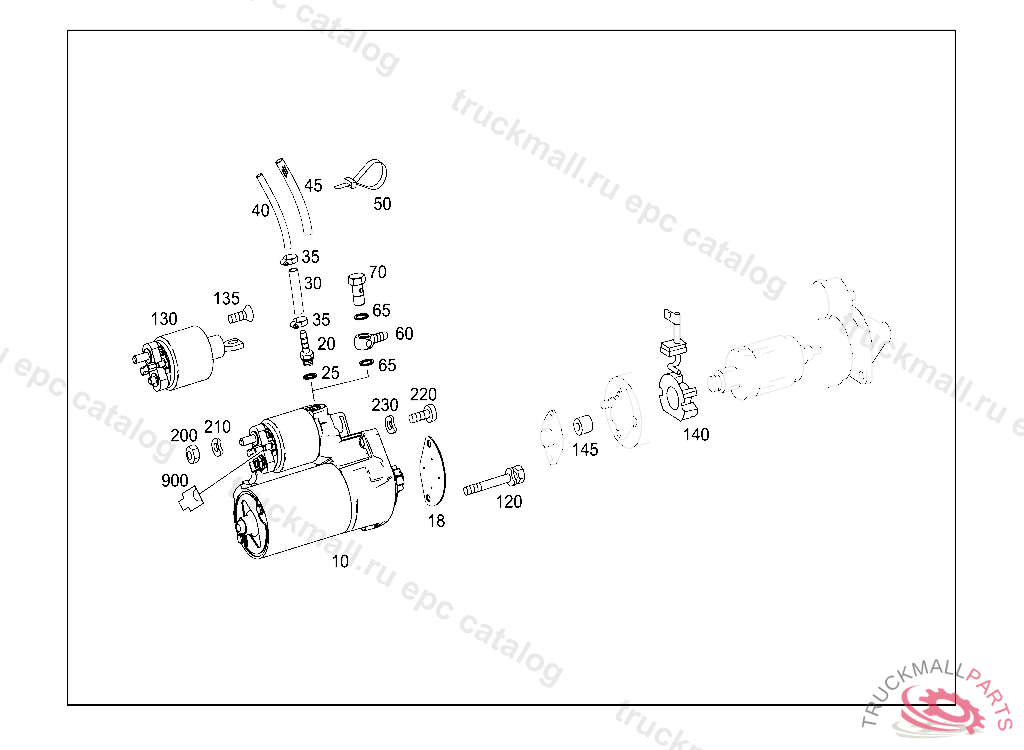

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 023 STARTER

Поз.
Артикул
Описание
10
A0061519801
STARTER MOTORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
A0061516101
STARTERBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0061519801
130
A0021520010
SOLENOID SWITCH STARTING MOTOR BOSCH,TO A 006 151 63 01
135
A0009906499
BOLT FASTENING SOLONOID SWITCH BOSCH,TO A 006 151 56 01
140
A0011516514
CARBON BRUSH SET STARTING MOTOR BOSCH,TO A 006 151 63 01
145
A0001516850
SINTERED BUSH. BUSHING COMMUTATOR END SHIELD TO A 004 151 69 01, A 005 151 06 01
200
N304032008006
NUT
210
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
220
N000084004151
SCREW ,374026
230
N000137004202
SPRING WASHER ALTERNATOR CONNECTION D+
