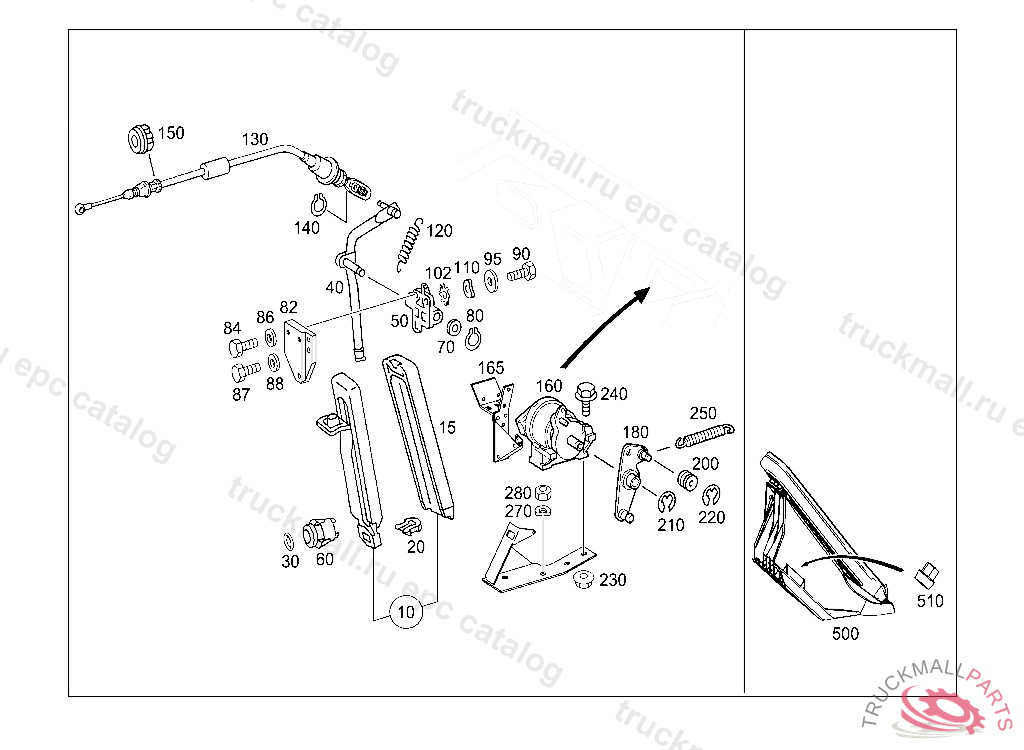

Поз.
Артикул
Описание
10
ACCELERATOR PEDAL
15
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
20
CLIP
30
SEAL RING KICK-DOWN SWITCH
40
LEVER ACCELERATOR PEDAL
40
LEVER
50
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
60
KICK-DOWN SWITCH. SWITCH KICK-DOWN
60
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
70
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
80
LOCK RINGTO 000 553 37 01,000 553 39 01,
82
SHIM
84
SCREW LICENSE PLATE TO BRACKET
86
WASHER COMPRESSED AIR LINE TO BRACKET
87
SCREW LICENSE PLATE TO BRACKET
88
WASHER COMPRESSED AIR LINE TO BRACKET
90
SCREW LICENSE PLATE TO BRACKET
90
SCREW PUMP TO BRACKET
95
WASHER COMPRESSED AIR LINE TO BRACKET
102
SERRATED WASHER BRACKET TO CAB FLOOR,4 411811
110
SPRING WASHER LICENSE PLATE TO BRACKET
120
SPRING
120
SPRING
130
BOWDEN CABLE TO ACCELERATOR PEDAL LEVER, X 16755320060816
140
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
150
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
160
SENDER UNIT
165
BRACKET MOUNTING, SENSOR
180
LEVER CONTROL LEVER
180
LEVER (REVERSING LEVER), A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
200
ROLLER , NOT USED
210
LOCK PLATE , 656999
220
LOCK PLATE RELEASE LEVER TO SHAFT
230
NUT , Replaced By: N913023006001
240
SCREW PUMP TO BRACKET
250
SPRING , NOT USED
270
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
280
NUT
500
ACCELERATOR PEDAL MODULE , A 90706420130924 L 03919220130930 V 00271820130930
500
ACCELERATOR PEDAL , A 90706420130924 L 03919220130930 V 00271820130930, Replaced By: A2043000100
