Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
290 GDT
›
461.327 FROM CHASSIS 144791
›
28 TRANSFER CASE
›

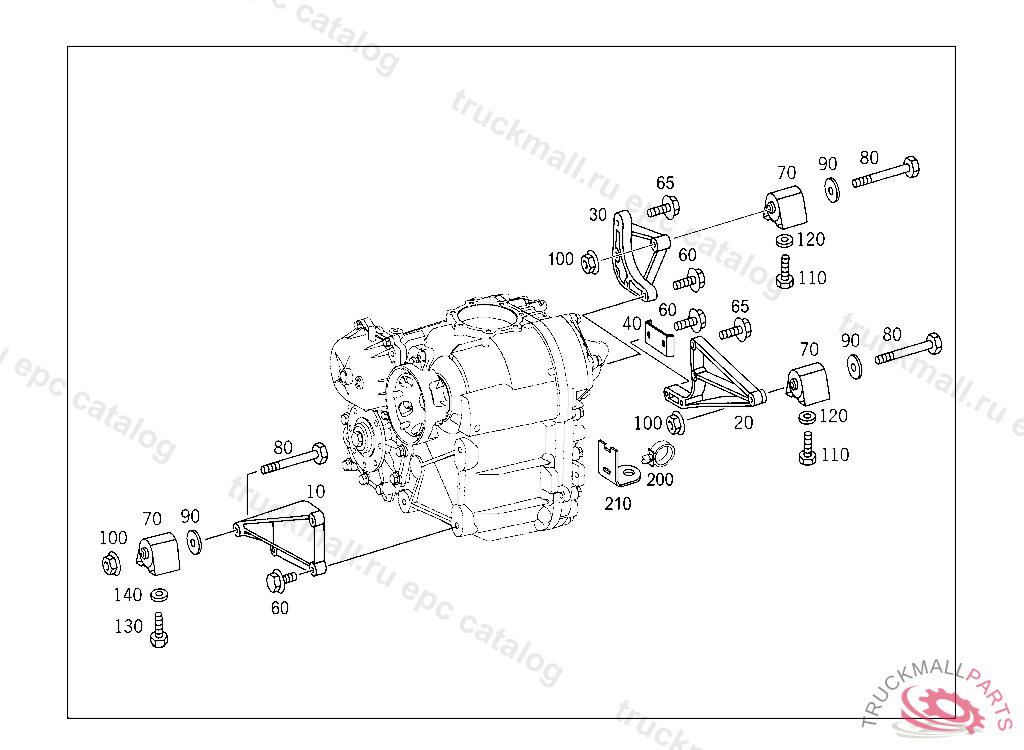

015 TRANSFER CASE SUSPENSION & SHIFTING MECHANISM
Mercedes N304017008021 - АВТОЗАПЧАСТЬ
290 GDT 461.327 FROM CHASSIS 144791
28 TRANSFER CASE - 015 TRANSFER CASE SUSPENSION & SHIFTING MECHANISM
Поз.
Артикул
Описание
10
A4632850902
SUPPORT TRANSFER CASE,FRONT
20
A4632850302
SUPPORT TO TRANSFER CASE REAR LEFT
30
A4632850402
SUPPORT TO TRANSFER CASE REAR RIGHT
40
A4632850140
BRACKET TRANSFER CASE
60
N910143010000
SCREW PLATE TO FRAME M 10X45
65
N910105010012
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
70
A4632800286
BEARING REAR RIGHT
70
A4632800386
BEARING FRONT
70
A4632800186
BEARING REAR LEFT
80
N914141012203
SCREW BEARING TO SUPPORT REAR LEFT M 12X1,5X140
80
N308765012019
HEXAGON HEAD BOLT BEARING TO SUPPORT REAR RIGHT M12X1,5X140
90
A3092410162
THRUST WASHER BEARING TO SUPPORT REAR RIGHT
100
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
100
A0009908350
NUT SHOCK ABSORBER MOUNTING
110
N304017008021
SCREW PIPE CLAMP
120
A1159905240
WASHER INTERMEDIATE BEARING TO FRAME
130
N304017008021
SCREW PIPE CLAMP
140
A1159905240
WASHER INTERMEDIATE BEARING TO FRAME
200
A0009955244
CLAMP
210
A4635451647
BRACKET
