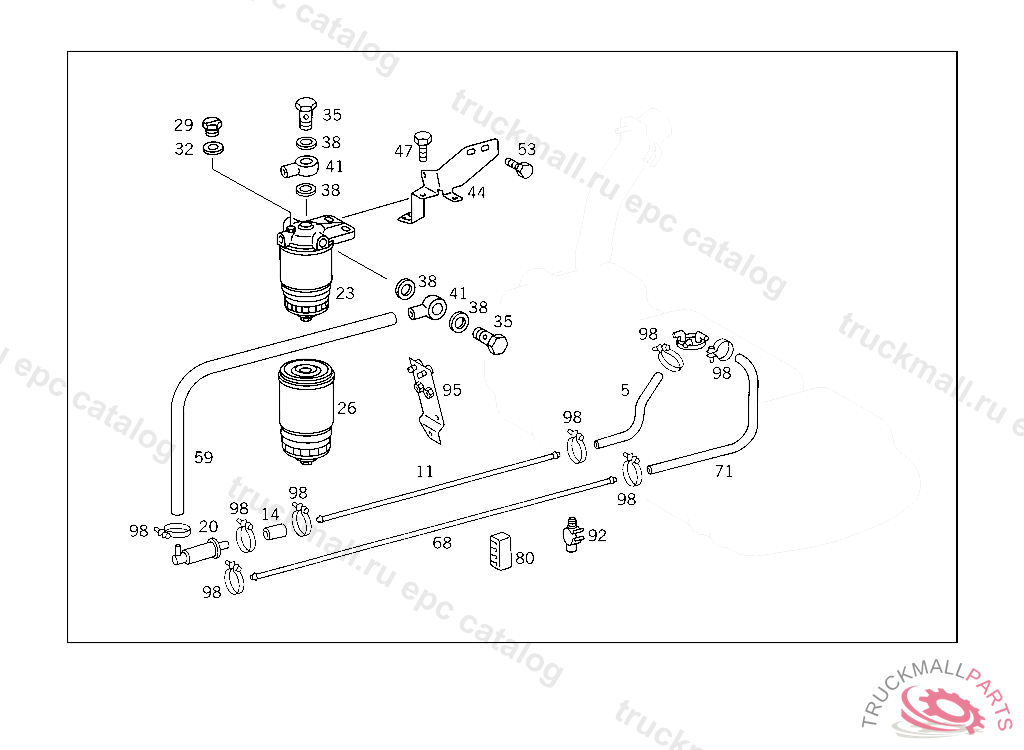

290 GDT - 461.327 TO CHASSIS 144225 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
5
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
11
LINE FEED LINE 3190 MM
14
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
20
FUEL FILTER
20
FUEL FILTER
59
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
68
LINE RETURN LINE 3390 MM
71
HOSE BETWEEN RETURN LINE AND FUEL TANK TO A 461 470 00 40
92
BRACKET LINE MOUNTING 11 MM
98
LOOM TIE
98
LOOM TIE FROM COOLING PIPE TO PUMP
