Поз.
Артикул
Описание

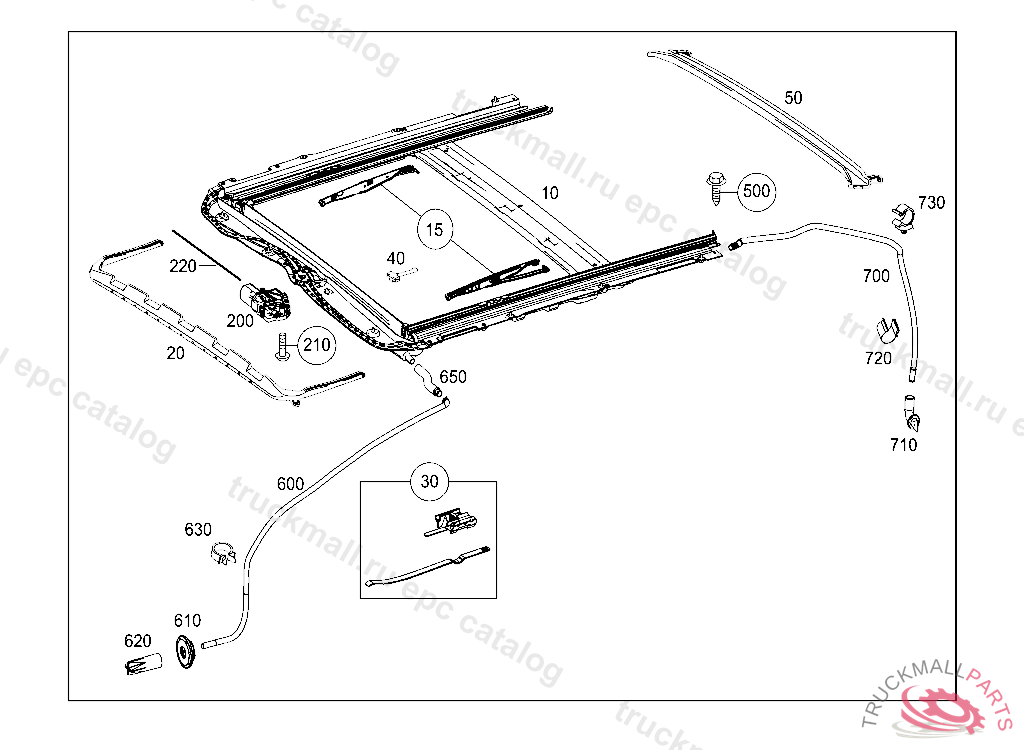

10
SLIDING ROOF FRAME
15
SLOTTED SLIDE VALVE LEFT AND RIGHT PARTS KIT
20
AIR DEFLECTOR
30
BEARING F WIND DEFLECTOR LEFT AND RIGHT PARTS KIT
40
END STOP LEFT AND RIGHT SLIDING ROOF
50
RAIN CHANNEL
200
GEARED MOTOR
210
TS SCREW W HXL. SOCKET DELIVERY QUANTITY3 PCS.
220
ELECTRICAL WIRING HARNESS SLIDING ROOF
500
BOLT FRAME TO ROOF
500
TS HEX. HEAD TAPPING SCRE DELIVERY QUANTITY12 PCS., THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0179906301
600
HOSE LINE FRONT RIGHT
610
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
620
HOSE ASSEMBLY WATER DRAIN AT FRONT LEFT
630
CLAMP
650
HOSE ASSEMBLY AT FRAME, LEFT
700
HOSE ASSEMBLY RIGHT REAR SLIDING ROOF
700
HOSE ASSEMBLY LEFT REAR SLIDING ROOF
710
WATER DRAIN GROMMET HOSE LINE THROUGH RIGHT WHEEL WELL
720
BRACKET FUEL TANK BREATHING
730
LINE HOLDER WATER DRAIN
