Mercedes A0015453826 - Контактный штифт

G 270 CDI 461.345 FROM CHASSIS 144791

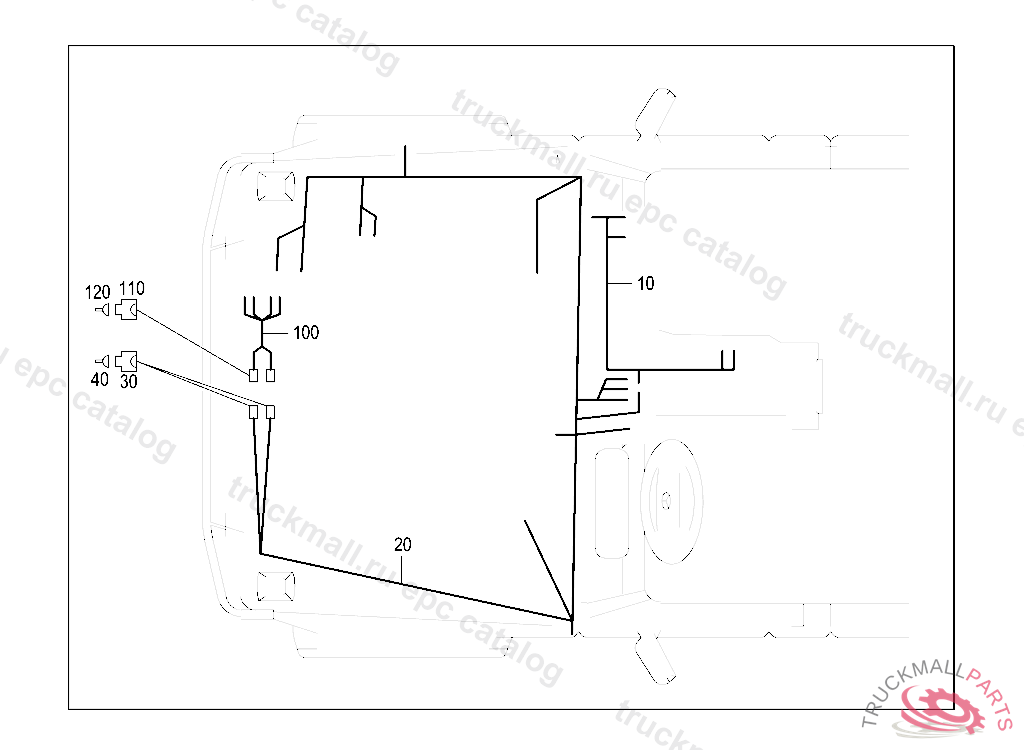

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 483 WIRING HARNESS FOR AIR CONDITIONING SYSTEM

Поз.
Артикул
Описание
10
A4618200913
ELECTRICAL WIRING HARNESS AIR CONDITIONER, X 16984720070131
10
A4618205515
WIRING HARNESS AIR CONDITIONER, X 16984620070131
20
A4618206515
WIRING HARNESS AIR CONDITIONER
20
A4615400333
WIRING HARNESS. ELECTRIC CABLE AIR CONDITIONER
30
A0085453828
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
30
A0085453728
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
40
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
100
A4615402432
EL. CABLE FAN MOTOR INTERFERENCE SUPPRESSION
110
A0095454028
PLUG HOUSING
110
A0095454128
COVER
120
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
