Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 270 CDI
›
461.345 FROM CHASSIS 144791
›
62 FRONT END, FRONT WALL
›

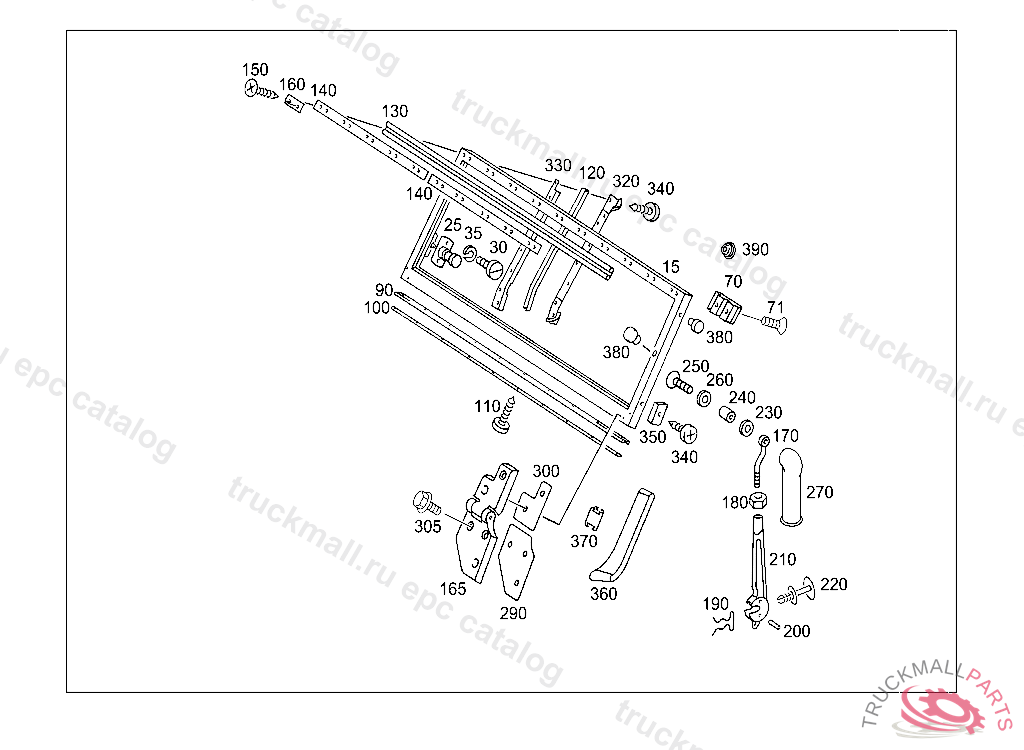

125 WINDOW FRAME IL. 1
Mercedes A4636710729 - РАМА
G 270 CDI 461.345 FROM CHASSIS 144791
62 FRONT END, FRONT WALL - 125 WINDOW FRAME IL. 1
Поз.
Артикул
Описание
25
A4636710729
FRAME WINDSHIELD, X 19271120110531
70
A4616710716
BRACKET SEALING FRAME
71
N000965006057
SCREW SCREENING PLATE
90
A4616710520
SEAL WINDSHIELD
100
A4616710054
LEDGE WINDSHIELD
110
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
120
A4616711220
SEAL DOOR TO WINDSHIELD, ORDER BY THE METER
165
A4616700052
HINGE RIGHT
165
A4616700152
HINGE LEFT
290
A4616710196
PAD BETWEEN HINGE & FRONT PANEL,BOTTOM
300
A4616710096
PAD BETWEEN HINGE & FRONT PANEL,TOP
320
A4616700239
SEALING FRAME RIGHT
320
A4616700139
SEALING FRAME LEFT
330
A4616710416
BRACKET RIGHT
330
A4616710316
BRACKET LEFT
340
N000000000447
TAPPING SCREW BRACKET MOUNTING
380
N915042007001
PLUG AIR INTAKE PIPE
390
A1239970181
GROMMET
