Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 280 CDI
›
461.370 FROM CHASSIS 144791
›
52 CHASSIS SHEET METAL / AIR INTAKE
›

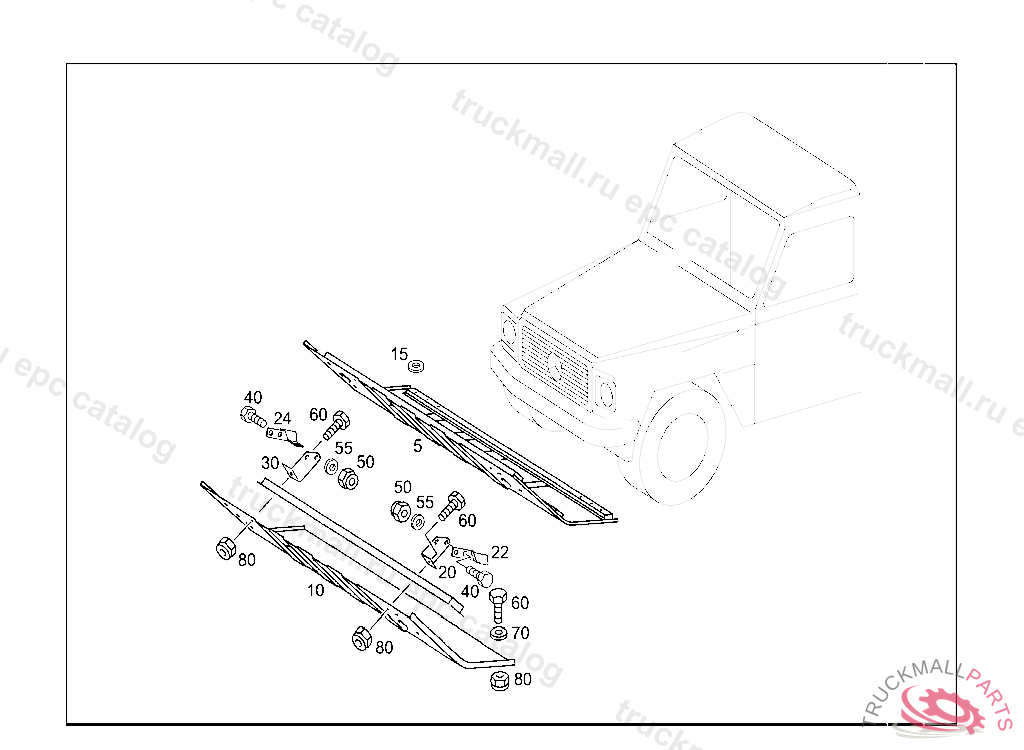

070 UNDERRUN PROTECTION IL. 1
Mercedes N304017010043 - БОЛТ М10
G 280 CDI 461.370 FROM CHASSIS 144791
52 CHASSIS SHEET METAL / AIR INTAKE - 070 UNDERRUN PROTECTION IL. 1
Поз.
Артикул
Описание
5
A4615205142
PROTECTIVE PLATE ENGINE PROTECTIVE PLATE, X 17664920090911
5
A4615205542
ENGINE GUARD
15
N007349010007
WASHER STRUT TO CROSS MEMBER
20
A4615240110
ANGLE LEFT, X 19271120110531
20
A4635240010
ANGLE. MOUNTING ANGLE LEFT
30
A4635240110
ANGLE. MOUNTING ANGLE RIGHT
30
A4615240210
ANGLE RIGHT
40
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
50
N000000003278
HEXAGON NUT
55
N000000003250
WASHER BRACKET TO CAB REAR PANEL
60
N304017010043
SCREW BRACKET TO CONSOLE
60
N304017010038
HEXAGON HEAD BOLT BRACKET TO BRACKET
70
N000000003386
WASHER P.T.O. TO TRANSMISSION
80
N910113010000
NUT STRAP TO BRACKET
