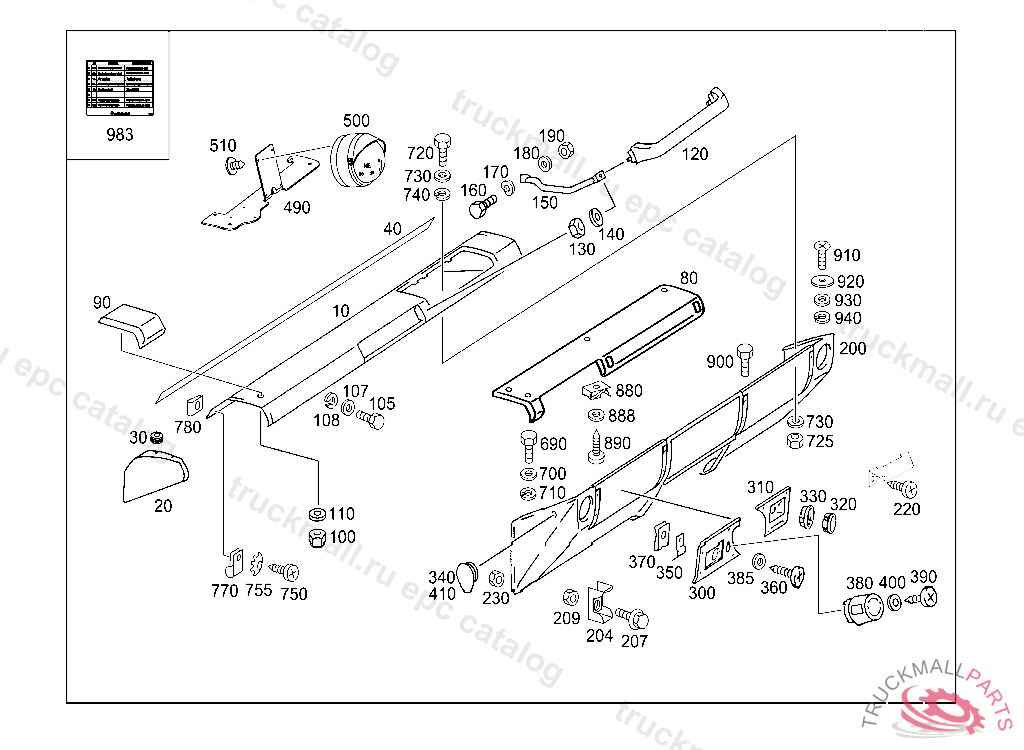

Поз.
Артикул
Описание
10
INSTRUMENT PANEL TOP, 7167011 QFT461A3090 DEEP GREY
20
COVER LATERAL RIGHT, X 18511720100226
20
COVER LATERAL LEFT
30
GROMMET FRONT BOTTOM
40
SEALING STRIP BETWEEN FRONT PANEL & INSTRUMENT PANEL TOP
80
COVER RIGHT
90
PANELING SUBSTRUCTURE LEFT
100
NUT IN CASE OF SUBSEQUENT INSTALLATION
105
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
107
WASHER BRACKET TO BATTERY CASE BRACKET
108
WASHER BRACKET TO BATTERY CASE BRACKET
108
LOCK WASHER BRACKET TO STEERING COLUMN END
110
WASHER
120
HANDLE GRAB HANDLE, 9007QFT461A3000 BLACK
130
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
WASHER PUMP TO CONSOLE
150
STAY INSTRUMENT PANEL BRACING
160
SCREW PIPE CLAMP
170
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
180
WASHER PUMP TO CONSOLE
190
NUT
200
INSTRUMENT PANEL
200
INSTRUMENT PANEL BOTTOM
204
BRACKET
207
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
209
NUT IN CASE OF SUBSEQUENT INSTALLATION
300
COVER INSTRUMENT PANEL,LEFT, 7007QFT461A3170 DARK GREY
320
GROMMET FILLER NECK
340
PLUG LEFT REAR BUMPER
350
BRACKET INSTRUMENT PANEL COVERING
360
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
370
FUSE INSTRUMENT PANEL COVERING
380
COVER STEERING COLUMN JACKET PANELLING
380
COVER STEERING COLUMN JACKET PANELLING
385
WASHER COMPRESSED AIR LINE TO BRACKET
390
SHEET METAL SCREW INTERIOR LAMP B 3.5X13
400
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
490
BRACKET INSTRUMENT PANEL
500
COMPASS
510
TAPPING SCREW BRACKET TO SUPPORT
690
SCREW LEVER TO SHAFT
700
WASHER BRACKET TO BATTERY CASE BRACKET
710
LOCK WASHER BRACKET TO STEERING COLUMN END
720
SCREW LEVER TO SHAFT
725
NUT IN CASE OF SUBSEQUENT INSTALLATION
730
WASHER BRACKET TO BATTERY CASE BRACKET
740
LOCK WASHER BRACKET TO STEERING COLUMN END
750
SHEET METAL SCREW MODULE TO HOUSING
750
TAPPING SCREW. SHEET METAL SCREW REAR BUMPER
755
TOOTHED WASHER ELECTRIC CABLE TO FUEL PUMP
770
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
780
LOCK WINDOW FRAME TO DOOR
880
FUSE. LOCK LIGHTING UNIT TO FRONT FENDER, TOP
888
WASHER IN EQUIPMENT BOX
900
SCREW PUMP TO BRACKET
910
SCREW SCREENING PLATE
920
WASHER
930
WASHER COMPRESSED AIR LINE TO BRACKET
930
COUNTERSUNK WASHER
940
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
983
STICKER INSTRUMENT PANEL LOWER PART
