G 280 CDI 461.390 FROM CHASSIS 144791

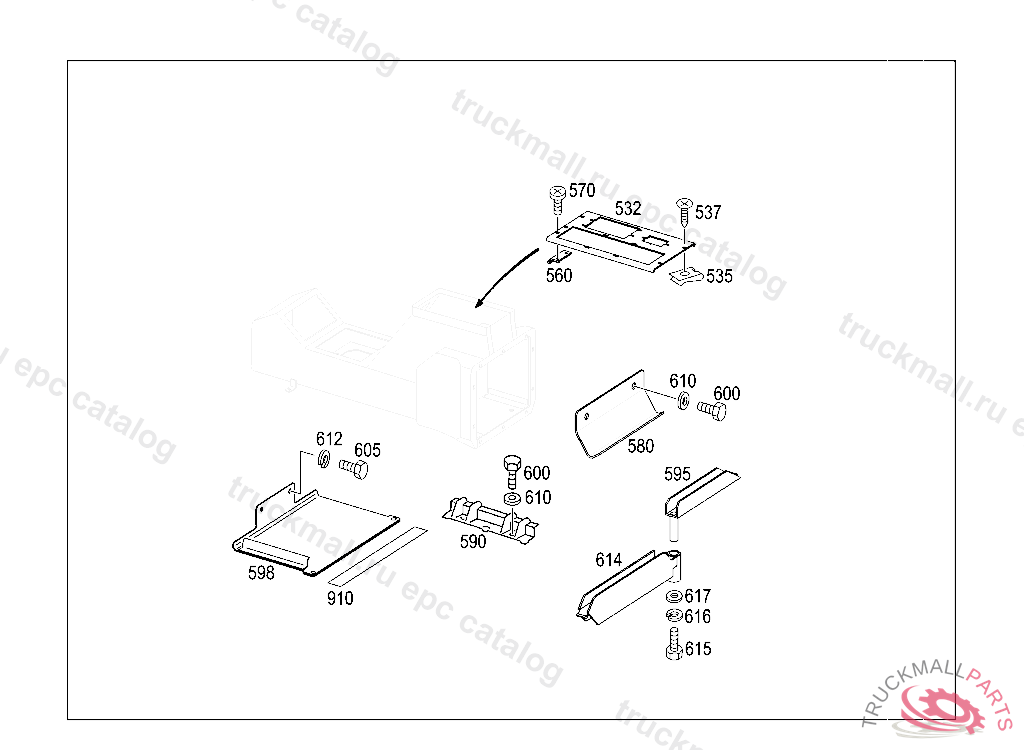

68 PANELLING - 250 CENTRAL CONSOLE IL. 1

Поз.
Артикул
Описание
532
A4616830123
PLATE FOR FUSE BOX PARCEL SHELF
535
A1409941045
LOCK FUEL LINE
537
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
560
A4616800012
ANGLE FOR FUSE BOX PARCEL SHELF
570
N000000002241
HEXALOBULAR BOLT MOUNTING PARTS M4X16
580
A4616831128
MOLDING FOR SWITCH HEATING, 9007QFT461A3000 BLACK
580
A4616804431
CONSOLE BATTERY MOUNTING
580
A4616894708
COVER HEATING
598
A4616804431
CONSOLE BATTERY MOUNTING
605
N304017006027
SCREW APPARATUS PLATE M 6X45
614
A4616800133
RETAINING BRACKET BATTERY FASTENING
615
N304017006016
SCREW PUMP TO BRACKET
616
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
616
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
617
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
910
A4636950053
MOUNTING STRIP LEFT AND RIGHT SIDE PANELING, TO BE ADAPTED DURING ASSEMBLY
