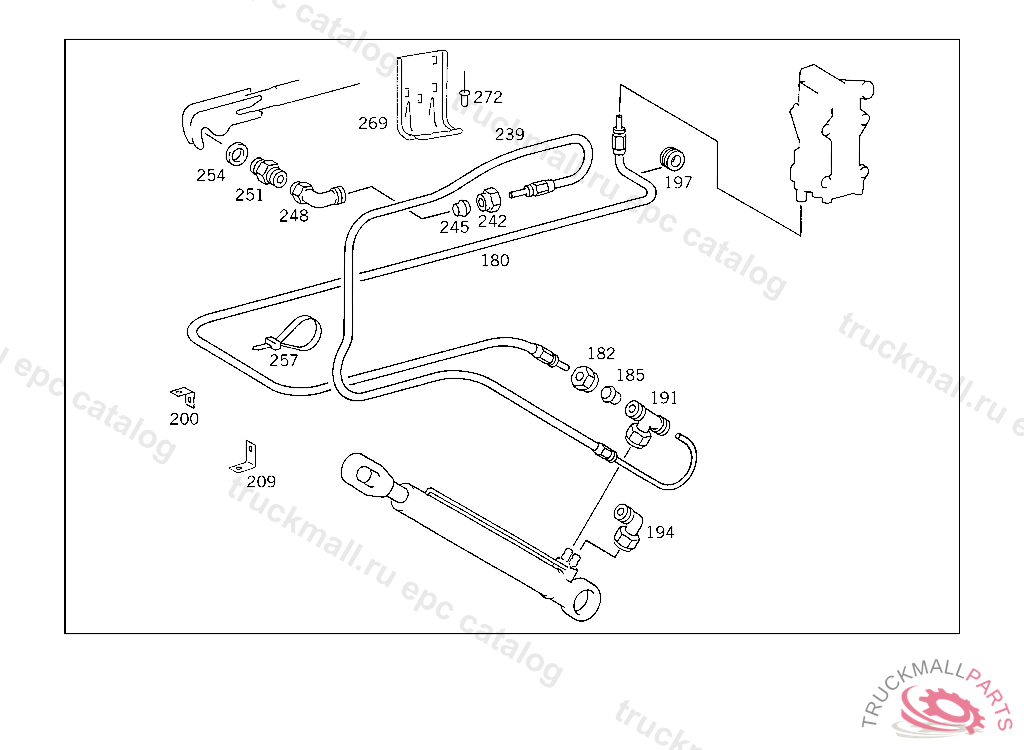

Поз.
Артикул
Описание
180
HOSE FROM CYLINDER TO PUMP
182
UNION NUT
185
GLAND , Replaced By: A0019901667
185
SEAL CONE
191
T-FITTING. FITTING AT INJECTION PUMP
194
FITTING FROM PUMP TO CYLINDER
194
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
194
FITTING , Replaced By: A0019909871
197
GROMMET HIGH PRESSURE HOSE THRU FRAME
200
BRACKET SENSOR CABLE TO FRONT AXLE
239
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
239
BRACKET BRACKET TO SPRING SADDLE
242
UNION NUT
245
GLAND , Replaced By: A0019901667
245
SEAL CONE
248
FITTING FROM PUMP TO CYLINDER
248
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
248
FITTING , Replaced By: A0019909871
251
FITTING 3/2-WAY VALVE,CONNECTION: "30"
254
SEAL RING PNEUMATIC VALVE
254
SEAL RING , Replaced By: N007603010110
257
LOOM TIE LINE MOUNTING
257
LOOM TIE LINE MOUNTING 280 MM
269
BRACKET HIGH PRESSURE HOSE TO CAB
272
RIVET , NOT USED
999
FITTINGWEBER,TO 001 553 35 05
