Поз.
Артикул
Описание

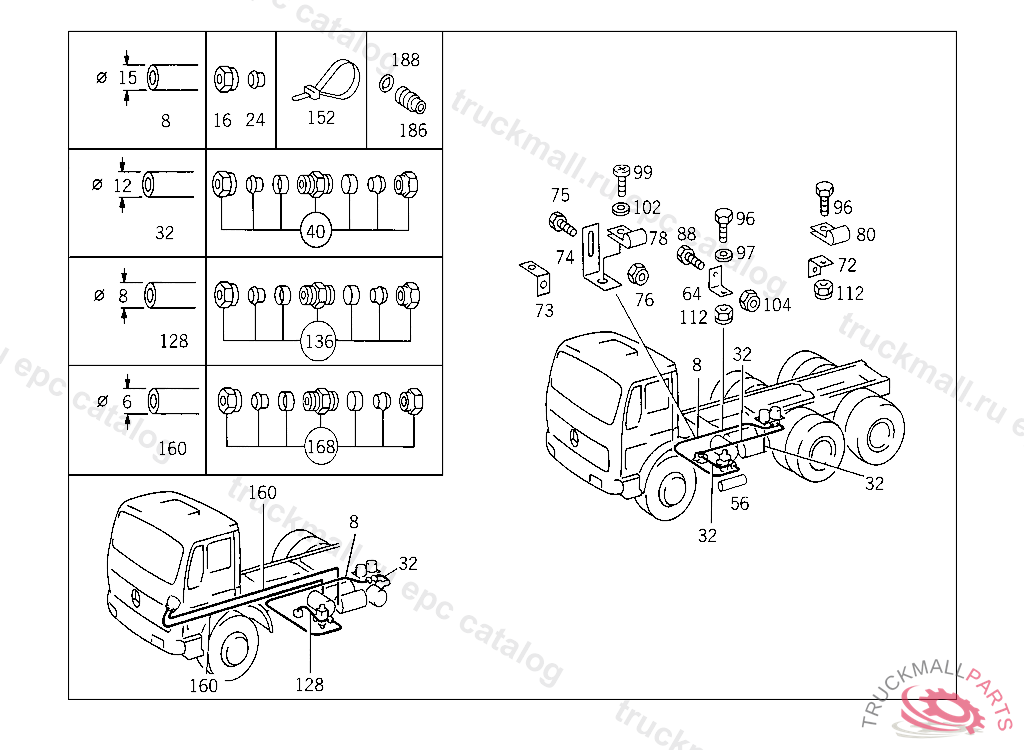

8
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
16
UNION NUT LINE CONNECTION
24
GLAND LINE CONNECTION
32
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
32
HOSE , Replaced By: A0009872827
40
FITTING (PARTS KIT),LINE RUPTURE
40
FITTING , Replaced By: A0029906171
56
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
56
INSULATING HOSE , ORDER BY THE METER
64
ANGLE LINE MOUNTING
72
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
72
BRACKET FUEL LINES TO TRANSMISSION
72
BRACKET COVERING
73
BRACKET CABLE HARNESS MOUNTING
74
BRACKET FUEL LINE TO BELL HOUSING
75
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
76
NUT STRAP TO BRACKET
76
NUT , Replaced By: N910113010000
78
CLAMP , Replaced By: A6739950001
78
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP DELIVERY AND SUCTION LINES TO STEERING
80
CLAMP , Replaced By: A6739950001
80
CLAMP LINE MOUNTING
88
SCREW , Replaced By: N304017008021
88
SCREW PIPE CLAMP
96
SCREW COVER PLATE TO BRACKET
96
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
96
SCREW CLAMP TO BRACKET
97
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
97
WASHER COMPRESSED AIR LINE TO BRACKET
99
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
99
SCREW CLAMP TO BRACKET
102
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
102
WASHER COMPRESSED AIR LINE TO BRACKET
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
NUT , Replaced By: N913004008001
112
NUT , Replaced By: N913004006001
112
NUT PUMP TO BRACKET
128
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
136
FITTING (PARTS KIT),LINE RUPTURE
136
FITTING , Replaced By: A0029905971
152
LOOM TIE LINE MOUNTING 280 MM
152
LOOM TIE LINE MOUNTING
160
PLASTIC PIPE RISING PIPE 4X6 MM
160
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
168
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
186
COUPLING HALF PIPE LINE TO CROSS MEMBER
188
SEALING CORD PIPE LINE TO CROSS MEMBER
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
FITTING , Replaced By: A0009907771
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
BATTERY SUPPORT
999
BRACKET , Replaced By: A6554318840
999
BRACKET , Replaced By: A6484320340
999
SUPPORT SERVICE BRAKE AIR RESERVOIR
999
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
999
BATTERY SUPPORT , Replaced By: A6205401916
999
BRACKET AIR DEHYDRATOR,5 433280
999
STRAP AIR RESERVOIR III,5 088362
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET AIR DEHYDRATOR,5 339169
999
STRAP AIR RESERVOIR
999
STRAP AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
999
STRAP FRONT AIR RESERVOIR,RIGHT
999
BRACKET AIR RESERVOIR TO FRAME
999
ELBOW FITTING CHECK VALVE TO RELAY VALVE
999
VALVE (OVERFLOW VALVE) GRAU
999
VALVE (OVERFLOW VALVE) WABCO
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
VALVE (PRESSURE LIMIT VALVE)
999
ELBOW FITTING , Replaced By: A0049906471
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
RESERVOIR , Replaced By: A0034321401
999
RESERVOIR , Replaced By: A0034322301
999
AIR DEHYDRATOR"WABCO",5 502947
999
REPAIR KIT PRESSURE LIMIT VALVE
999
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
AIR CLEANERBOSCH
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
