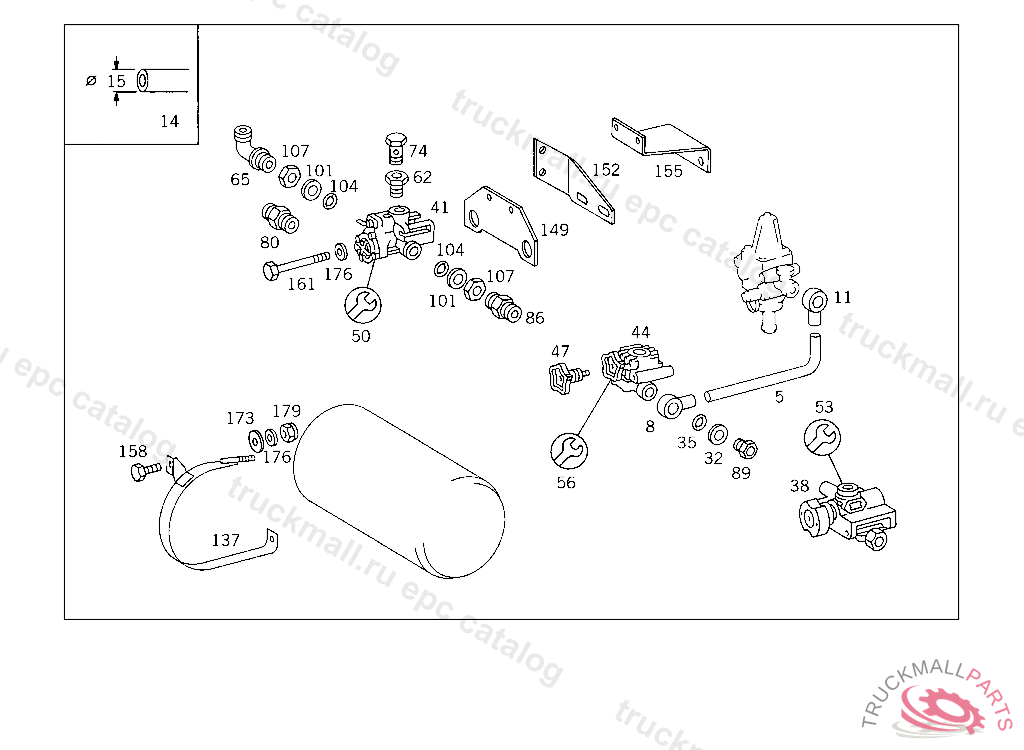

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
11
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
14
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
32
THRUST RING BUTT SCREW CONNECTION
35
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
35
SEAL RING , Replaced By: N007603012121
38
ANTI-FREEZE DEVICEWABCO
38
ANTI-FREEZE DEVICE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0004312915
38
ANTI-FREEZE DEVICEKNORR
41
ANTI-FREEZE DEVICEWABCO
41
ANTI-FREEZE DEVICEWABCO
44
ANTI-FREEZE DEVICEBOSCH
44
ANTI-FREEZE DEVICEBOSCH
47
HANDLETO 000 431 43 15/44 15
50
REPAIR KITTO 000 431 29 15/32 15
53
REPAIR KITTO 000 431 59 15/60 15
56
REPAIR KITTO 000 431 43 15
56
REPAIR KITTO 000 431 44 15
62
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
65
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
65
ELBOW FITTING ,5 433281
65
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
74
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
80
FITTING AIR RESERVOIR,CONNECTION: "13"
80
FITTING SHUTTLE VALVE,CONNECTION: "20"
80
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
86
BULKHEAD FITTING THROUGH SIDE MEMBER
89
FITTING AIR RESERVOIR,CONNECTION: "11"
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
NUT CHECK VALVE TO AIR RESERVOIR
137
STRAP , Replaced By: A6204300940
137
STRAP ANTI-FREEZE DEVICE
137
STRAP ANTI-FREEZE DEVICE
137
STRAP ANTI-FREEZE DEVICE
149
BRACKET ANTI-FREEZE DEVICE,6 900001-6 900006
152
BRACKET ANTI-FREEZE DEVICE
155
BRACKET ANTI-FREEZE DEVICE
158
SCREW , Replaced By: N304014008007
158
SCREW FRONT AXLE REGULATING SOLENOID VALVE
161
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
161
SCREW , Replaced By: N000933008134
161
SCREW FRONT AXLE REGULATING SOLENOID VALVE
173
WASHER ANTE-FREEZE DEVICE TO STRAP
173
WASHER , Replaced By: N009021008213
173
WASHER BRACKET TO LEFT SIDE MEMBER
176
WASHER , Replaced By: N000125008443
176
WASHER EXHAUST MUFFLER TO STRAP
179
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
179
NUT , Replaced By: N913004008001
999
FITTING , Replaced By: A0029905971
999
BRACKET FLUID RESERVOIR
999
BRACKET , Replaced By: A6164310840
999
BRACKET RESERVOIR,6 900001-6 900006
999
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
