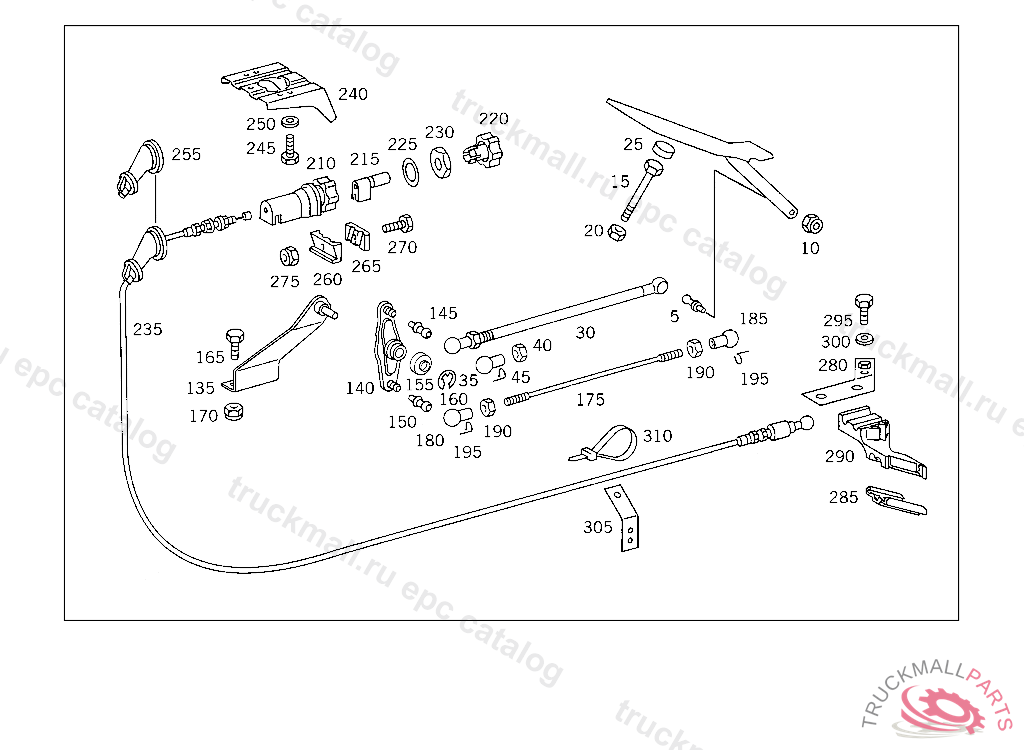

Поз.
Артикул
Описание
5
BALL PIVOT LOAD SENSOR
10
NUT PUMP TO BRACKET
10
NUT , Replaced By: N913004006001
15
SCREW VALVE TO BRACKET, Replaced By: N304014008002
15
SCREW VALVE TO BRACKET
20
NUT , Replaced By: N304032008006
20
NUT
25
STOP ACCELERATOR PEDAL
30
ROD LOAD SENSOR CONTROL
35
BALL SOCKET PULL ROD TO LEVER
40
NUT BALL PIVOT TO LEVER
45
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
135
BEARING BRACKET INTERMEDIATE BEARING
140
LEVER , Replaced By: A6153000628
140
LEVER INTERMEDIATE BEARING
145
BALL STUD. BALL PIVOT TOP B10X4,5 MM
150
BALL PIVOT BOTTOM B13X5 MM
155
COVERING INTERMEDIATE BEARING
160
LOCK PLATE INTERMEDIATE BEARING
165
SCREW END PIECE TO EXHAUST PIPE M 10X25
170
NUT STRAP TO BRACKET
170
NUT , Replaced By: N910113010000
175
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
180
BALL SOCKET ROD TO BALL PIVOT
185
BALL SOCKET ROD TO BALL PIVOT
190
NUT , Replaced By: N304032008006
190
NUT
195
SECURING CLIP. CIRCLIP
210
MANUAL CONTROL IDLING ADJUSTMENT
215
GUIDE MANUAL CONTROL
220
KNOB MANUAL CONTROL
225
FITTED WASHER MANUAL CONTROL
230
NUT MANUAL CONTROL
235
WIRE CABLE IDLING ADJUSTMENT
240
BRACKET
245
SCREW , Replaced By: N304017006018
245
SCREW COVER PLATE TO COVER PLATE M 6 X 12
250
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
250
WASHER COMPRESSED AIR LINE TO BRACKET
255
GROMMET WIRE CABLE THRU WINDOW SILL
260
CLAMPING PIECE WIRE CABLE TO FIRE WALL
265
CLAMPING PIECE CABLE PULL TO FIRE WALL
270
SCREW CONNECTOR
275
NUT PUMP TO BRACKET
275
NUT , Replaced By: N913004006001
280
BRACKET CABLE TO RADIATOR MOUNTING
285
COVER CABLE TO BRACKET
290
CLAMPING PIECE CABLE TO BRACKET
295
SCREW CAB FLOOR COVERING M 6X25
300
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
300
WASHER COMPRESSED AIR LINE TO BRACKET
305
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET, TO BE ADAPTED DURING ASSEMBLY
310
LOOM TIE LINE MOUNTING 280 MM
