Поз.
Артикул
Описание

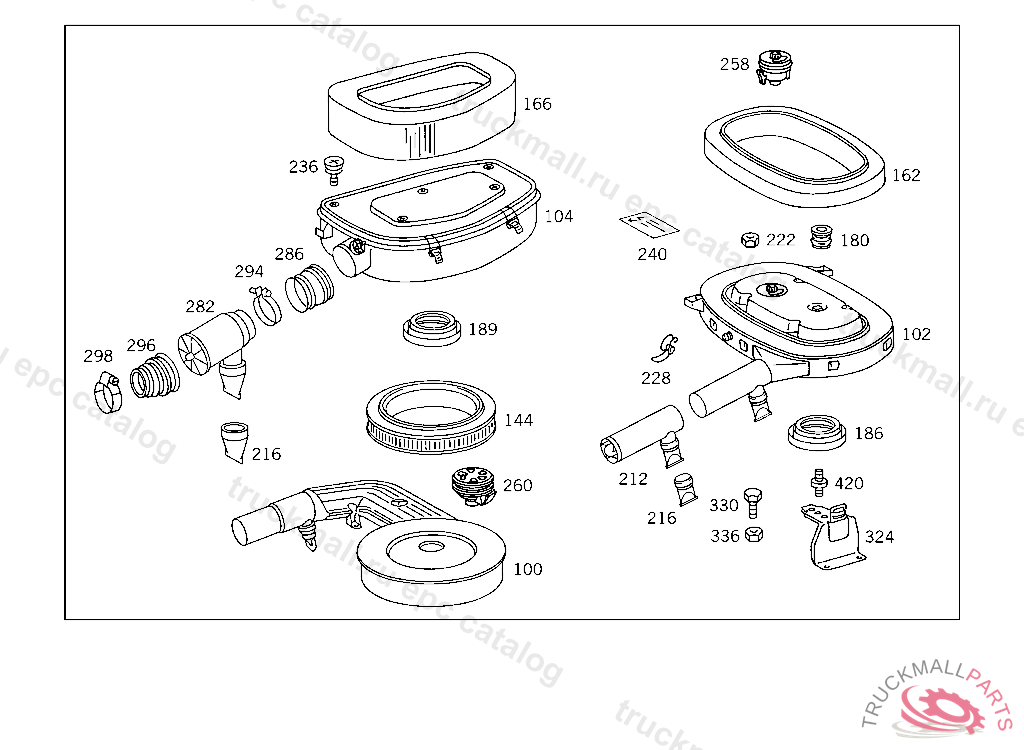

100
AIR CLEANERMANN & HUMMEL
102
AIR CLEANERKNECHT
102
AIR CLEANERKNECHT
102
AIR CLEANER , 102.982 10/50,20/60 106104 102.982 12/52,22/62 013067 102.963 10/50,20/60 000001 102.963 12/52,22/62 000001
102
AIR CLEANERKNECHT
102
AIR CLEANER , Replaced By: A0150948802
102
AIR CLEANER , Replaced By: A0160946802
102
AIR CLEANER , Replaced By: A0160946902
104
AIR CLEANERKNECHT
144
FILTER ELEMENT
162
FILTER ELEMENTTO 015 094 95 02,016 094 68 02, 102.982 10/50,20/60 106104 102.982 12/52,22/62 013067 102.963 10/50,20/60 000001 102.963 12/52,22/62 000001
162
FILTER ELEMENT , Replaced By: A0030945804
162
FILTER ELEMENTKNECHT
166
FILTER ELEMENT
180
GASKET
186
SEAL RING
186
GASKET , Replaced By: A1020940060
189
SEAL RING
212
INTAKE PIPETO 015 094 95 02,016 094 68 02
216
VALVE (DUST DISCHARGE VALVE)
216
VALVE ON AIR CLEANER
222
NUT OIL TANK TO BRACKET
222
NUT , Replaced By: N913002006009
228
FASTENER , Replaced By: A0000941355
228
FASTENER , Replaced By: A0000941255
228
FASTENER
228
FASTENER
228
FASTENER AIR CLEANER BOWL MANN & HUMMEL
228
FASTENERTO 015 094 95 02,016 094 68 02, 102.982 10/50,20/60 106104 102.982 12/52,22/62 013067 102.963 10/50,20/60 000001 102.963 12/52,22/62 000001
228
FASTENER
228
FASTENER
228
FASTENER
236
SCREW COVER TO AIR CLEANER
240
WARNING SIGN. WARNING STRIP "DANGER!HIGH TENSION!", IN GERMAN,ENGLISH,AND FRENCH,V 207570
240
GUIDE SIGN , Replaced By: A2105840047
258
MAINTENANCE INDICATOR
258
MAINTENANCE INDICATOR
260
MAINTENANCE INDICATOR
260
MAINTENANCE INDICATOR
282
SEPARATOR
286
HOSE CYCLONE PRE-SEPARATOR TO AIR CLEANER
294
CLAMP BOOT TO STEERING,V 207570
294
CLAMP HOSE TO CYCLONE PRE-SEPARATOR
294
CLAMP
294
CLAMP , Replaced By: A0069970890
294
CLAMP , WITH BOOT
296
HOSE
298
CLAMP
324
BRACKET AIR CLEANER
330
SCREW PUMP TO BRACKET
330
SCREW , Replaced By: N304017006016
336
NUT BALL PIVOT TO LEVER
420
BUFFER HEATER UNIT
999
CAP
999
REGULATOR
999
INTAKE PIPE
999
MAINTENANCE INDICATOR
999
SPRING
999
SENDER UNIT AIR CLEANER INTAKE PIPE
999
HOSE COVERING AND MUFFLER FILTER
999
HOSE
999
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
999
SCOOP
999
HOSE
999
HOSE
999
HOSE BETWEEN MUFFLER FILTER AND LATERAL COVERING
999
HOSE
999
HOSE COVERING AND MUFFLER FILTER
999
HOSE FROM AIR CLEANER TO PIPE ELBOW, ORDER BY THE METER
999
HOSE COVERING AND MUFFLER FILTER
999
BRACKET AIR CLEANER
999
RIVET
999
HOSE
999
HOSE
999
HOSE
999
HOSE
999
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
999
BOOT SCOOP TO AIR CLEANER
999
BOOT
999
BRACKET AIR CLEANER
999
SCREW , Replaced By: N304017006016
999
COMBINATION BOLT BRACKET TO INTAKE MANIFOLD
