Поз.
Артикул
Описание
5

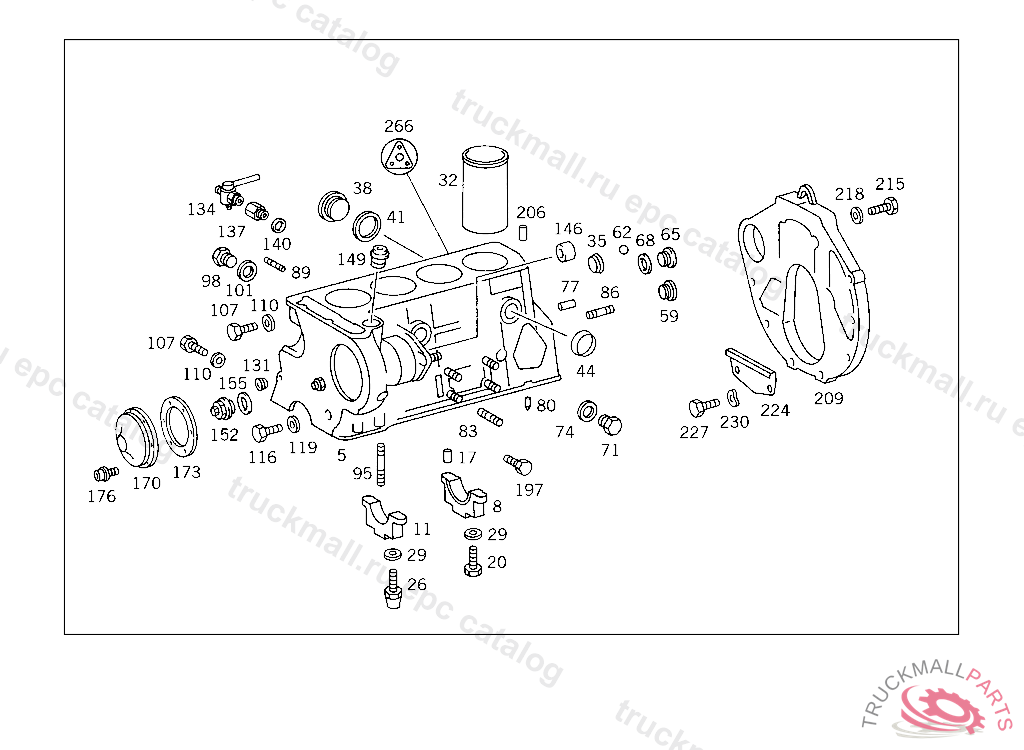

CRANKCASE
8
CRANKSHAFT BEARING CAP LAPPED BEARING, 912 10/50,20/60 073576 912 12/52,22/62 067786919 000104
11
CRANKSHAFT BEARING CAP
17
CYLINDRICAL PIN
17
CYLINDRICAL PIN
20
SCREW , Replaced By: A0029903804
26
SCREW
32
CYLINDER LINER
32
CYLINDER LINER , Replaced By: A6160111210
32
CYLINDER LINER , Replaced By: A6160111210
38
SCREW PLUG
44
CAP TO PLUG CORE HOLES 34.2
44
EXPANSION PLUG TO PLUG CORE HOLES 34.2, Replaced By: N000000004057
62
BALL TO PLUG OIL PASSAGE, FRONT
71
SCREW PLUG HEATING PIPE,6112368 0000014 375862
74
SEAL RING SCREW PLUG
77
DOWEL PIN DIA. 12 X 20. DOWEL PIN INTERMEDIATE FLANGE TO CYLINDER CRANKCASE
80
SAFETY PIN. PIN ,A 003512
83
STUD BOLTM 10X45
83
STUD BOLT CONTROL BLOCK M 10X35
83
STUD BOLT EXHAUST MANIFOLD TO CYLINDER HEAD M 10X25
86
STUD BOLT COVER TO CASE
89
STUD BOLT CONTROL BLOCK M 10X35
89
STUD BOLTM 10X45
95
STUD BOLT COVER TO CASE
98
SCREW PLUG FUEL TANK
98
SCREW PLUG , Replaced By: N007604014110
101
SEAL RING BRAKE LINE TO BRAKE MASTER CYLINDER, ONLY ON INSTALLATION OF DIAPHRAGM CYLINDER OF MAKE "WESTINGHOUSE"
116
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
119
SEAL RING AT OPERATING VALVE
131
SCREW PLUG TOP AND BOTTOM
131
SCREW PLUG STABILIZER
146
BUSHING INTERMEDIATE GEAR SHAFT, REAR
149
BEARING OIL PUMP DRIVE
206
CYLINDRICAL PIN
209
FLANGE
215
SCREW BRACKET TO SIDE MEMBER
218
WASHER RADIATOR TO RUBBER MOUNTING
218
WASHER , Replaced By: N000125010532
224
PROTECTIVE PLATE
227
SCREW COVER PLATE TO COVER PLATE M 6 X 12
227
SCREW , Replaced By: N304017006018
266
GASKET KIT , Replaced By: A6160105506
266
GASKET KIT CYLINDER CRANKCASE
999
OIL NOZZLE OIL PASSAGE,FRONT, NOT AVAILABLE,INSTAED 000906 018000
999
FITTING OIL PASSAGE,FRONT, NOT AVAILABLE,INSTAED 000906 018000
999
HOLLOW SCREW OIL PASSAGE,FRONT, NOT AVAILABLE,INSTAED 000906 018000
