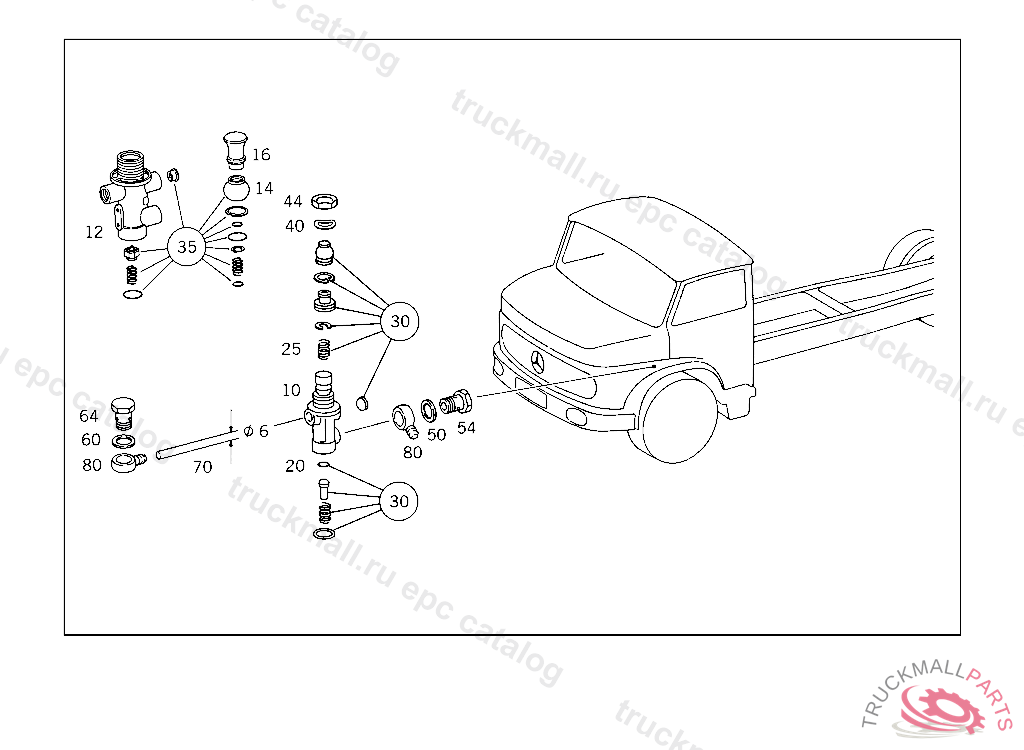

Поз.
Артикул
Описание
10
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH, OPTIONAL WITH 000 434 08 01
12
VALVE"WESTINGHOUSE"
14
CUP 3/2-WAY VALVE WABCO
16
HANDLETO 000 434 24 01
20
SEAL RINGTO 000 434 21 01
25
SPRINGTO 000 434 21 01
30
REPAIR KITTO 000 434 11 01
35
REPAIR KIT 3/2-WAY VALVE WABCO
40
SPRING WASHER AT CAB FLOOR
44
NUT SUCTION LINE TO OIL PUMP
50
SEAL RING LINE CONNECTION
54
HOLLOW SCREW HEATING CONNECTION
60
SEAL RING LINE CONNECTION
64
HOLLOW SCREW HEATING CONNECTION
70
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
70
PLASTIC PIPE RISING PIPE 4X6 MM
80
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
