Поз.
Артикул
Описание

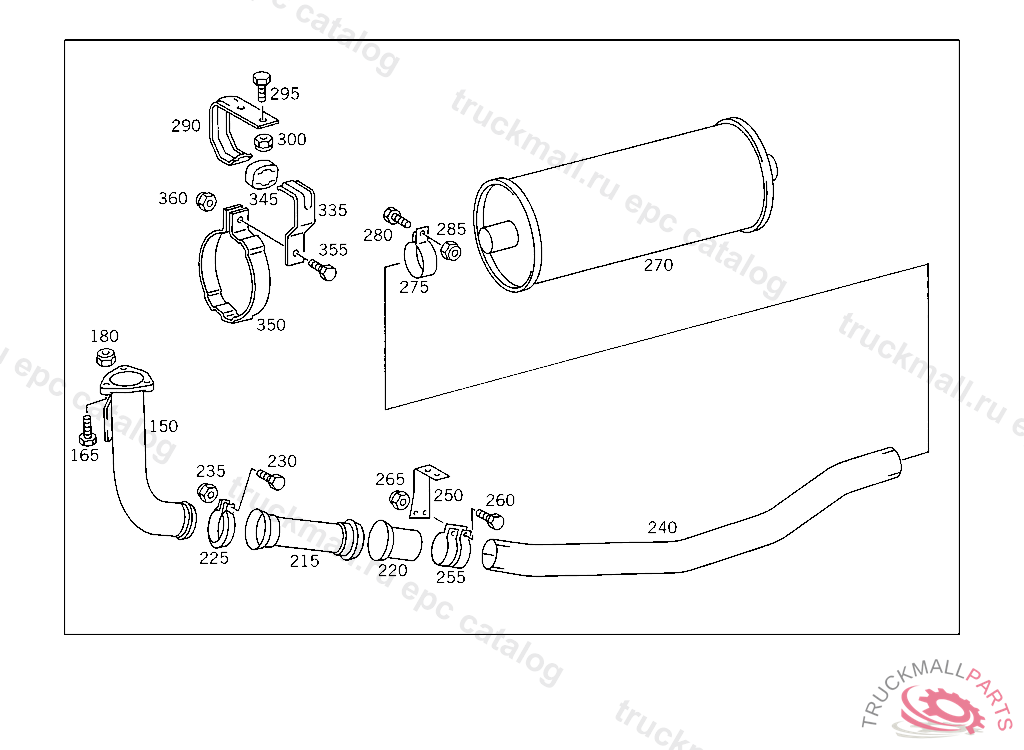

150
CONNECTOR FRONT,FRONT PART
165
SCREW CONNECTOR TO EXHAUST MANIFOLD
165
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
180
NUT CONNECTOR TO EXHAUST MANIFOLD
215
FLEXIBLE METAL TUBE CONNECTOR
215
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
220
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
220
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
225
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
225
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
230
SCREW , Replaced By: N304017008028
230
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
235
NUT , Replaced By: N913004008001
235
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
EXHAUST PIPE FRONT
240
EXHAUST PIPE FRONT,REAR PART
240
EXHAUST PIPE FRONT,REAR PART,5 308040
255
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
255
CLAMP AT CROSS MEMBER
260
SCREW , Replaced By: N304017010002
260
SCREW BRACKET TO SIDE MEMBER
265
NUT , Replaced By: N910113010000
265
NUT STRAP TO BRACKET
270
EXHAUST MUFFLER
275
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
275
CLAMP , Replaced By: N071555094502
275
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
280
SCREW , Replaced By: N304017010002
280
SCREW BRACKET TO SIDE MEMBER
285
NUT , Replaced By: N910113010000
285
NUT STRAP TO BRACKET
290
SUPPORT FRONT EXHAUST MUFFLER
290
SUPPORT FRONT EXHAUST MUFFLER
295
SCREW , Replaced By: N304017012022
295
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
300
NUT SUPPORT TO SIDE MEMBER
335
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
345
DAMPING PAD PARTICLE FILTER
350
CLAMP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
355
SCREW EXHAUST PIPE TO BRACKET
360
NUT , Replaced By: N910113010000
360
NUT STRAP TO BRACKET
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: A4609900601
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET , Replaced By: A6764901040
999
BRACKET FRONT EXHAUST PIPE,5 502998
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
BRACKET , Replaced By: A3604923541
999
SCREW EXHAUST PIPE TO BRACKET
999
THROTTLE HOUSING , Replaced By: A3661402253
999
CYLINDER , Replaced By: A0004303026
999
CYLINDER , Replaced By: A0004304926
999
CYLINDER
