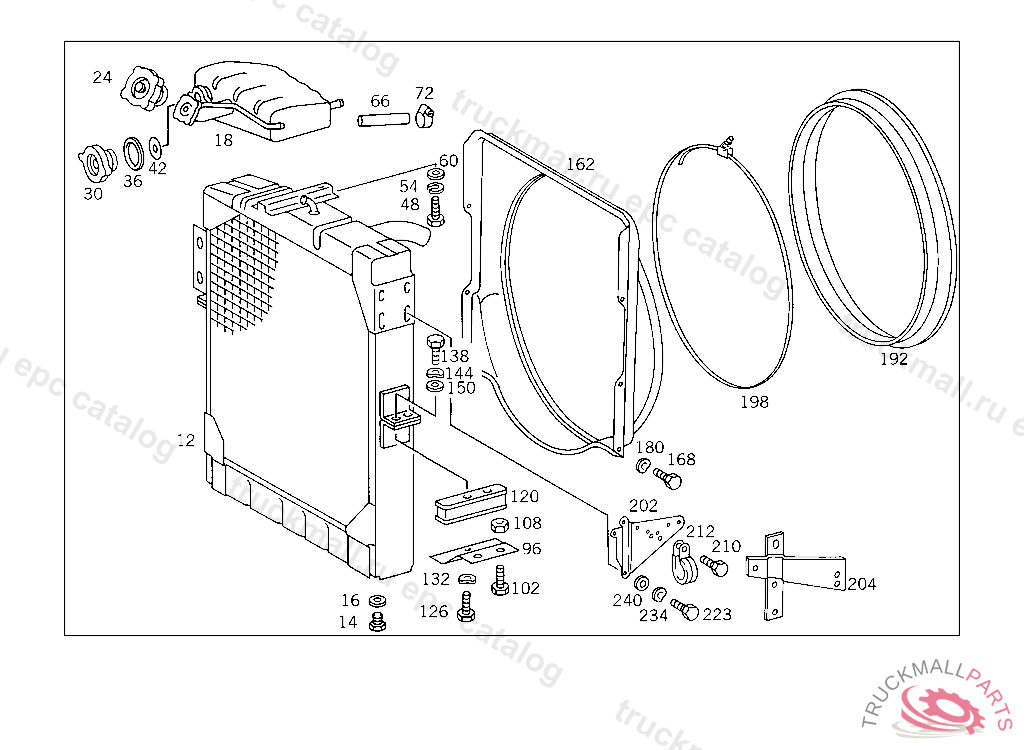

Поз.
Артикул
Описание
12
RADIATORBEHR,5 127464
12
RADIATOR WATER BEHR
14
SCREW PLUG WATER DRAIN
16
SEAL RING FUEL LINE TO FEED PUMP
18
TANK COOLING WATER EXPANSION
24
RADIATOR CAP FILLER NECK
24
RADIATOR CAP FILLER NECK
30
RADIATOR CAP CENTRAL
30
RADIATOR CAP CENTRAL
36
GASKET O.D., 52 MM
42
GASKET O.D., 37 MM
48
SCREW , Replaced By: N304017008016
48
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
WASHER , Replaced By: N000125008443
60
WASHER EXHAUST MUFFLER TO STRAP
66
HOSE OVERFLOW, EXPANSION TANK
72
CLAMP , Replaced By: N916017011001
72
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
96
SUPPORT RADIATOR
96
SUPPORT LEFT
96
SUPPORT RIGHT
102
SCREW , Replaced By: N308676012026
102
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
108
NUT SUPPORT TO SIDE MEMBER
120
RUBBER MOUNTING RADIATOR,5 127464
120
RUBBER MOUNTING RADIATOR
126
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
132
SPRING WASHER STEERING COLUMN BRACKET TO CAB
138
SCREW END PIECE TO EXHAUST PIPE M 10X25
144
SPRING WASHER STEERING COLUMN BRACKET TO CAB
150
WASHER , Replaced By: N000125010532
150
WASHER RADIATOR TO RUBBER MOUNTING
162
FAN SHROUD RADIATOR
168
SCREW , Replaced By: N304017006016
168
SCREW PUMP TO BRACKET
168
SCREW , Replaced By: N304017006034
168
SCREW COVER PLATE TO COVER PLATE M 6 X 10
168
SCREW , Replaced By: N304017006018
168
SCREW COVER PLATE TO COVER PLATE M 6 X 12
180
SPRING WASHER LICENSE PLATE TO BRACKET
192
BOOT FAN SHROUD
198
CLAMP BOOT TO FAN SHROUD
204
BRACKET OI DIPSTICK GUIDE TUBE
204
BRACKET OIL DIPSTICK TO RADIATOR
210
SCREW , Replaced By: N304017008016
210
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
212
CLAMP OIL DIPSTICK TO RADIATOR
223
SCREW COVER PLATE TO BRACKET
223
SCREW , Replaced By: N304017006016
223
SCREW PUMP TO BRACKET
234
SPRING WASHER LICENSE PLATE TO BRACKET
240
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6175015482
999
BRACKET HOSE TO RADIATOR AND TO WATER PUMP,5 422032
999
HOSE , Replaced By: A6845010882
999
RADIATOR , Replaced By: A0015015501
999
HOSE , Replaced By: A0020941882
999
CLAMP , Replaced By: N916017011000
