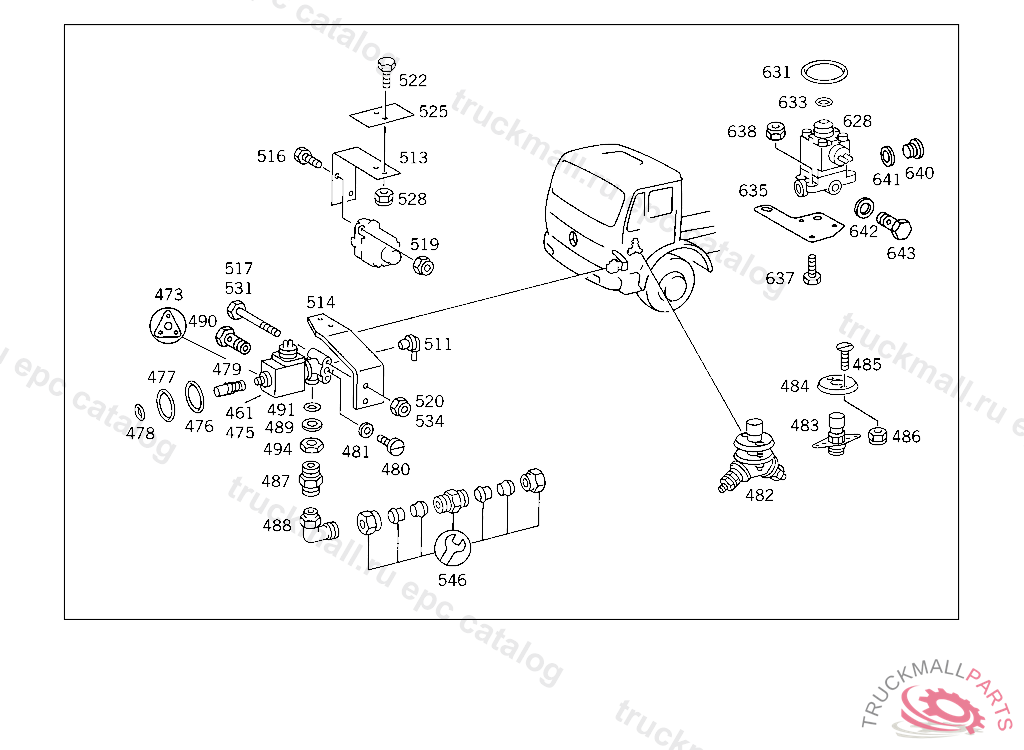

Поз.
Артикул
Описание
461
VALVE (3/2-WAY SOLENOID VALVE) EKS
461
VALVE (3/2-WAY SOLENOID VALVE) WABCO
461
VALVE (SOLENOID VALVE)
461
VALVE , Replaced By: A0049975736
461
VALVE (3/2-WAY SOLENOID VALVE) KNORR
473
GASKET KITKNORR
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
476
SEAL RINGWABCO
476
SEAL RINGWABCO
476
SEAL RINGWABCO
476
SEAL RINGWABCO
477
SEAL RINGWABCO
477
SEAL RING , Replaced By: A0019975945
478
SEAL RINGWABCO
479
VALVE PART
480
SCREW TO PLUG THE FREE CONNECTIONS
481
SEAL RINGBOSCH
482
SWITCH (FOOT-OPERATED SWITCH),5 220372
483
SWITCH (FOOT-OPERATED SWITCH),5 220373
484
BRACKET SWITCH TO FLOOR PLATE,5 220373
485
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
486
NUT PUMP TO BRACKET
486
NUT , Replaced By: N913004006001
487
FITTING LINE CONNECTION, Replaced By: N000000006446
487
FITTING LINE CONNECTION
488
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
489
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
489
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
490
HOLLOW SCREW LINE CONNECTION
491
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
491
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
491
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
494
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
511
BREATHER , Replaced By: A3933280065
511
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
511
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
511
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
511
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
511
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
513
BRACKET 3/2-WAY VALVE,5 198435
514
BRACKET SOLENOID VALVE
514
BRACKET SOLENOID VALVE
514
BRACKET SOLENOID VALVE
516
SCREW 3/2-WAY VALVE TO BRACKET
517
SCREW VALVE TO BRACKET M 8X55
517
SCREW VALVE TO BRACKET M 8X55
517
SCREW , Replaced By: N304017008043
519
NUT , Replaced By: N913004006001
519
NUT PUMP TO BRACKET
519
NUT PUMP TO BRACKET
520
NUT , Replaced By: N913004008001
520
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
520
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
522
SCREW , Replaced By: N000933006151
522
SCREW DISTRIBUTOR TO CAB
525
REINFORCEMENT DISTRIBUTOR TO CAB
528
NUT PUMP TO BRACKET
528
NUT , Replaced By: N913004006001
531
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
534
NUT , Replaced By: N913004008001
534
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
546
FITTING , Replaced By: A0029905971
546
FITTING (PARTS KIT),LINE RUPTURE
628
VALVE (3/2-WAY SOLENOID VALVE) "WABCO"
631
SEAL RING25X1.5 MM
633
SEAL RING5.5X1.5 MM
635
BRACKET REGULATING SOLENOID VALVE,5 953054
637
SCREW 3/2-WAY VALVE TO BRACKET
638
NUT PUMP TO BRACKET
638
NUT , Replaced By: N913004006001
640
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
640
SCREW PLUG , Replaced By: N000908012009
641
SEAL RING LINE CONNECTION
641
SEAL RING LINE CONNECTION
642
SEAL RING LINE CONNECTION
643
HOLLOW SCREW HEATING CONNECTION
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING , Replaced By: A0069970072
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296934
999
VALVE PART , Replaced By: A0029971236
999
TEST CONNECTION
999
ABS ELECTRONICS , Replaced By: A0004461114
999
CROSS FITTING AIR RESERVOIRS I AND II,4 821954 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONTROL UNIT , Replaced By: A0025454932
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 042987, Replaced By: A0035452832
999
VALVE
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 186367 IN CASE OF "C" ELECTRONICS WITH ASR, EXCHANGE 006 545 27 32 FOR 013 545 05 32, Replaced By: A0045458432
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR
999
BRACKET RELAY VALVE, NOT USED
999
BRACKET SENSOR CABLE
999
PROTECTIVE PLATE , Replaced By: A6244210120
999
PROTECTIVE PLATE FRONT AXLE TWO-WAY VALVE
999
BRACKET LEFT SIDE MEMBER
999
BRACKET RIGHT SIDE MEMBER
999
BRACKET LOAD/NO-LOAD VALVE
999
FITTING , Replaced By: A0009905070
