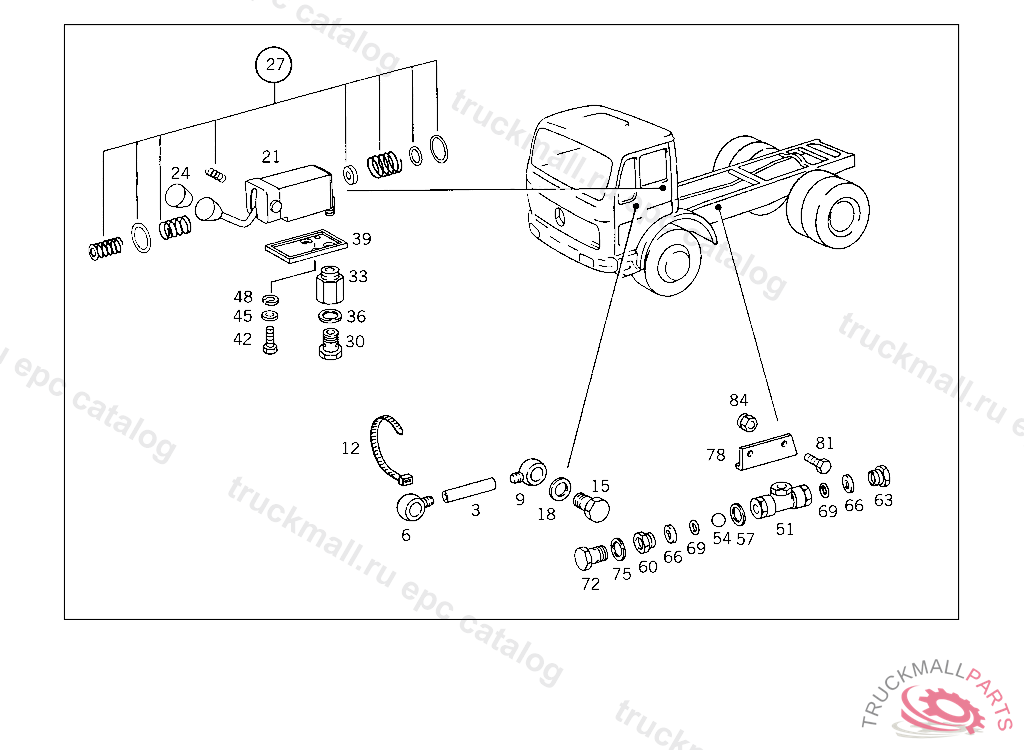

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
6
BANJO UNION HEATING CONNECTION,K 169122
9
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
12
LOOM TIE LINE MOUNTING 280 MM
15
HOLLOW SCREW HEATING CONNECTION
18
SEAL RING LINE CONNECTION
21
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034301781
24
HANDLETO 000 430 78 71
27
REPAIR KIT , Replaced By: A0014308760
27
REPAIR KIT , Replaced By: A0014300760
27
REPAIR KIT , Replaced By: A0034305381
27
REPAIR KIT EXTENSIBLE BRAKE VALVE
30
HOLLOW SCREW FUEL LINE TO FEED PUMP
30
HOLLOW SCREW , Replaced By: N915036010108
33
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
36
SEAL RING FUEL LINE TO FEED PUMP
39
SHIM HAND BRAKE VALVE
42
SCREW LICENSE PLATE TO BRACKET
42
SCREW , Replaced By: N304017006020
45
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
45
WASHER COMPRESSED AIR LINE TO BRACKET
48
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
51
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
51
VALVE TWO-WAY VOSS
54
BALLTO 003 429 22 44
57
GASKETTO 003 429 22 44
60
FITTING AIR RESERVOIR,CONNECTION: "11"
63
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
66
THRUST RING CHECK VALVE TO AIR RESERVOIR
66
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
69
O-RING CHECK VALVE TO AIR RESERVOIR
72
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "1.1""1.2" U."2"
75
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
78
BRACKET (REAR CROSS MEMBER)
78
BRACKET , Replaced By: A3854290840
81
SCREW , Replaced By: N304017008034
84
NUT , Replaced By: N913004008001
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
84
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
HOLLOW SCREW FUEL LINE TO FUEL TANK
999
SPACER TUBE , Replaced By: A3124231453
999
SPACER TUBE AT BRAKE VALVE, NOT USED
999
VALVE BODYTO 002 429 95 44
999
VALVE , Replaced By: A0004291182
999
VALVE , Replaced By: A0004290782
